Rheostat Switch Check

  1. Connect the battery and the test bulb (40W) as shown in the illustration.
  2. Operate the rheostat, and if brightness changes smoothly without switching off, rheostat function is normal.

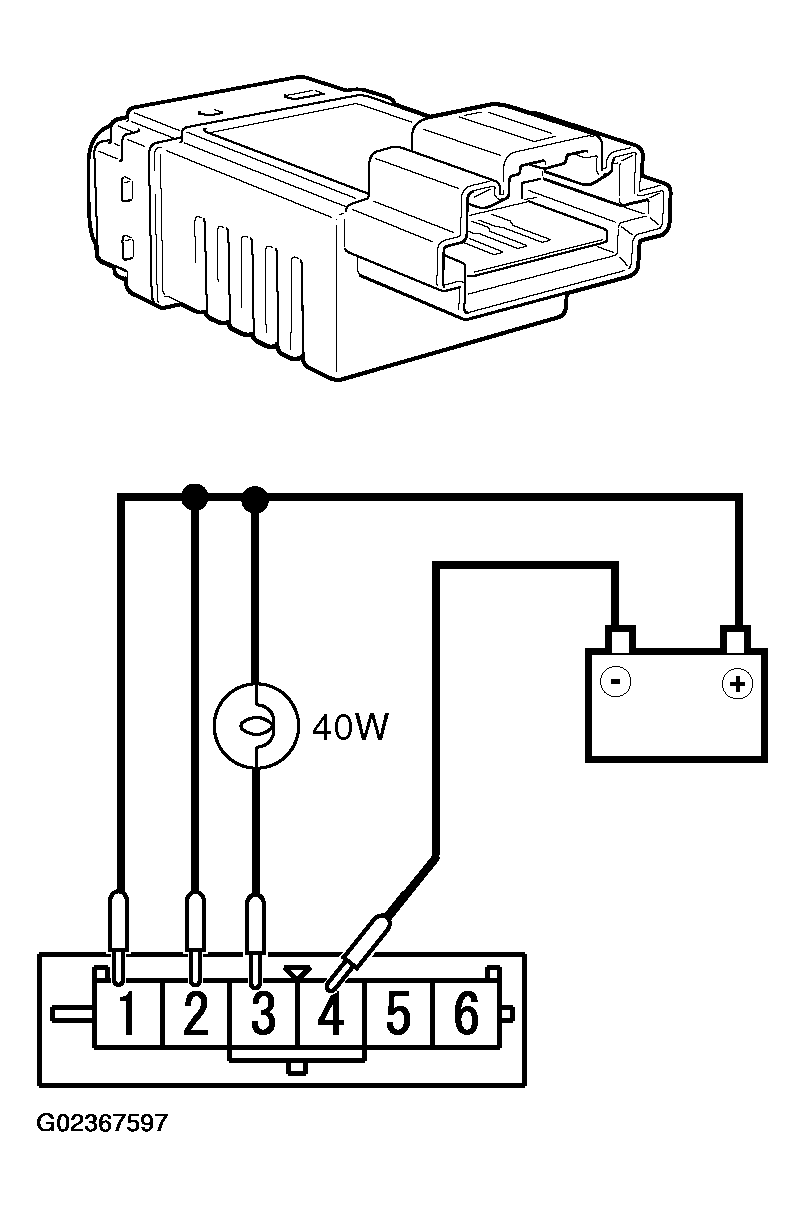

    Fig 1: Checking Rheostat Switch
    G02367597Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
