INSPECTION PROCEDURE 7: No Sound from One Speaker. < Vehicles with Seven Speakers >: Notes

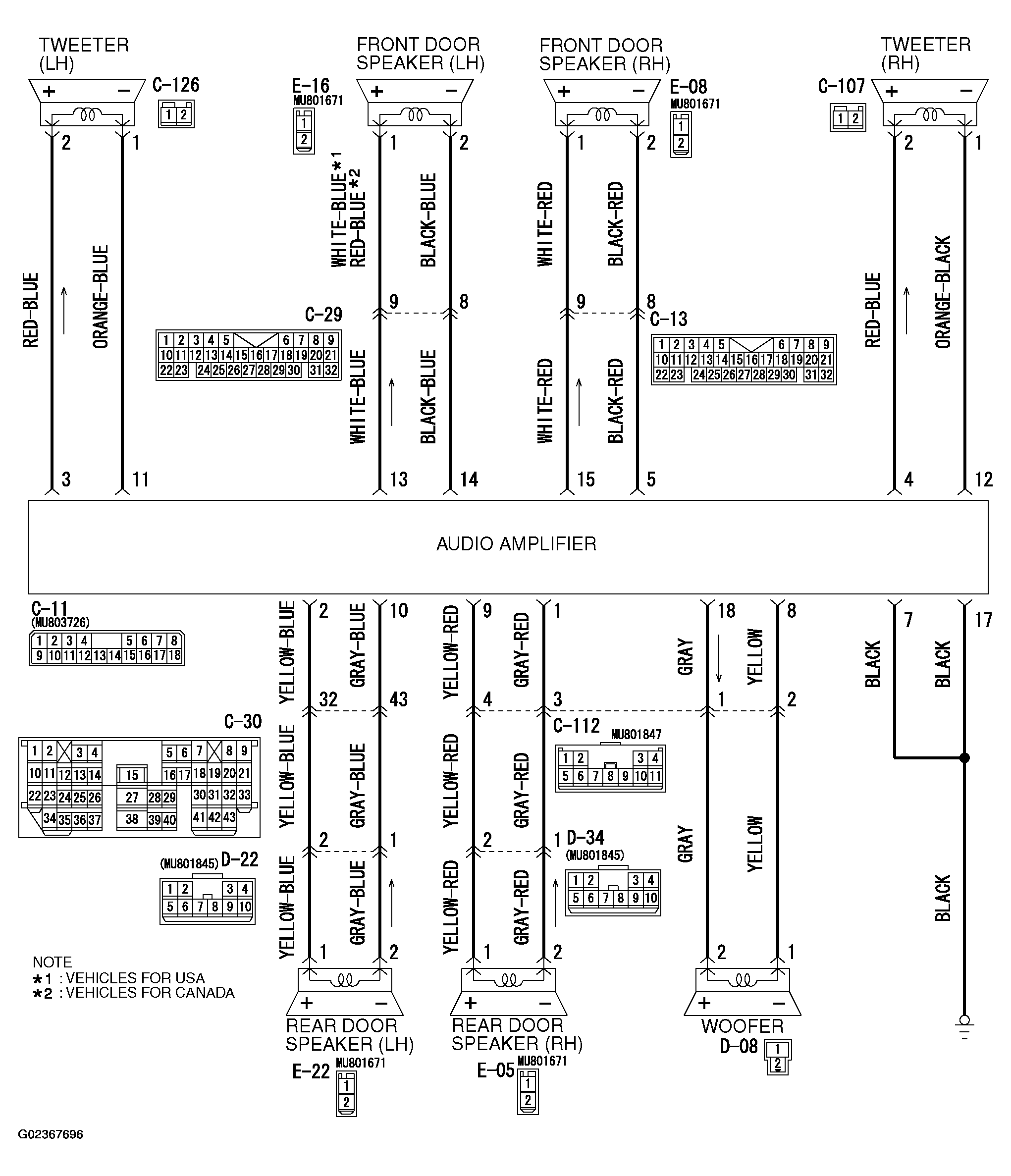

Fig 1: Speaker System (Vehicles With Seven Speakers) Circuit Diagram & Connector Identification (1 Of 2)
G02367696Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

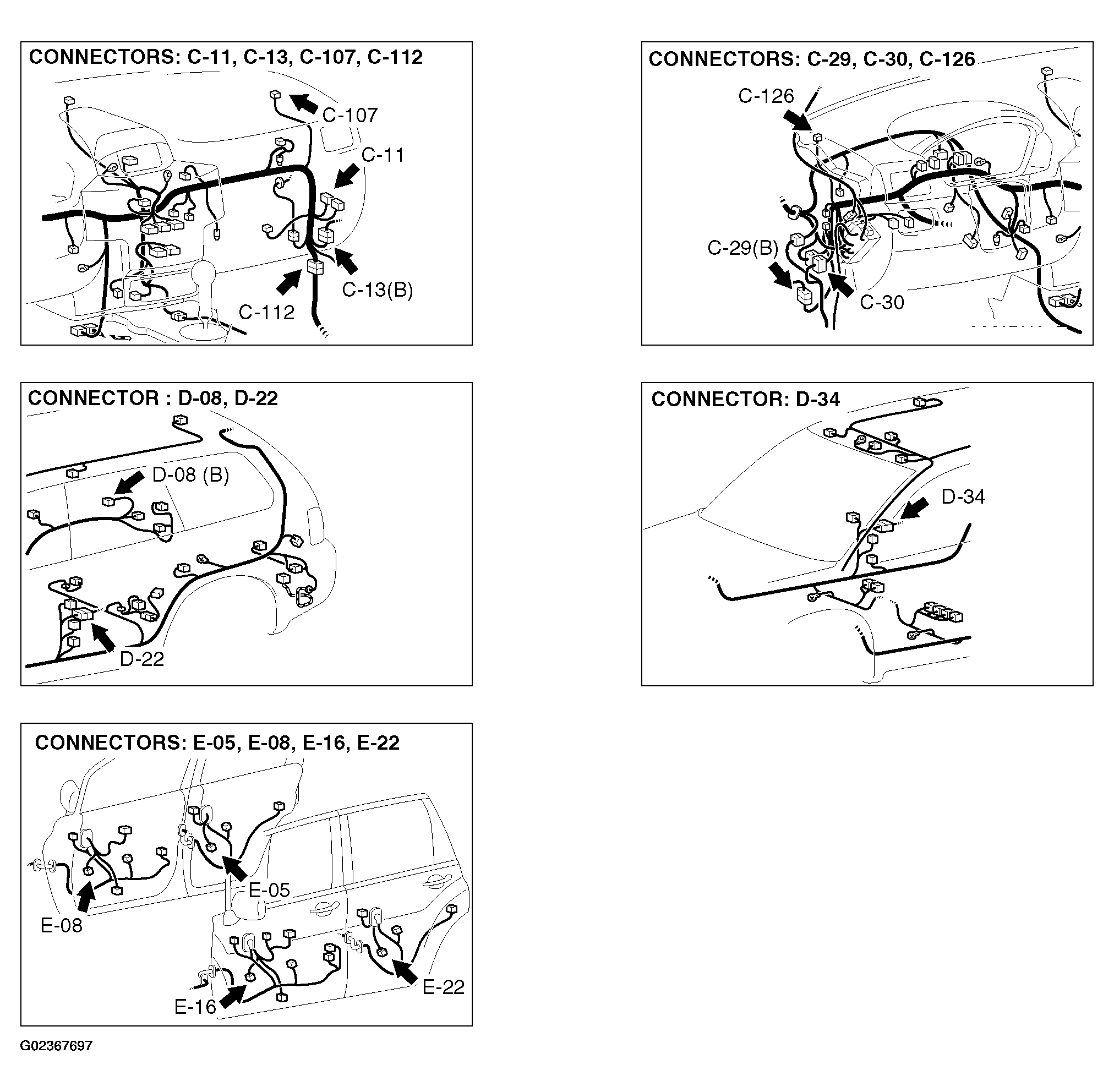

Fig 2: Speaker System (Vehicles With Seven Speakers) Circuit Diagram & Connector Identification (2 Of 2)
G02367697Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
