INSPECTION PROCEDURE 6: No Sound from One Speaker. < Vehicles with Six Speakers >: Notes

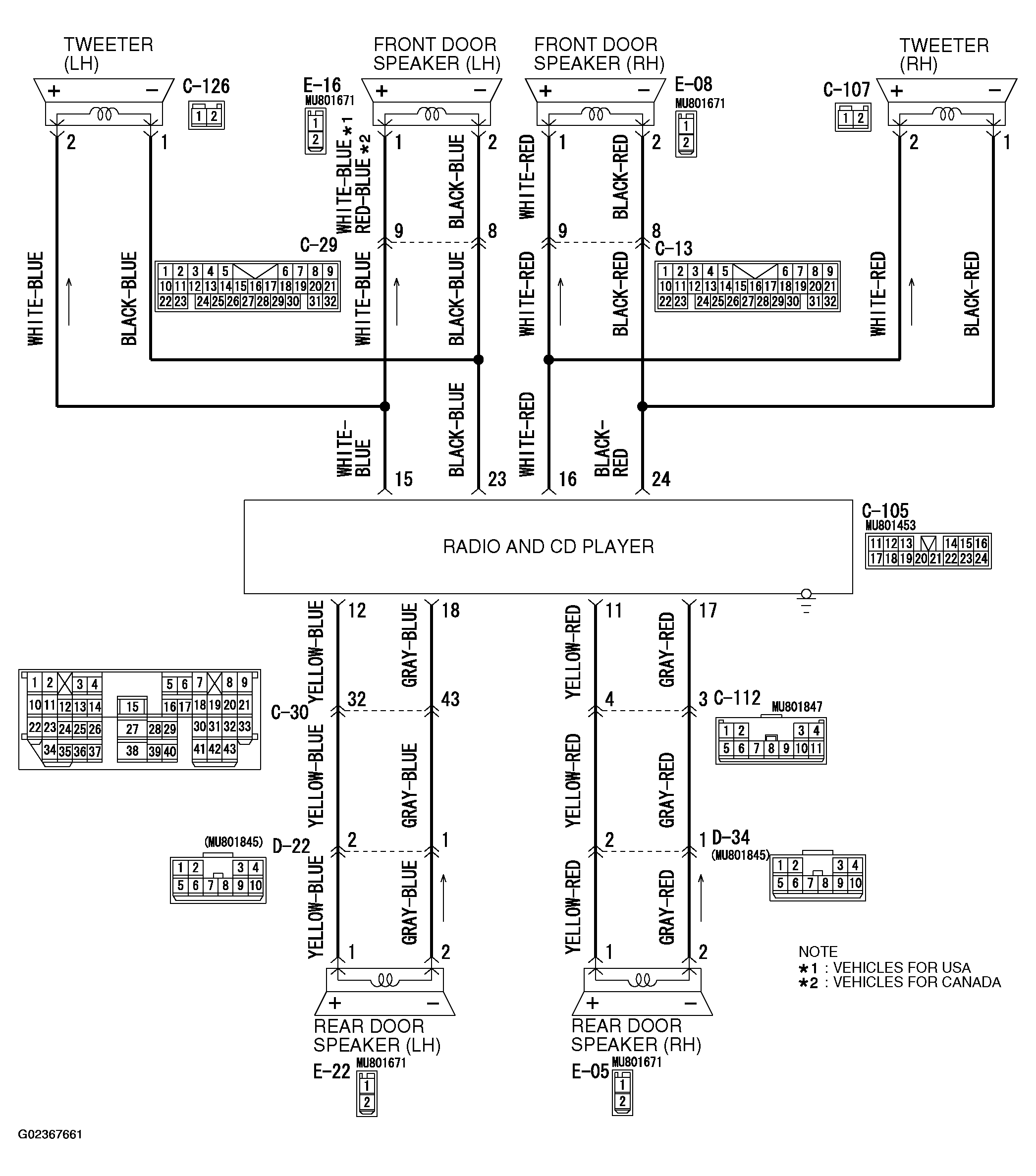

Fig 1: Speaker System (Vehicles with Six Speakers) - Circuit Diagram & Connector Idetnification (1 Of 2)
G02367661Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

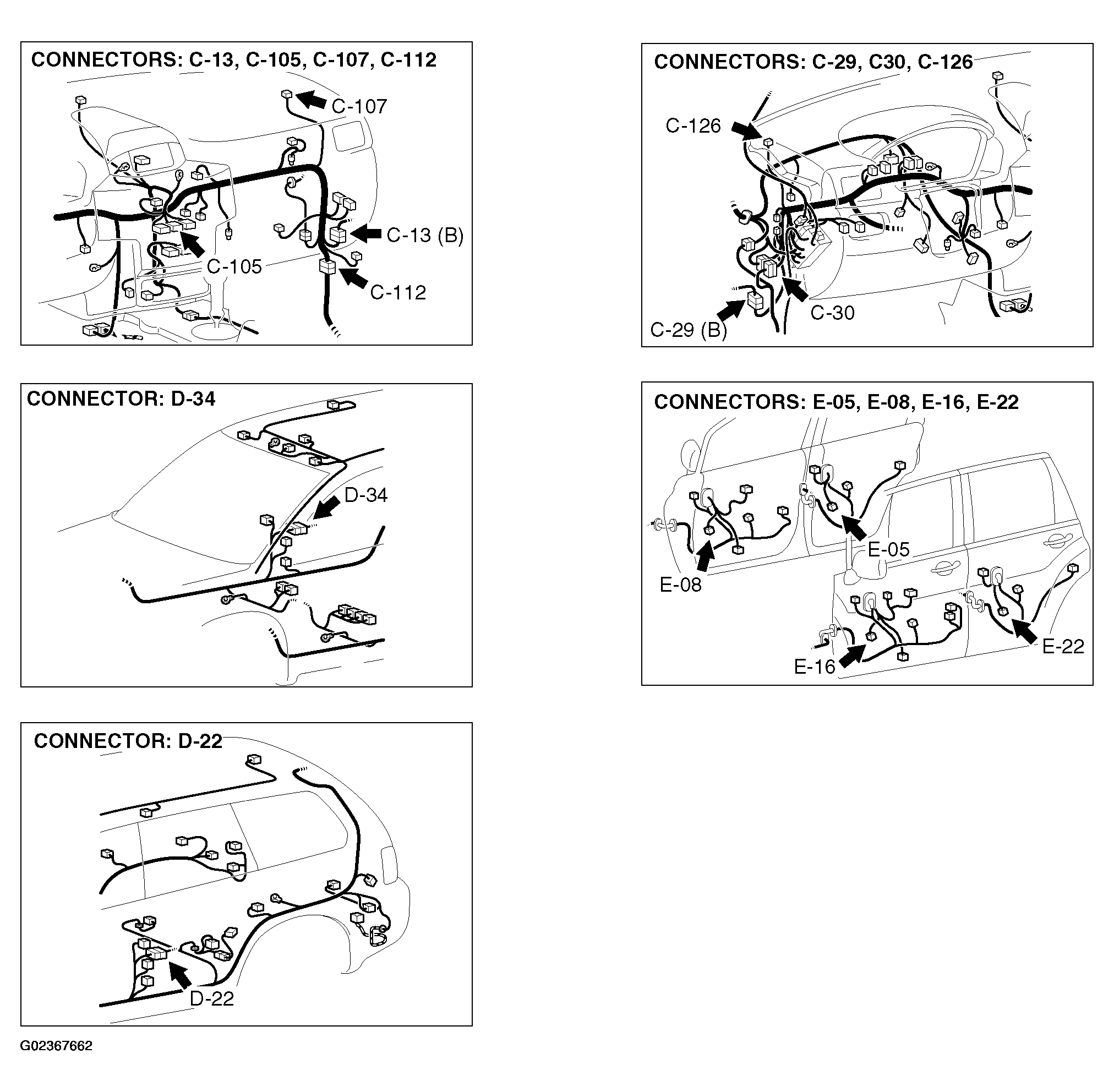

Fig 2: Speaker System (Vehicles with Six Speakers) - Circuit Diagram & Connector Idetnification (2 Of 2)
G02367662Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
