INSPECTION PROCEDURE 5: No Sound. < Vehicles with Audio Amplifier >: Notes

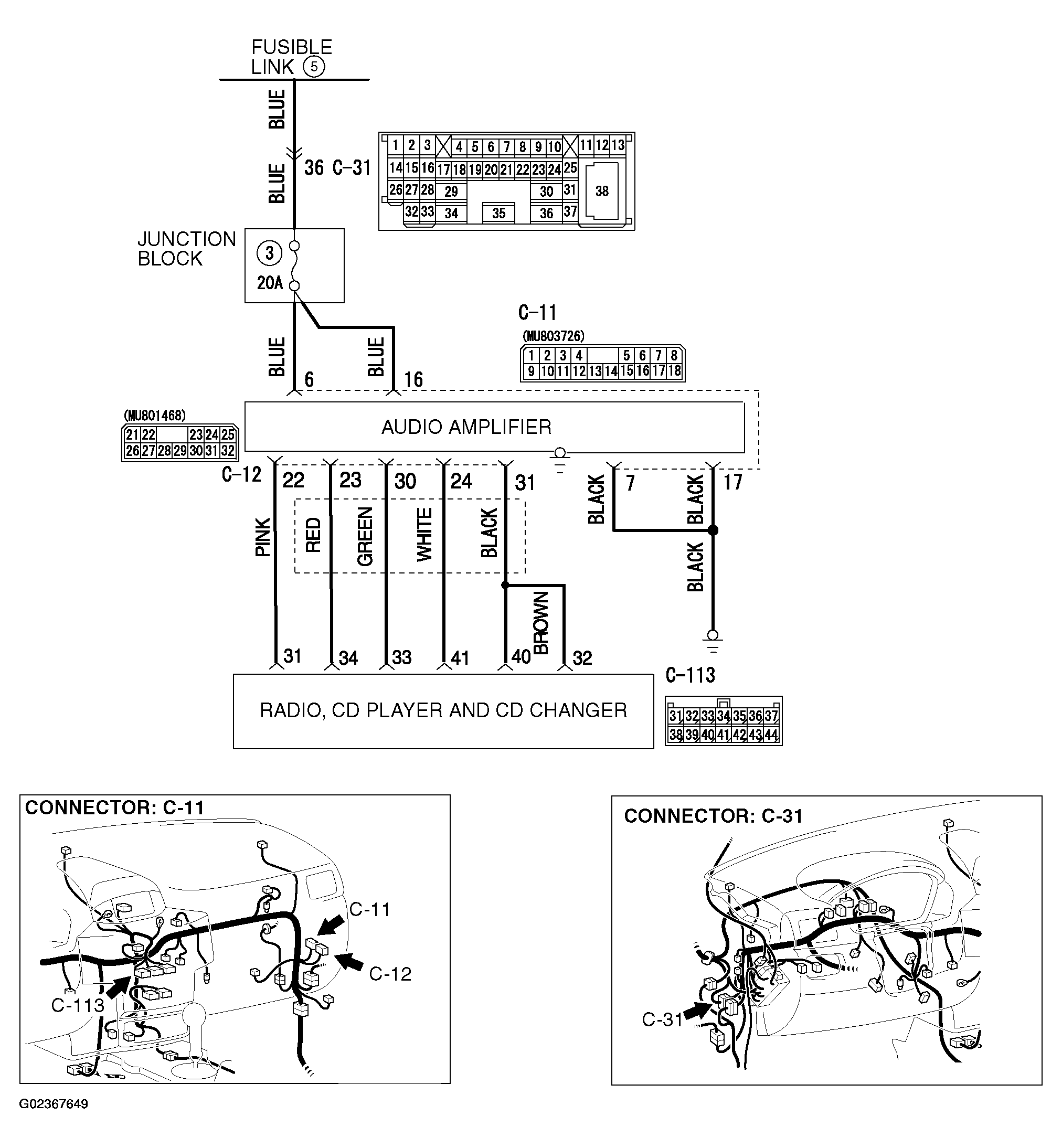

Fig 1: Audio Amplifier Power Supply Circuit Diagram & Connector Identification

G02367649

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
