INSPECTION PROCEDURE 22: Preset Stations are Erased.: Notes

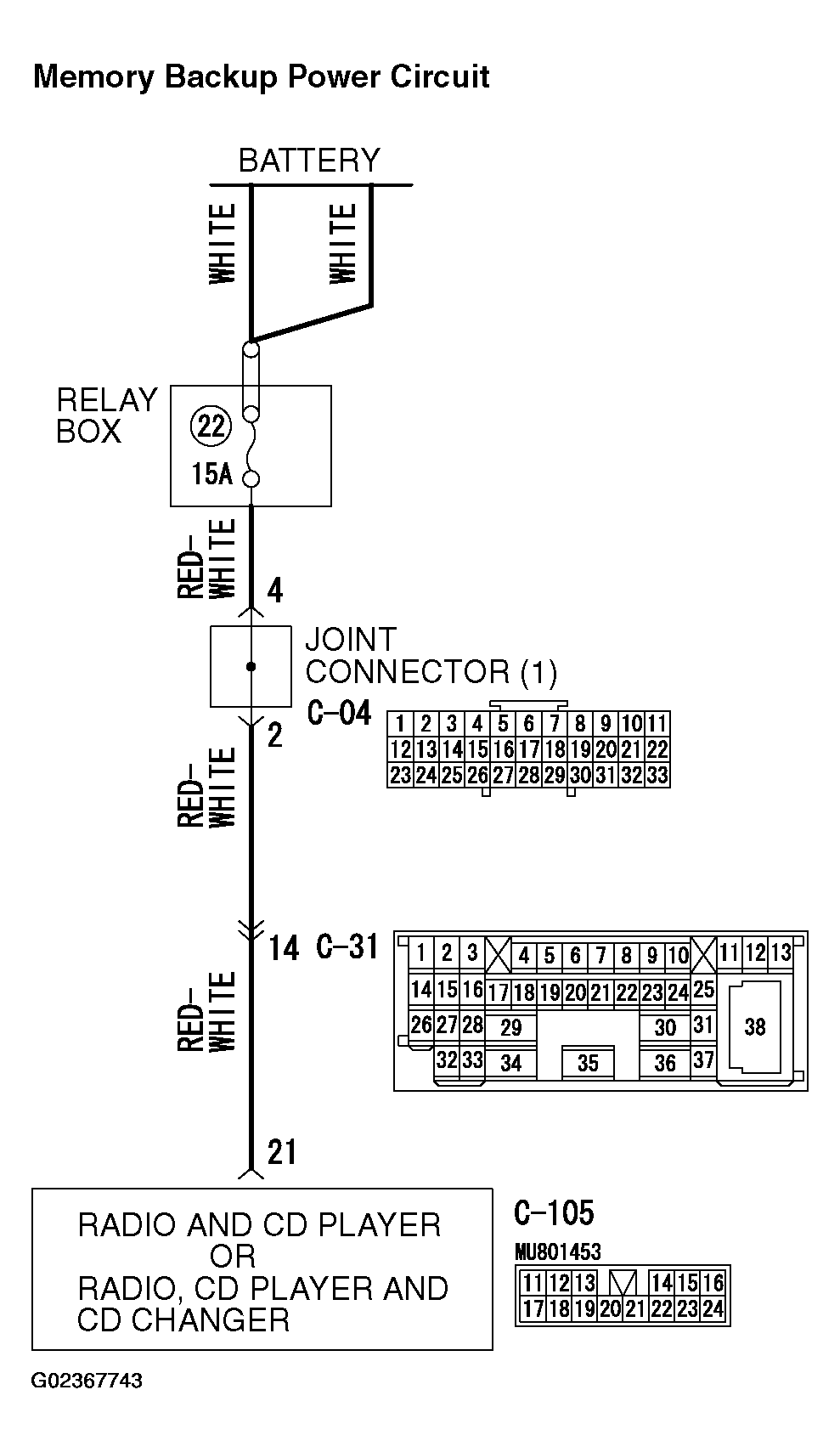

Fig 1: Memory Backup Power Circuit Diagram & Connector Identification (1 Of 2)
G02367743Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

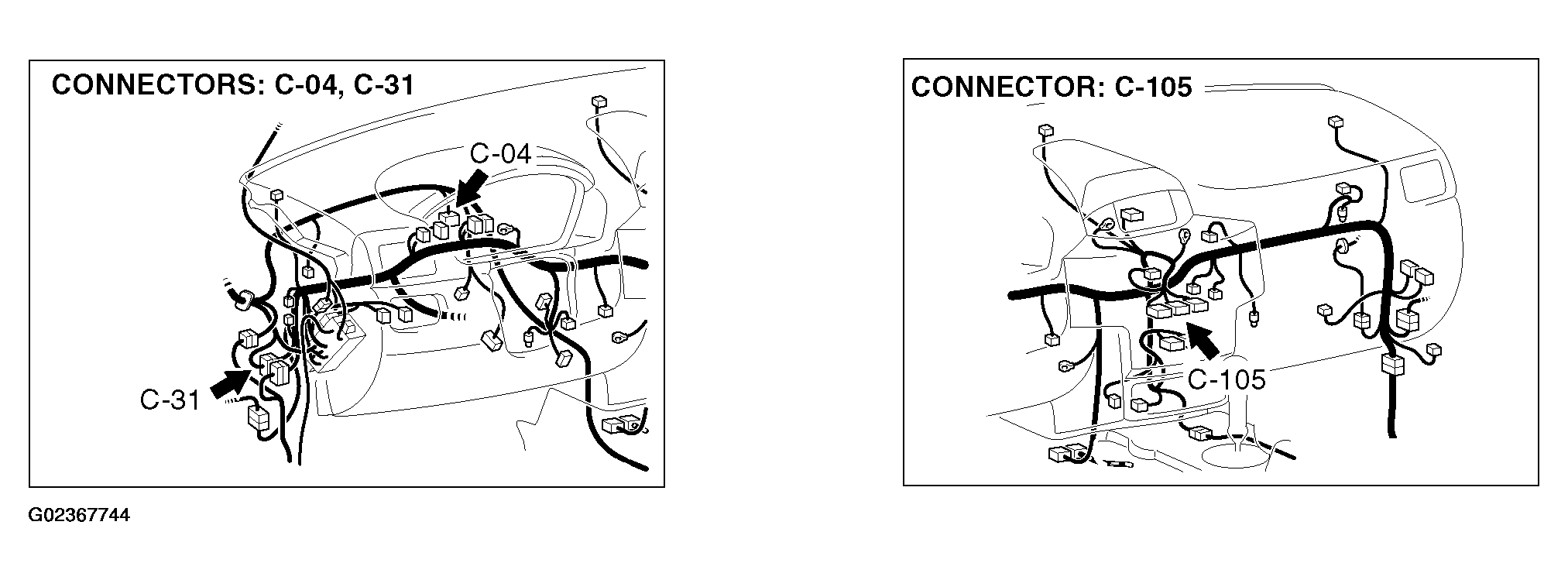

Fig 2: Memory Backup Power Circuit Diagram & Connector Identification (2 Of 2)
G02367744Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
