INSPECTION PROCEDURE 2: When Remote Controlled Radio Power Switch is Turned "ON," no Power is Available. But Radio, CD Player and CD Changer Power Switch is Available. < Vehicles with Seven Speakers>: Notes

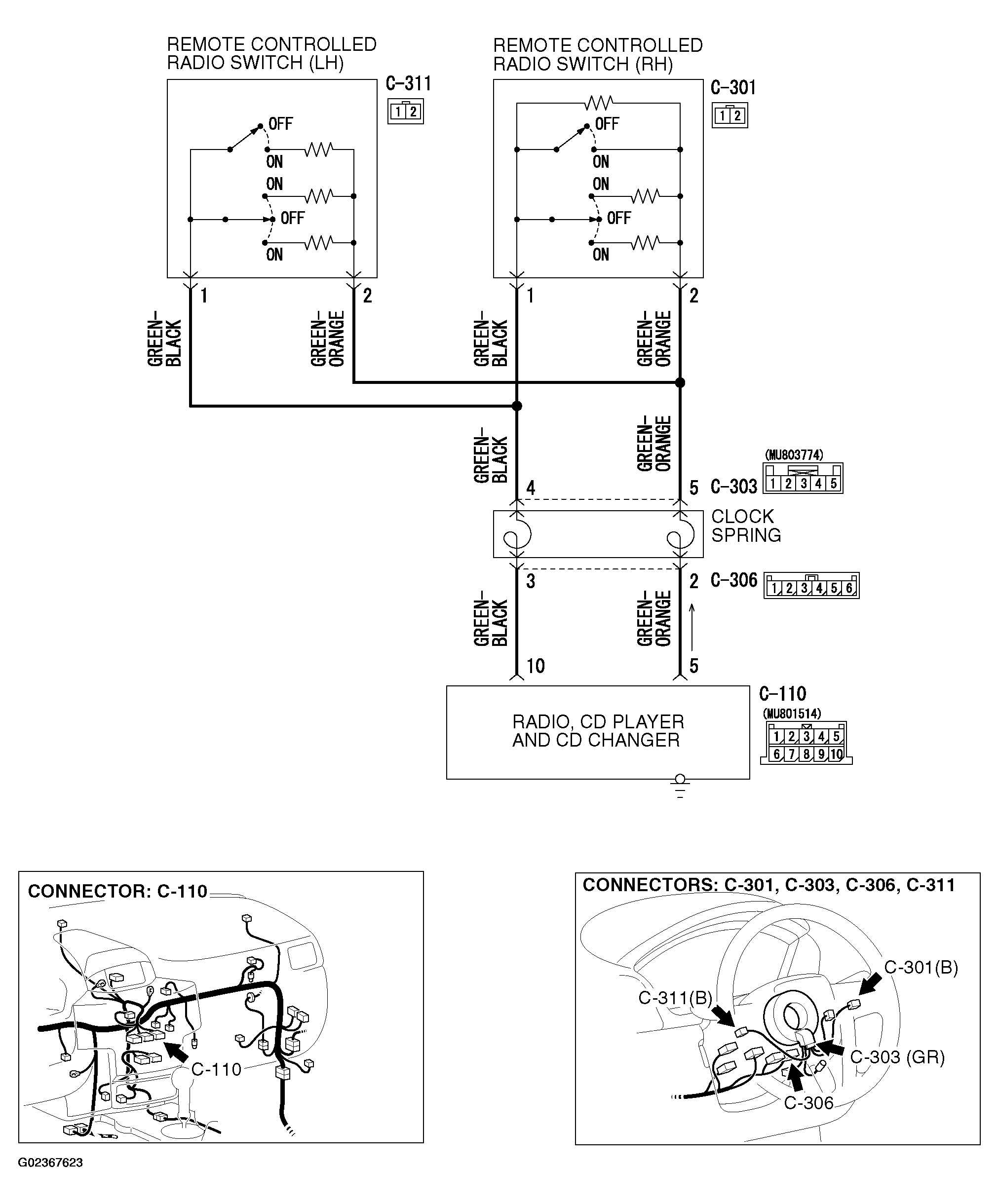

Fig 1: Remote Controlled Radio Switch Power Supply Circuit Diagram & Connector Identification
G02367623Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
