INSPECTION PROCEDURE 1: When Power Switch is Turned "ON," no Power is Available.: Notes

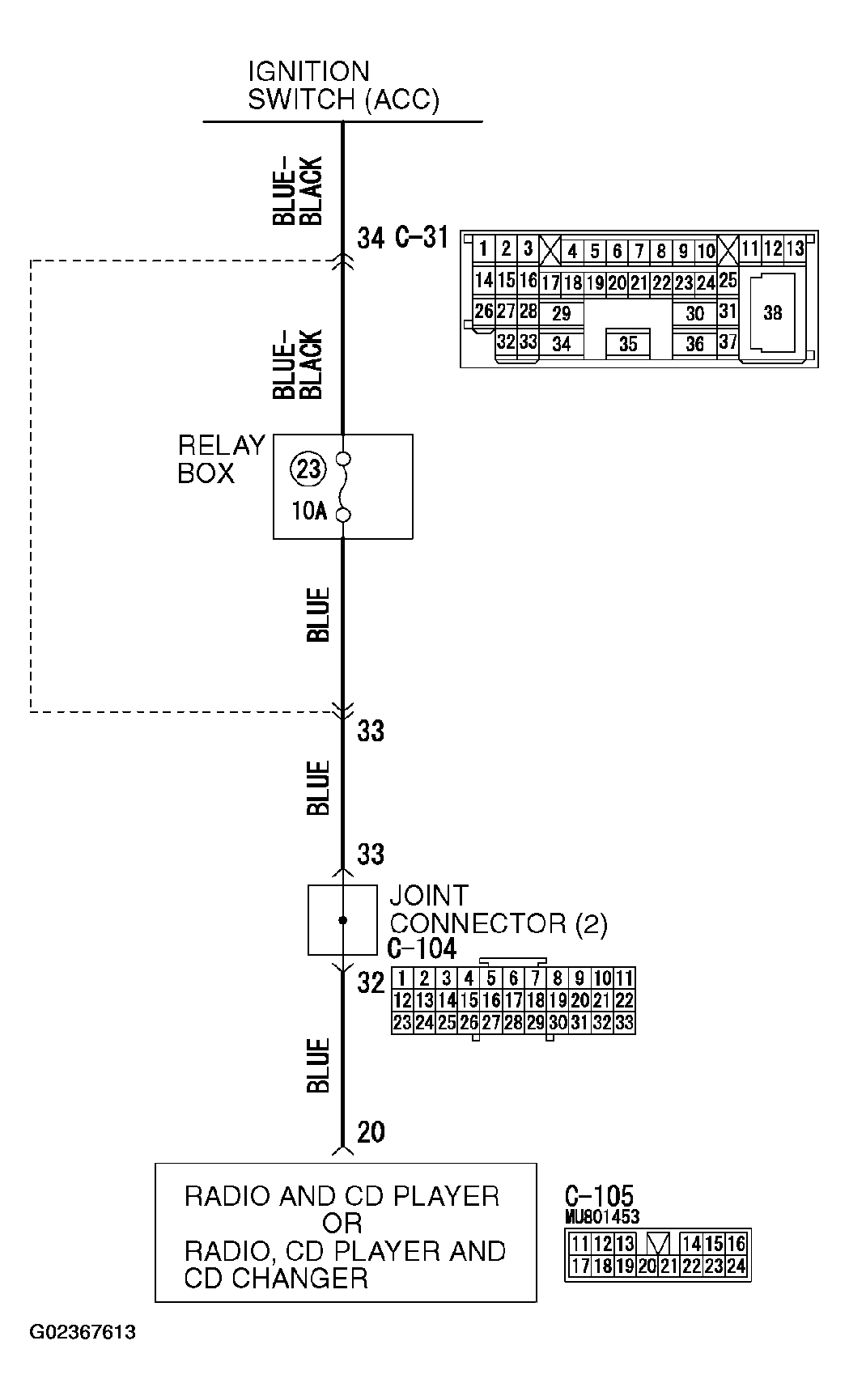

Fig 1: Radio And CD Player Or Radio, CD Player And CD Changer Power Supply Circuit Diagram & Connector Identification (1 Of 2)
G02367613Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

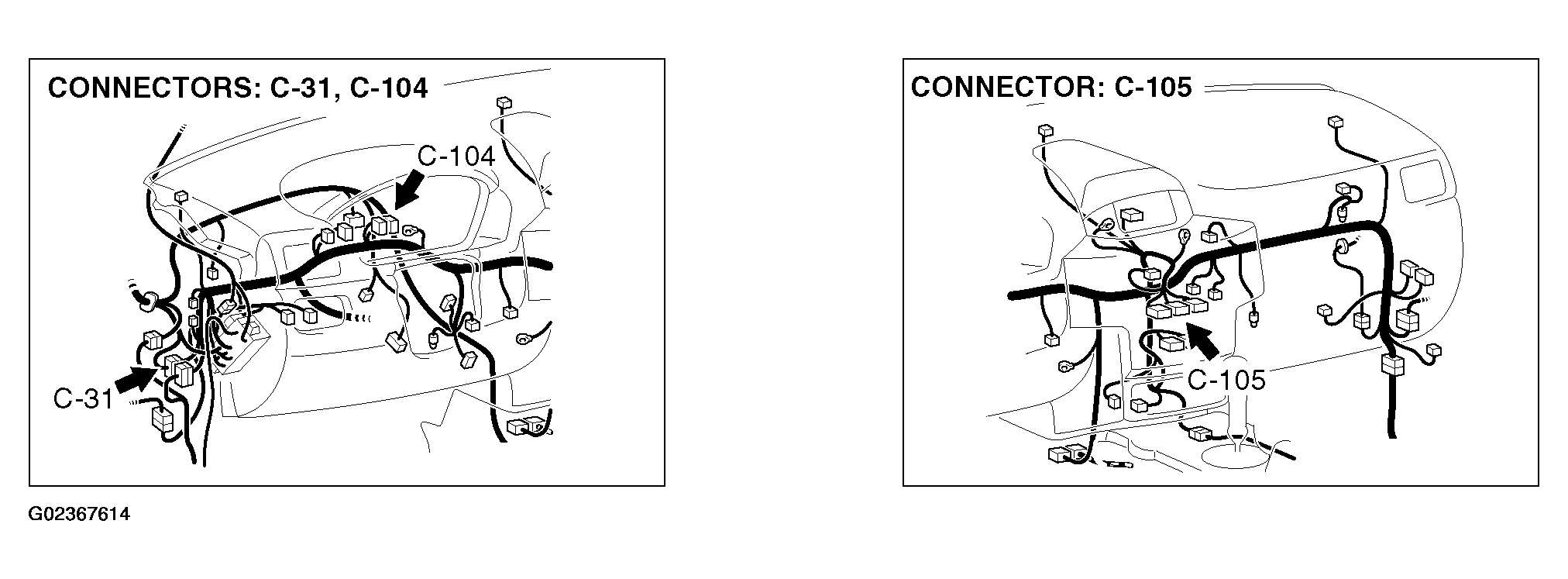

Fig 2: Radio And CD Player Or Radio, CD Player And CD Changer Power Supply Circuit Diagram & Connector Identification (2 Of 2)
G02367614Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
