Removal And Installation

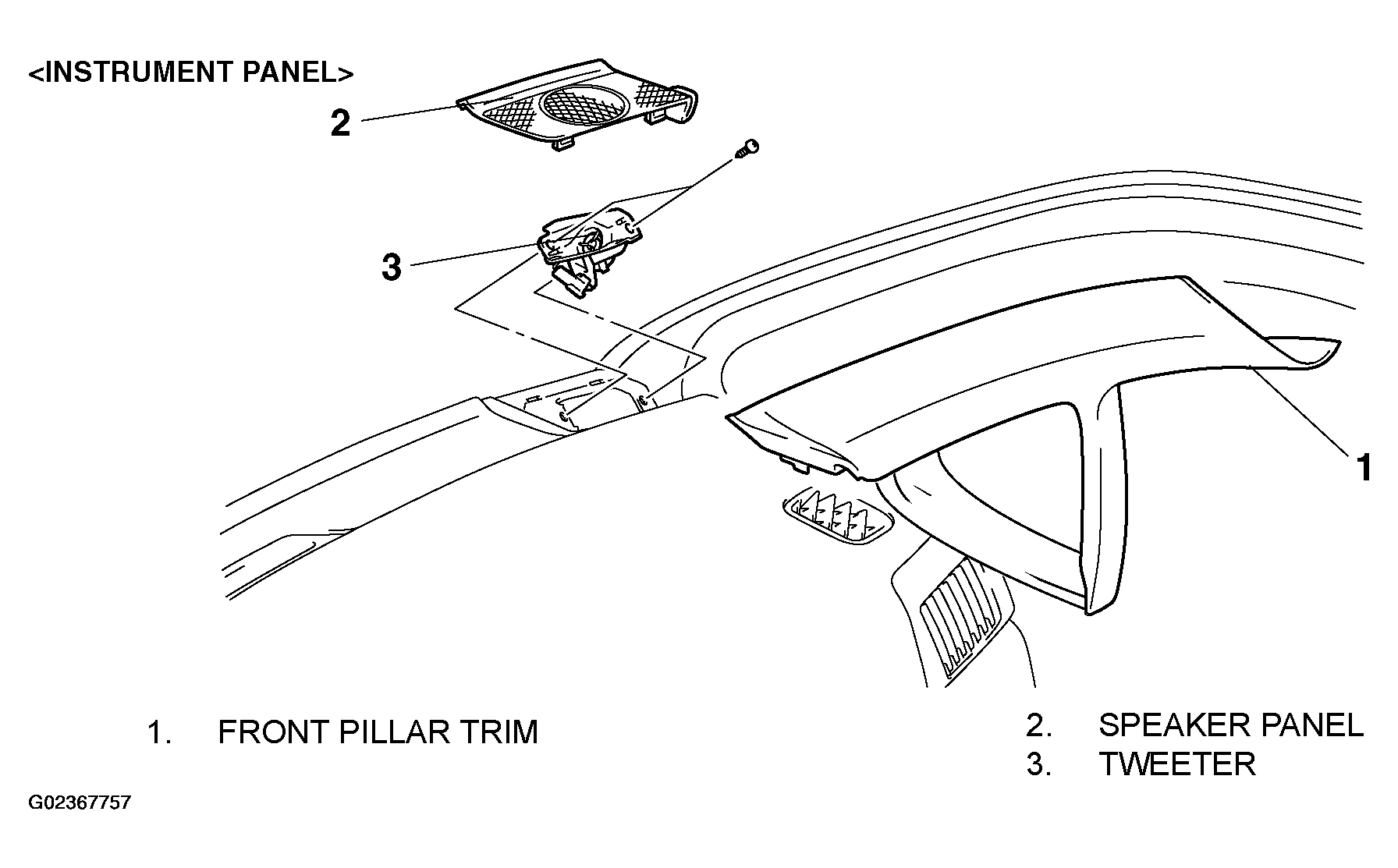

Fig 1: Removing/Installing Speaker (Instrument Panel)
G02367757Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

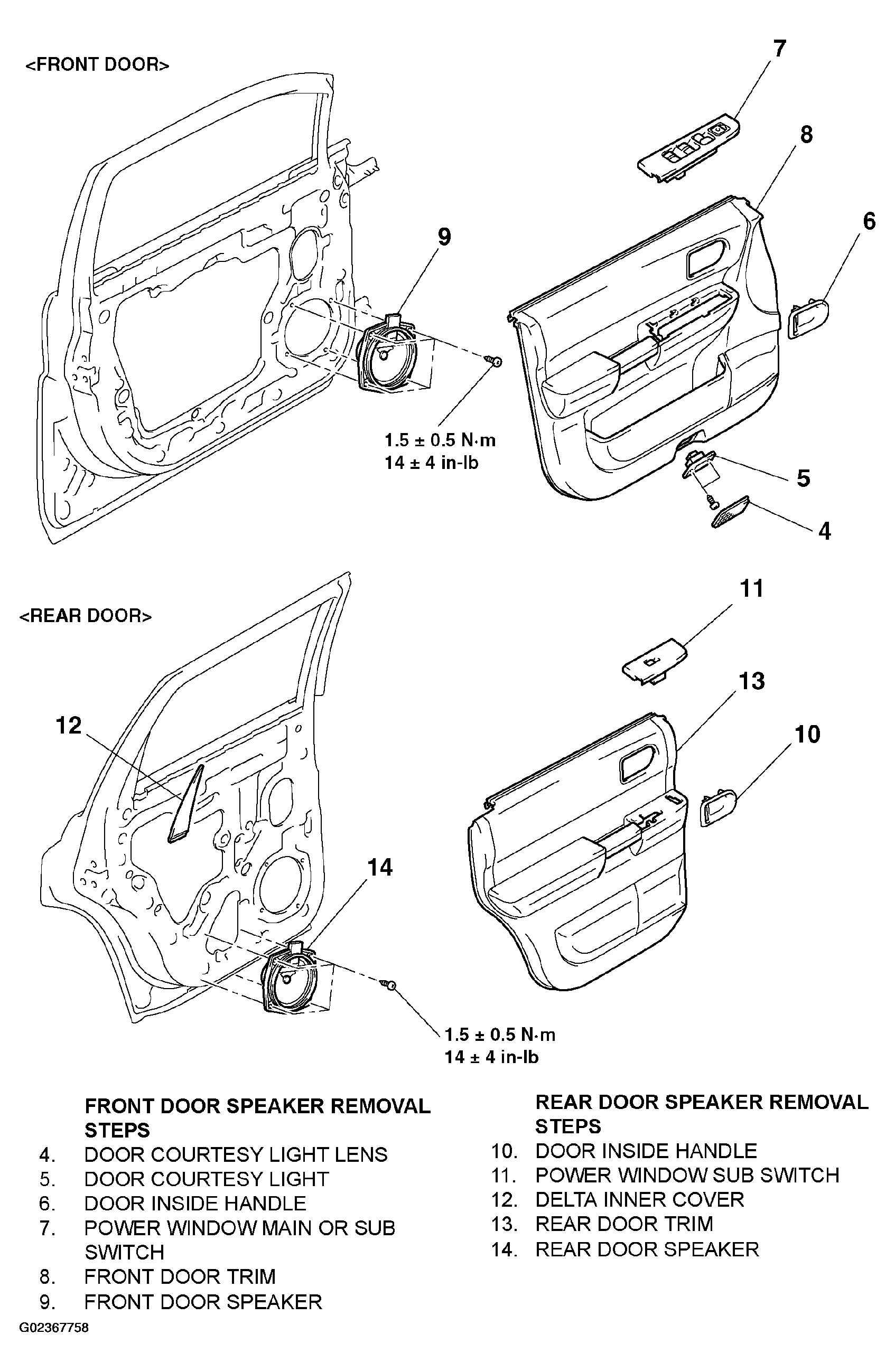

Fig 2: Removing/Installing Speaker (Front Door)
G02367758Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

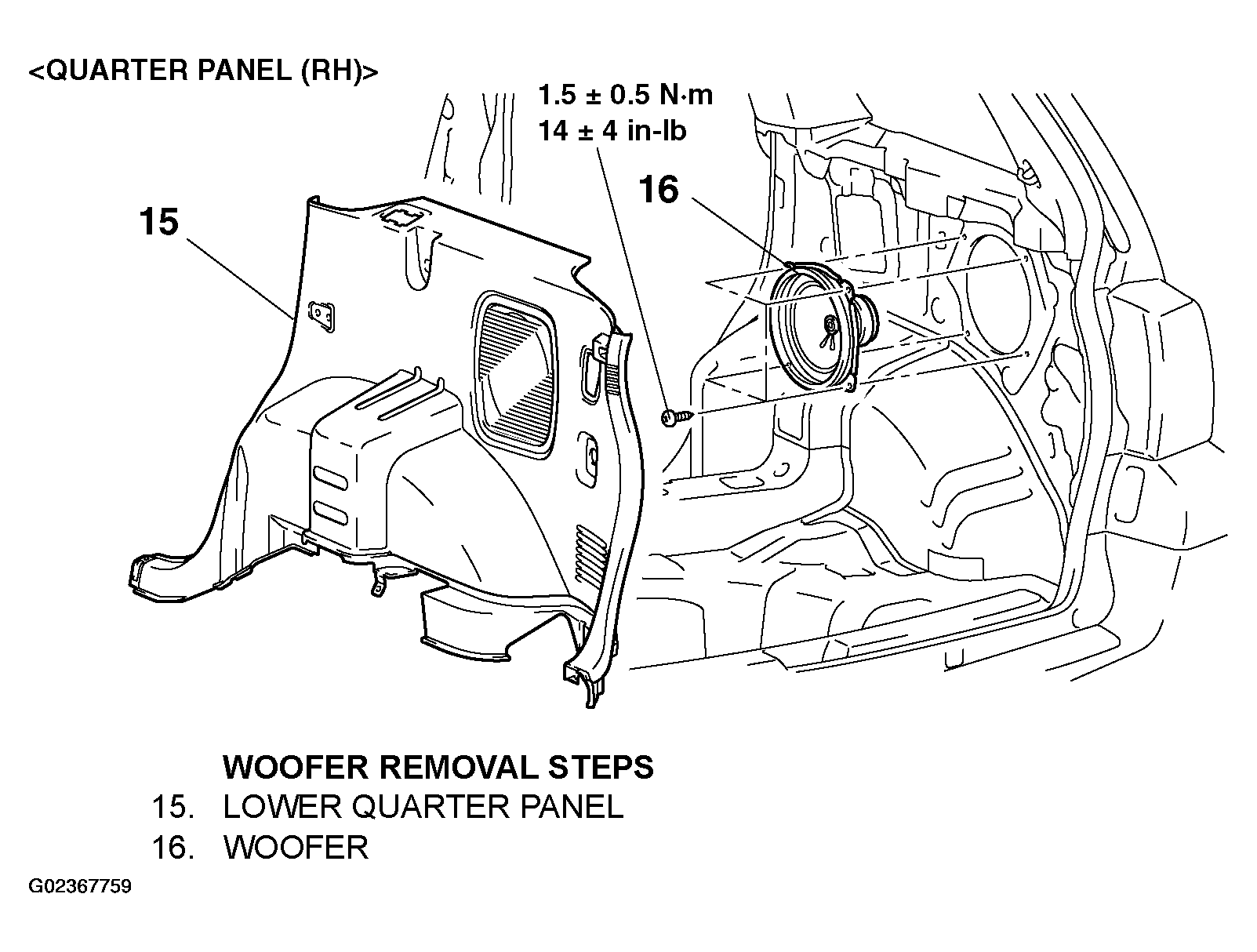

Fig 3: Removing/Installing Speaker (Quarter Panel (RH))
G02367759Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
