Audio Error Codes

If the radio and CD player or radio, or CD player and CD changer detects any malfunction in itself or the inserted CD, the error codes below will be shown on the multi-center display.

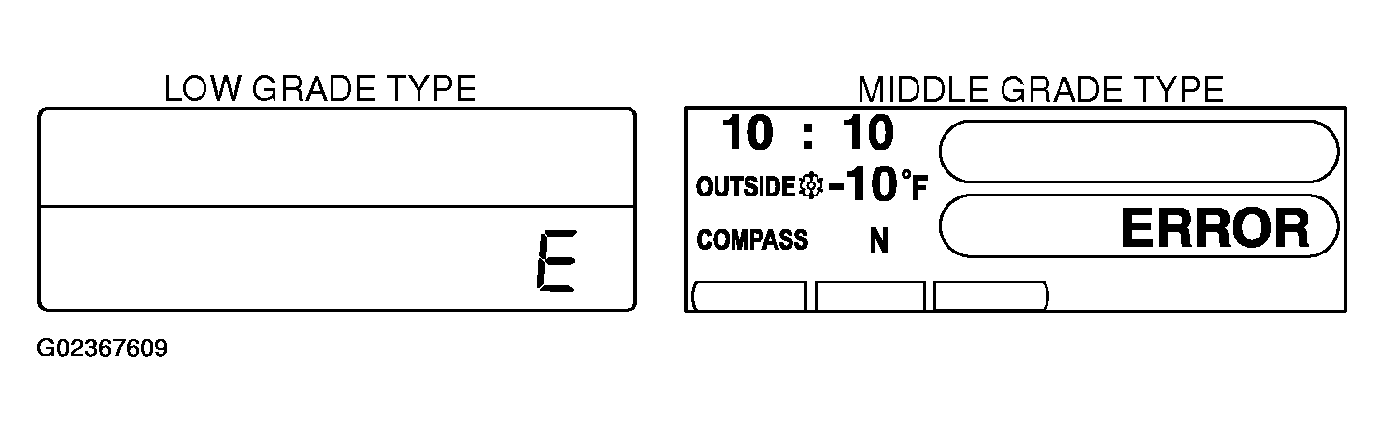

Fig 1: Identifying Error Screen Sample (Multi-Center Display)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

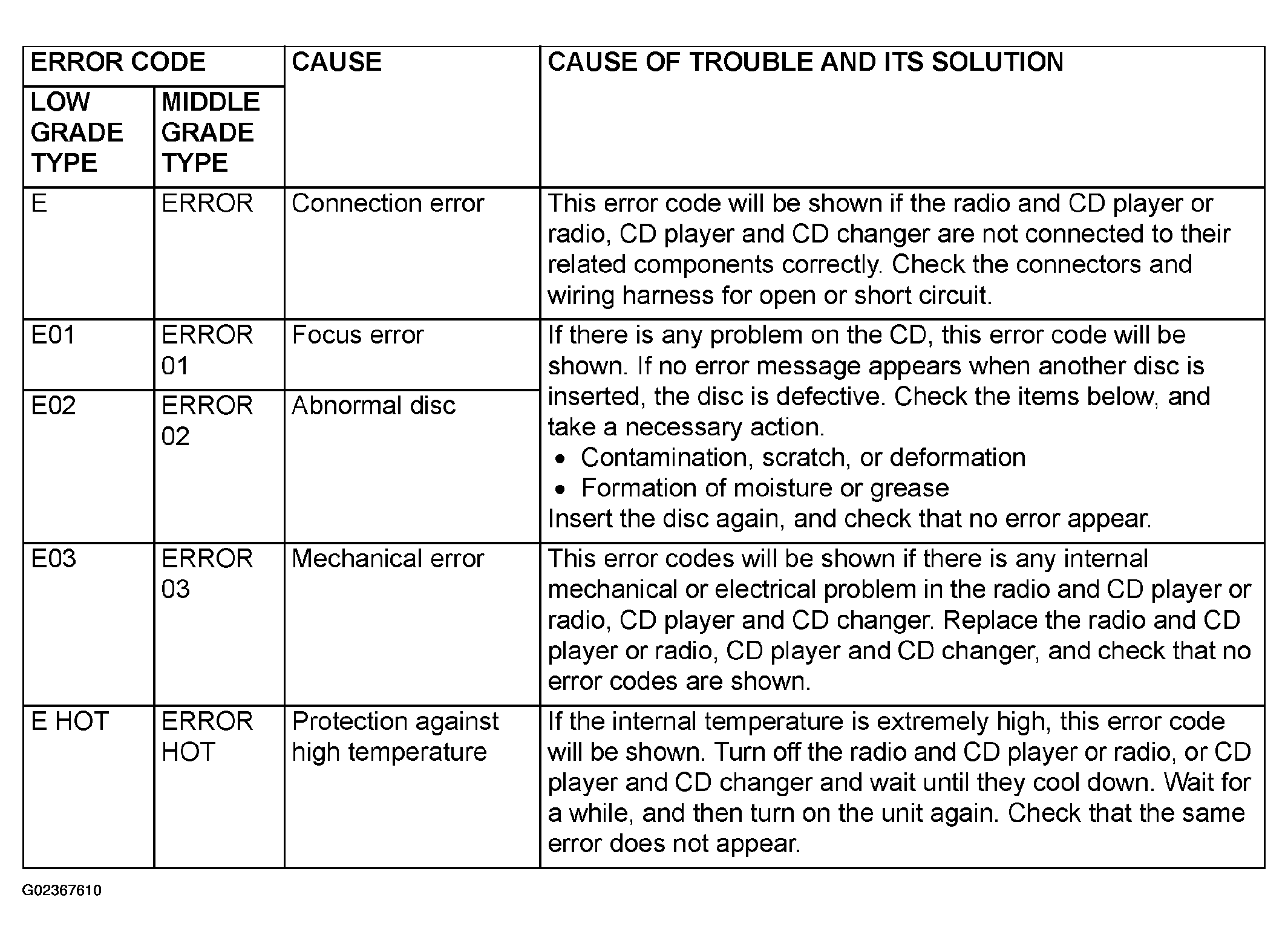

Fig 2: Trouble Cause And Solution Chart

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
