Speaker Test < Vehicles With Seven Speakers >

Operate the radio panel switches to test the speakers. The middle grade type multi-center display shows which speaker is sounding. Enter the speaker test mode according to the following steps:

1. Turn the ignition switch to "ACC" position and switch off the audio.
2. Press the following buttons in that order within 60 seconds from step (1).
   1. Memory select "1" button
   2. "SEEK" switch (down side)
   3. "SEEK" switch (up side)
   4. Memory select "6" button

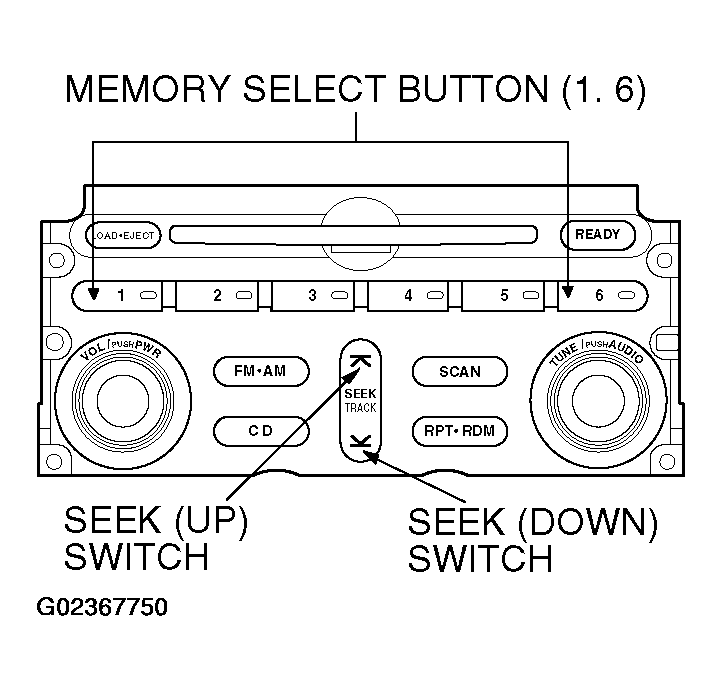

   Fig 1: Identifying Memory Select Buttons

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Check that the speaker, which is displayed on the multi-center display (middle grade type), sounds (If the memory select "6" button is pressed, the speaker will be changed).
4. If a button other than the memory select "6" button and "EJECT" button (CD) is pressed, or the ignition switch is turned to "LOCK" (OFF) position, you will exit from the speaker test mode.

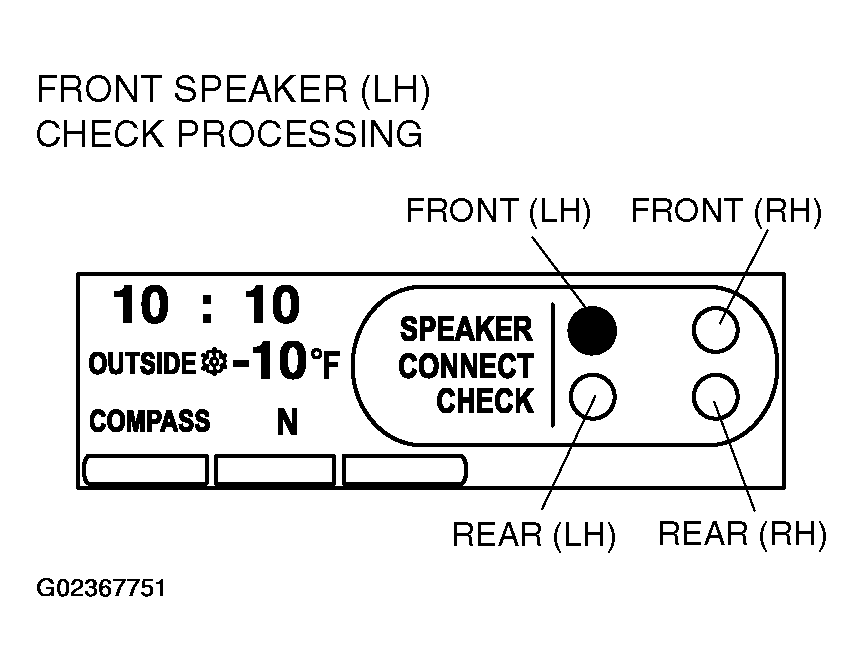

   Fig 2: Speaker Connect Check

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
