Repair and Diagnosis
>>
Accessories & Equipment
>>
Gauges & Instrument Panels
>>
Chassis Electrical
>>
Multi-Center Display
>>
Special Tools
Special Tools

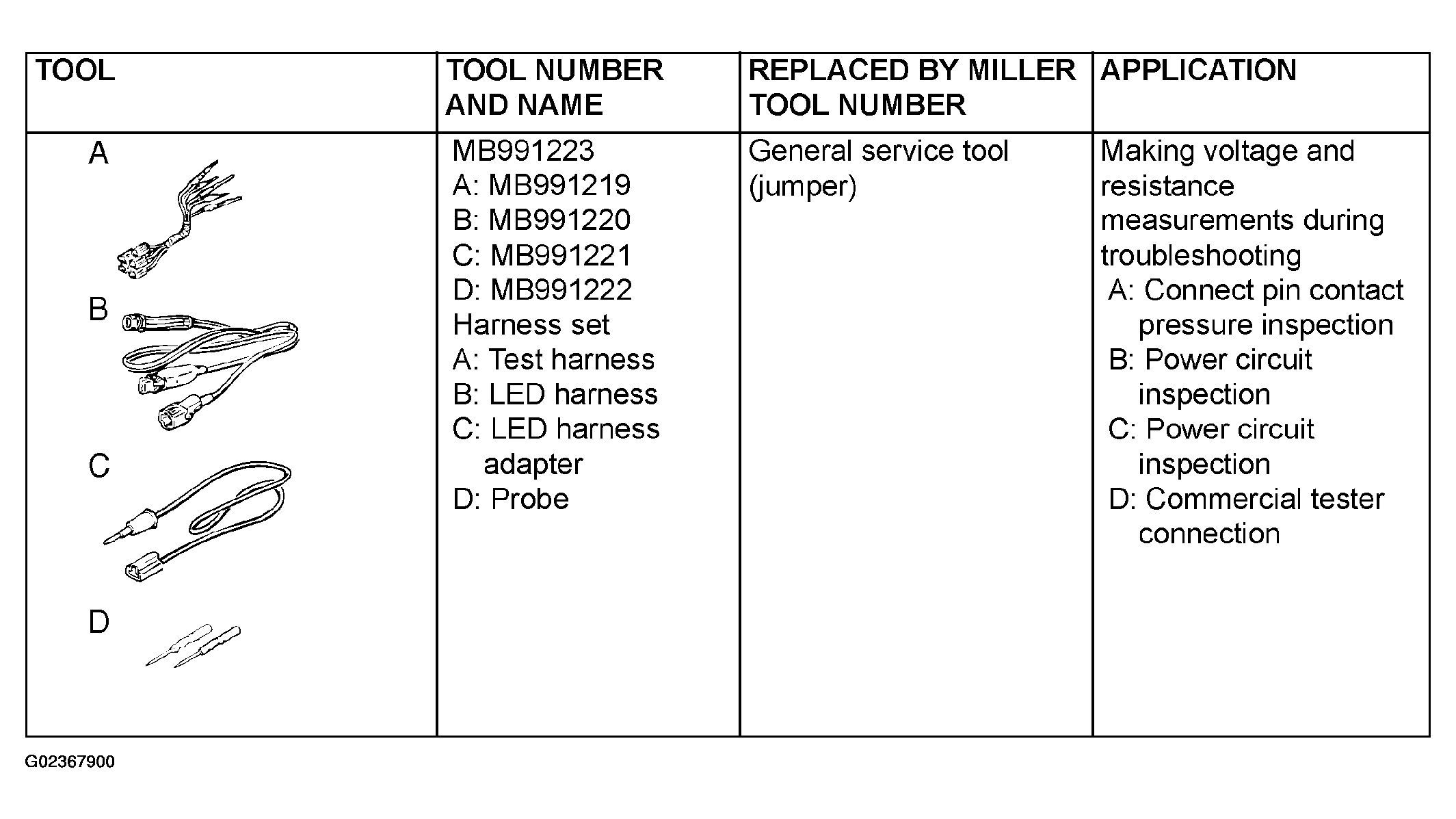

Fig 1: Special Tools Description (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

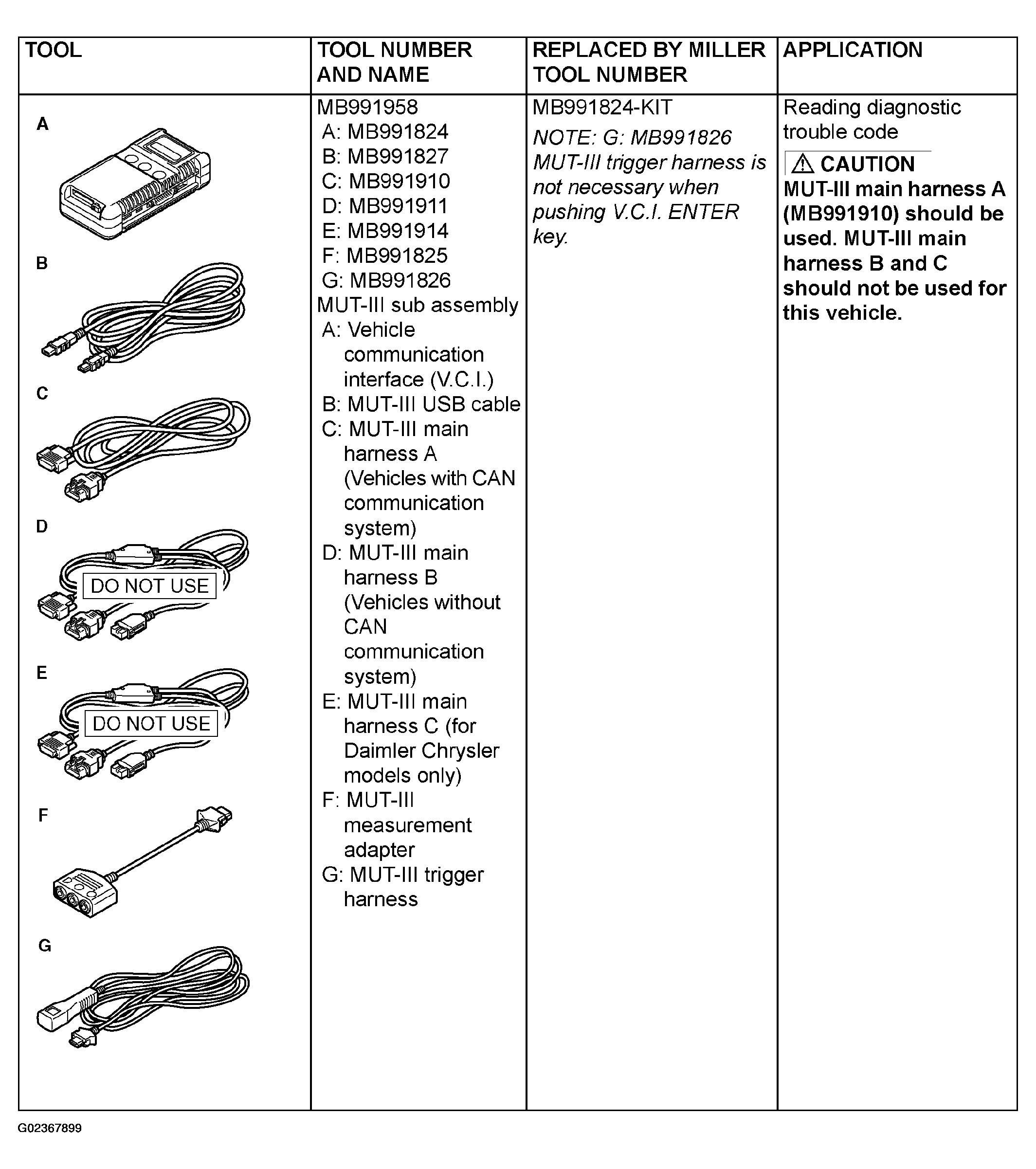

Fig 2: Special Tools Description (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
