DTC 019: ETACS-ECU Time-out: Notes

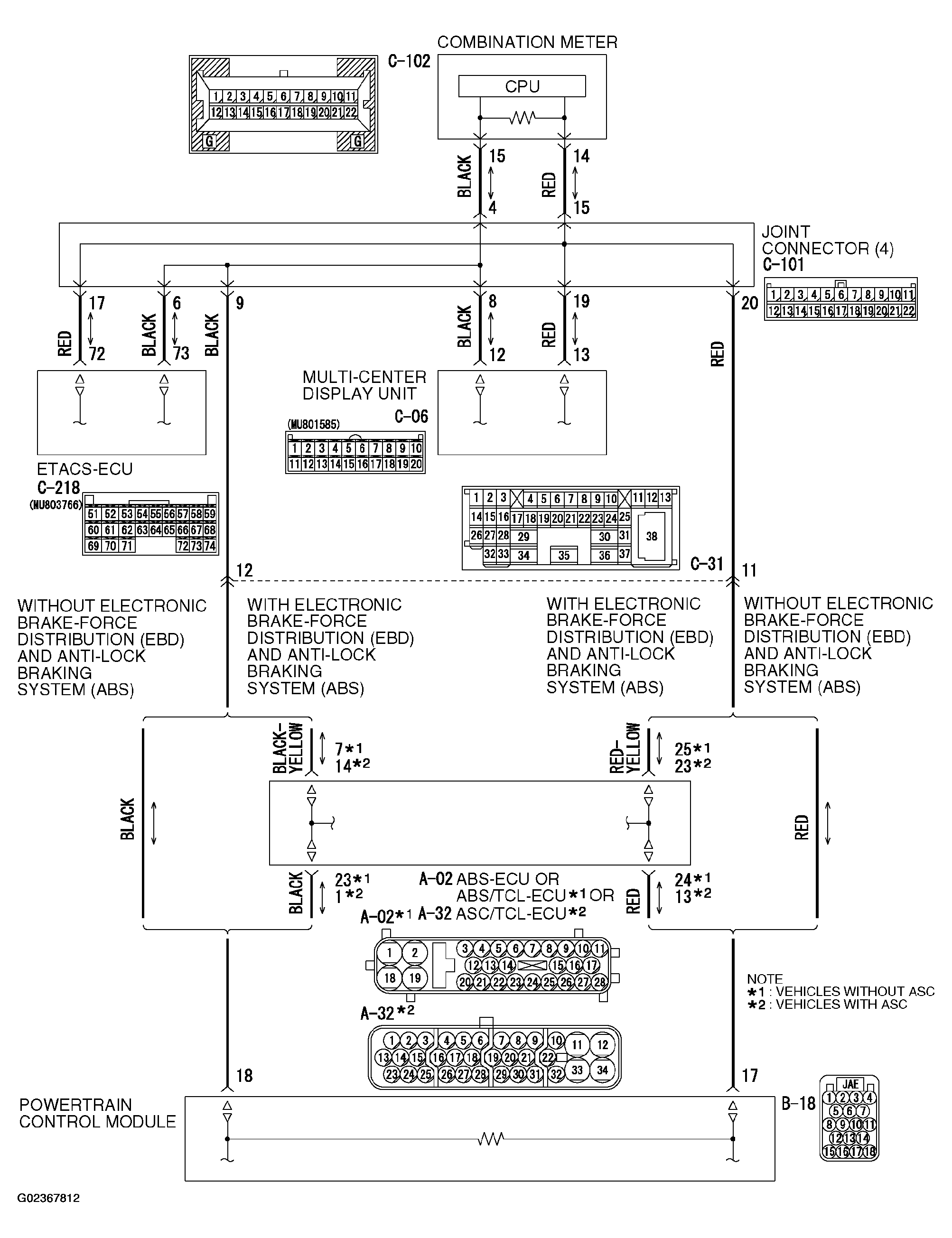

Fig 1: Identifying CAN Bus Line Circuit Diagram & Connector Identification (1 Of 2)
G02367812Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

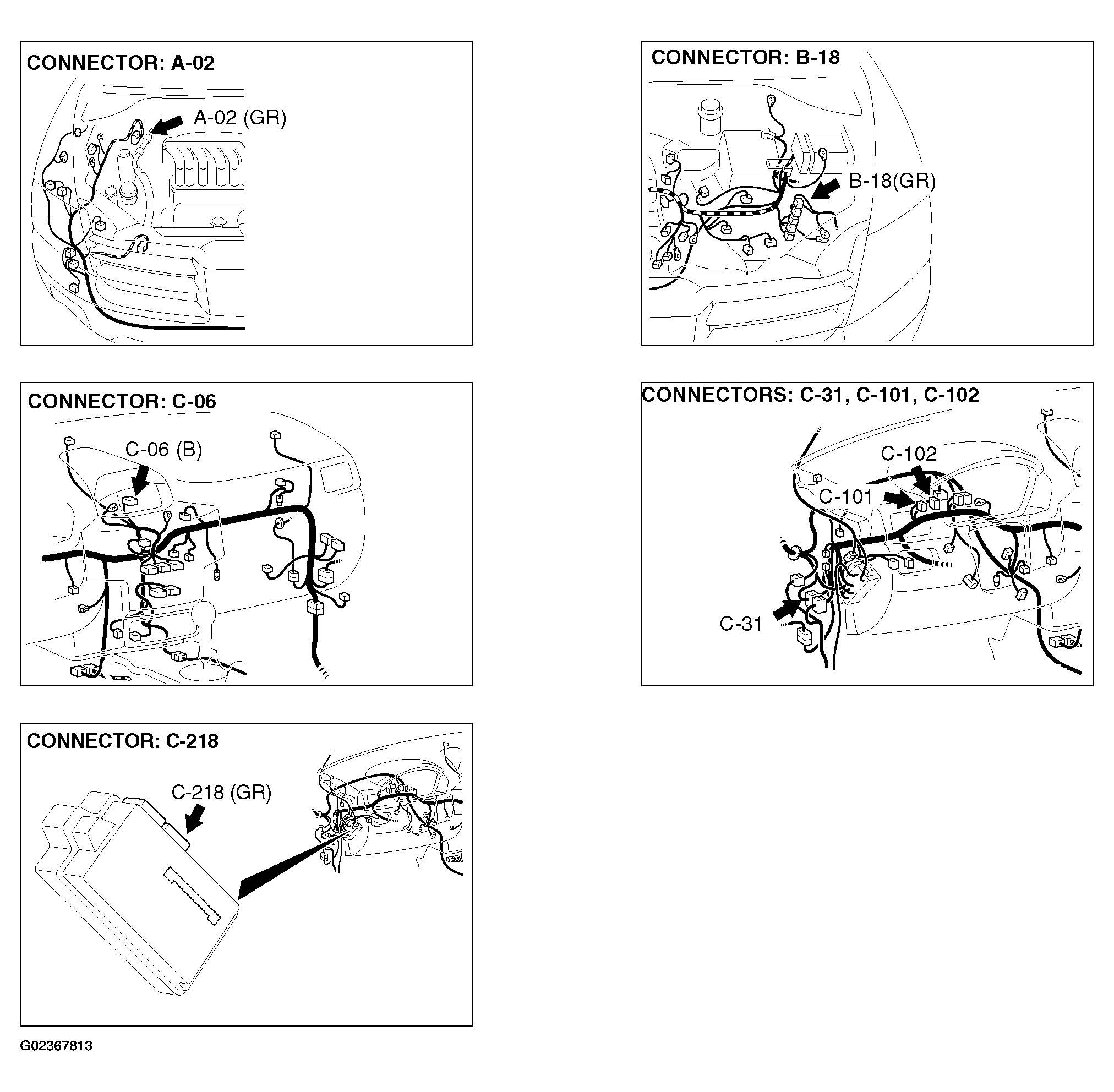

Fig 2: Identifying CAN Bus Line Circuit Diagram & Connector Identification (2 Of 2)
G02367813Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAUTION: If DTC 019 is set in the ETACS-ECU, diagnose the CAN main bus line.
CAUTION: Whenever the ECU is replaced, ensure that the communication circuit is normal.
