DTC 013: A/C-ECU Time-out: Notes

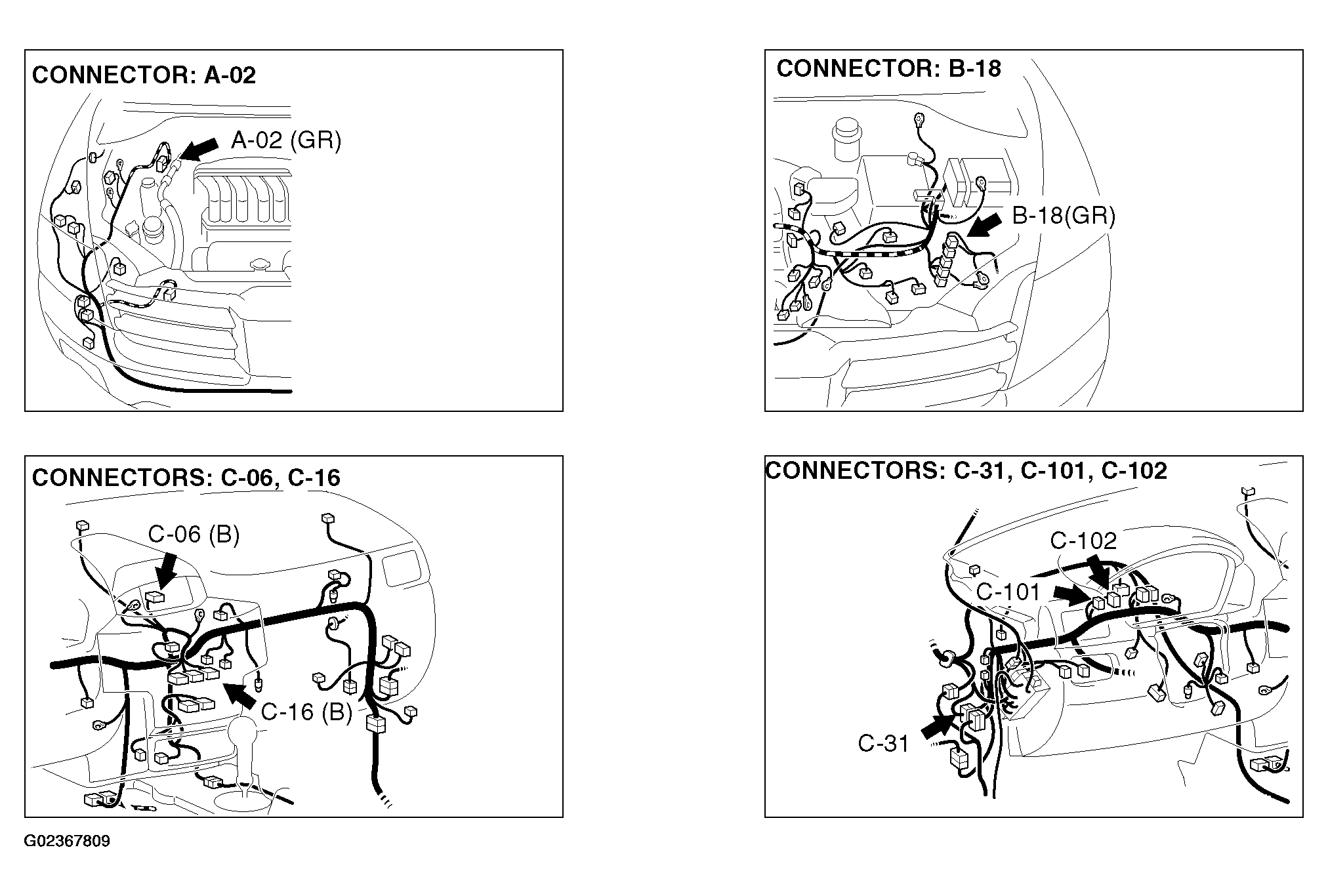

Fig 1: Time-out During CAN Communication with A/C-ECU Circuit Diagram & Connector Identification (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

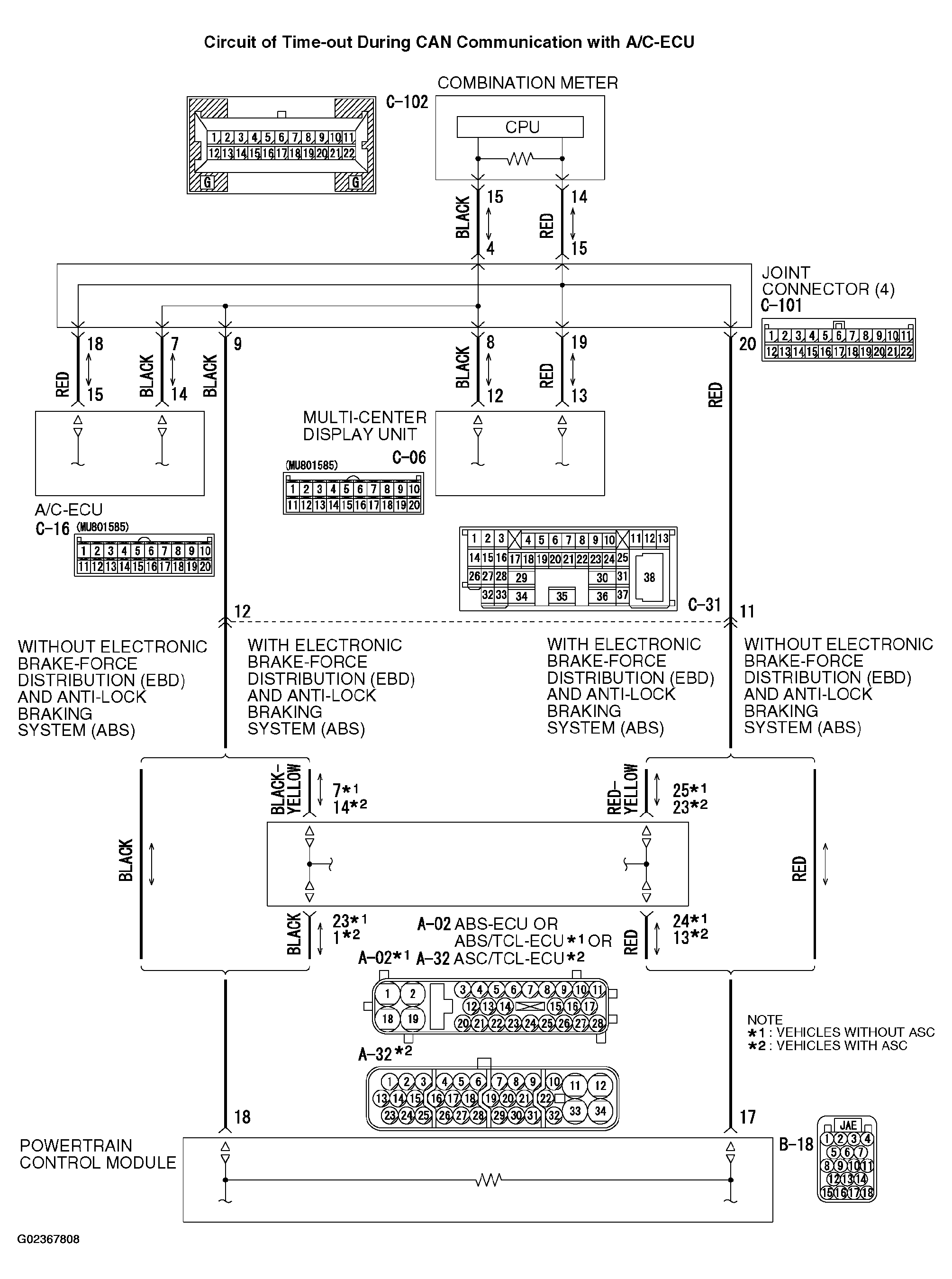

Fig 2: Time-out During CAN Communication with A/C-ECU Circuit Diagram & Connector Identification (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: If DTC 013 is set in the multi-center display, always diagnose the CAN bus lines.

CAUTION: Whenever the ECU is replaced, ensure that the communication circuit is normal.
