INSPECTION PROCEDURE 4: The Immobilizer Indicator Light does not Illuminate.: Notes

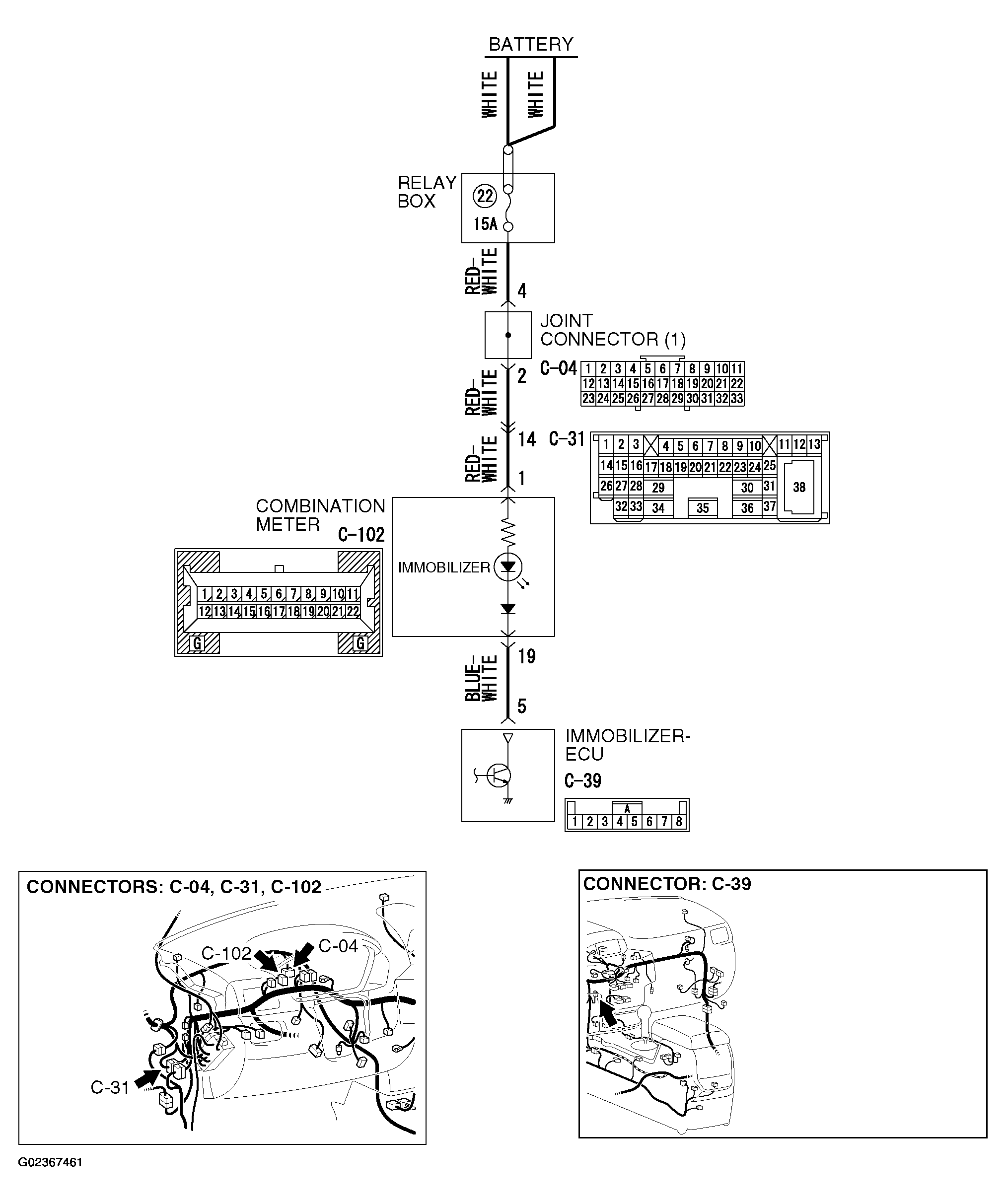

Fig 1: Immobilizer Indicator Light Circuit Diagram & Connector Identification
G02367461Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
