How To Read And Erase Diagnostic Trouble Codes

Required Special Tools:

MB991958: Scan Tool (MUT-III Sub Assembly)
- MB991824: Vehicle Communication Interface (V.C.I.)
- MB991827: MUT-III USB Cable
- MB991910: MUT-III Main Harness A (Vehicles with CAN communication system)

CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

NOTE: If the battery voltage is low, diagnostic trouble codes will not be set. Check the battery if scan tool MB991958 does not display.

Connect scan tool MB991958 to the data link connector.

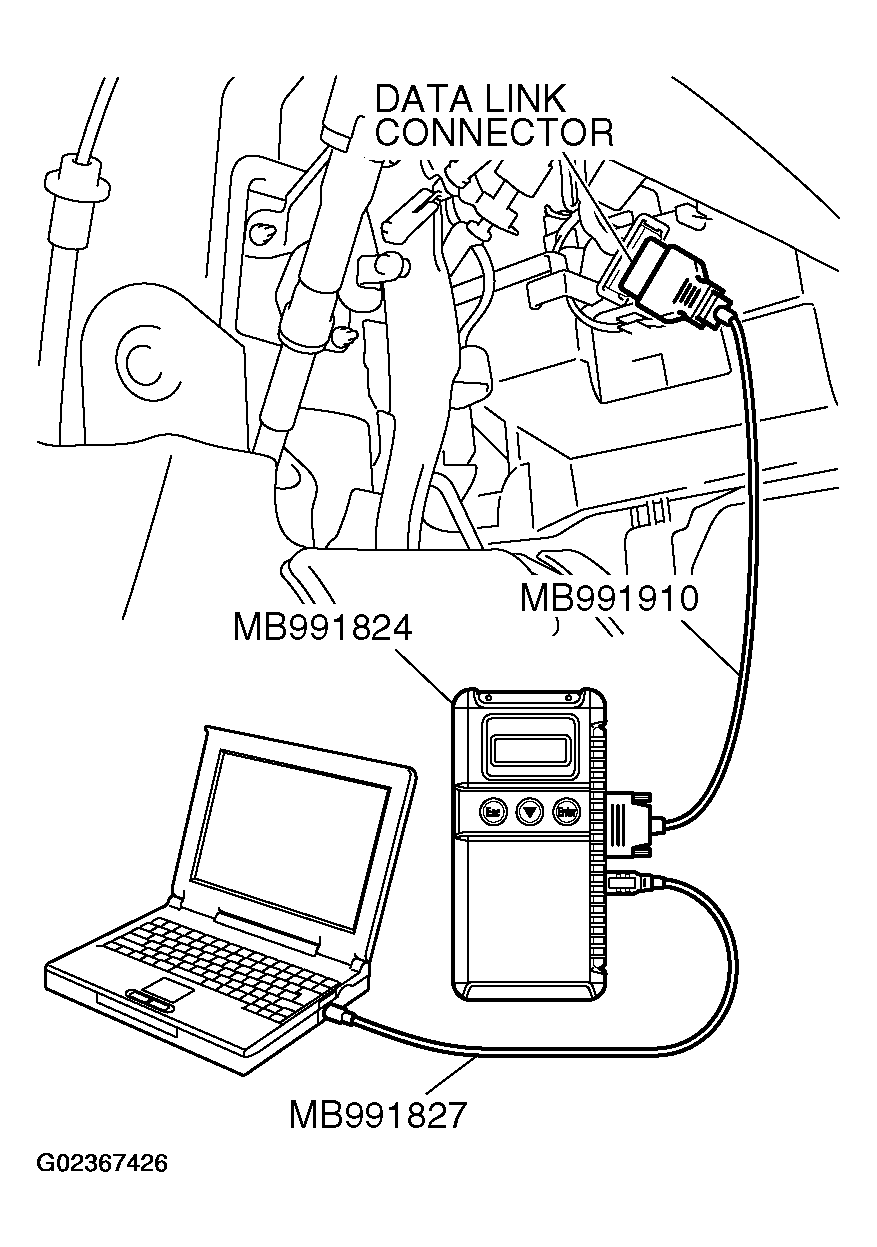

Fig 1: Connecting Scan Tool To Data Link Connector
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Turn the ignition switch to "ON" position.
Select "Interactive Diagnosis" from the start-up screen.
Select "System select."
Choose "IMMOBILIZER" from the "POWER TRAIN" tab.
Select "Self-diagnosis."
If a DTC is set, it is shown.
Choose "Erase DTCs" to erase the DTC.
