Horn Relay Continuity Check
Horn Relay Continuity Check

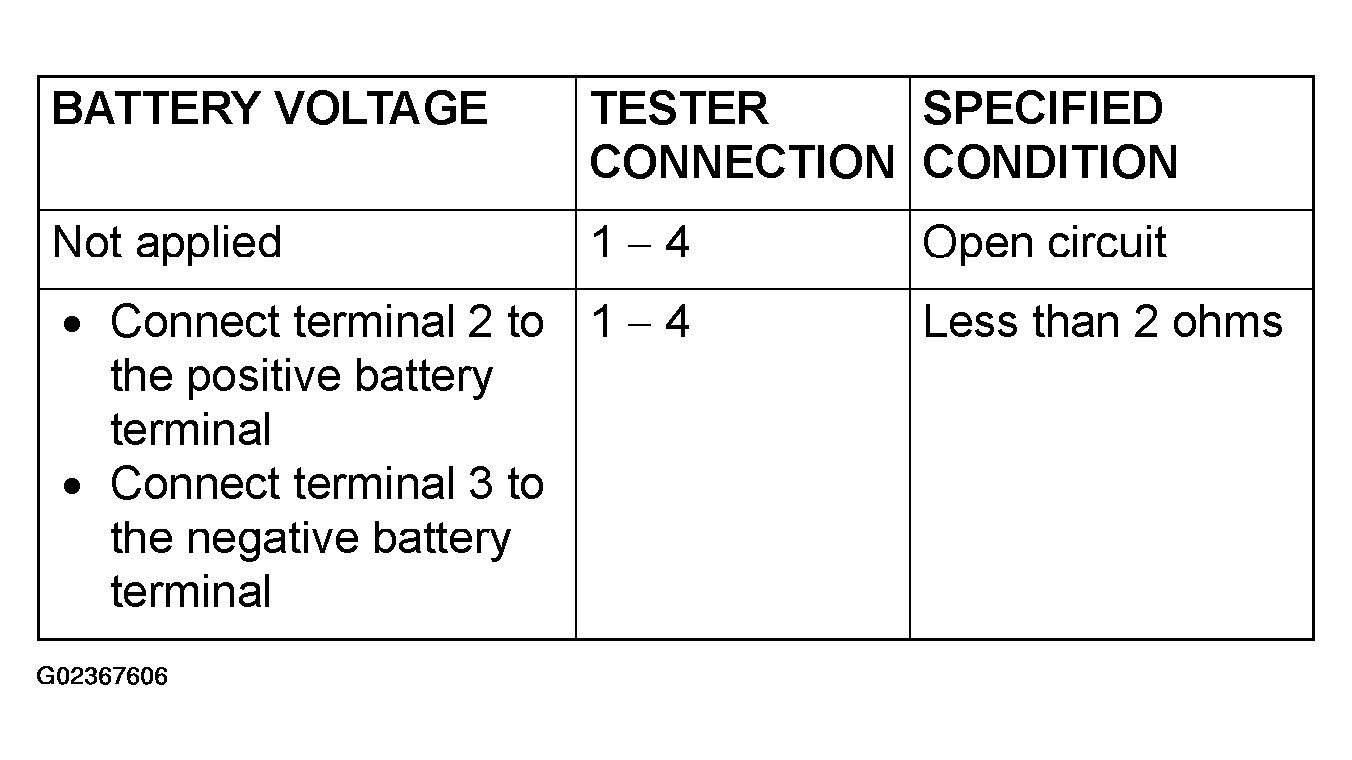

Fig 1: Tester Connection Specified Condition Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

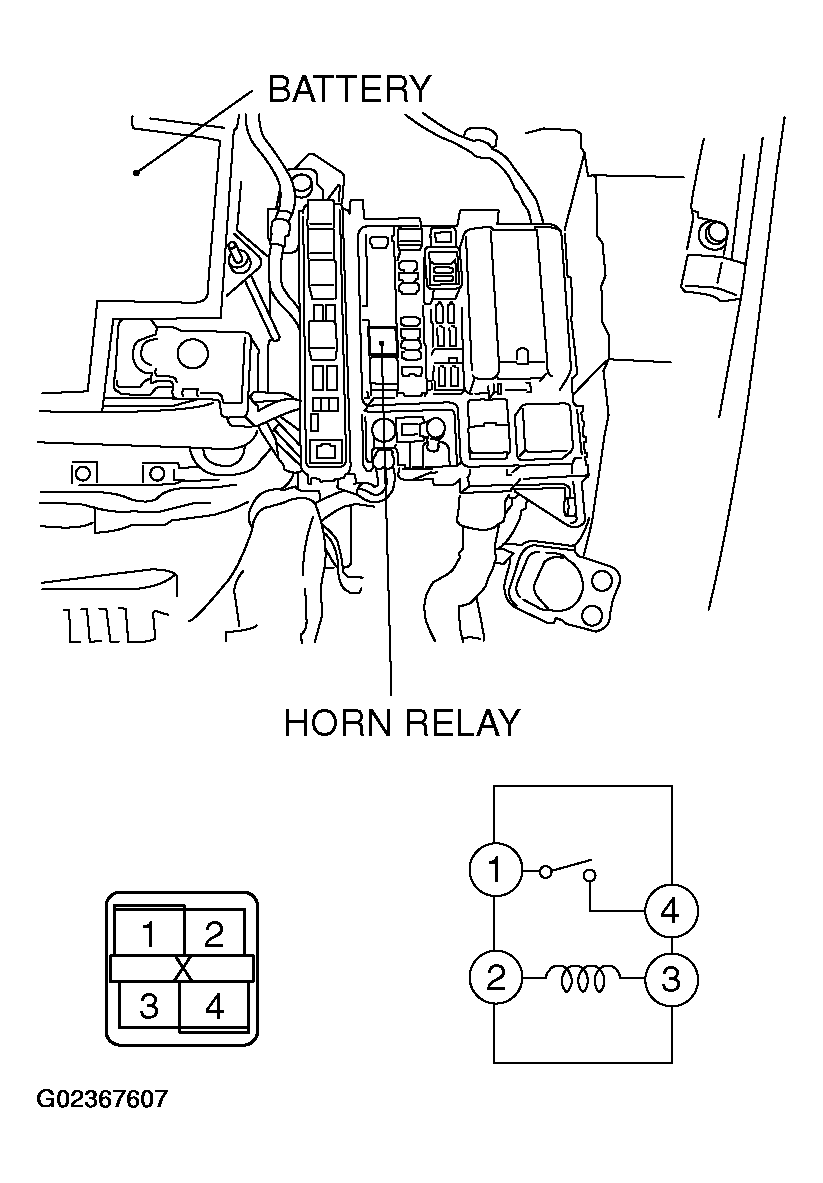

Fig 2: Checking Horn Relay
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
