Turn-Signal Light And Side Marker Bulb

  1. Disconnect the turn-signal and side marker connector.
  2. Remove the socket with the bulb by twisting it counterclockwise as shown.
    CAUTION: Do not touch the surface of the bulb with hands or dirty gloves as the bulb may fail after a short time. If the surface does become dirty, clean it with alcohol or thinner, and let it dry thoroughly before installing.

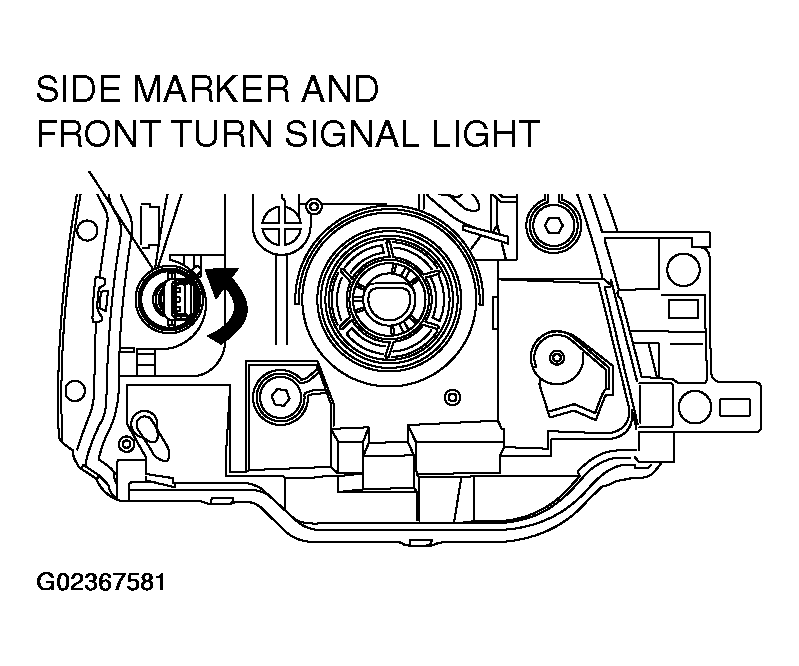

    Fig 1: Removing Socket Cover With Bulb
    G02367581Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. Pull out the bulb from the socket, and then replace the bulb.
  4. Install the socket to the headlight by push and twisting it clockwise.
