Bulb Replacement

  1. Disconnect the fog light connector behind the bumper.
  2. Remove the socket by twisting it counterclockwise.

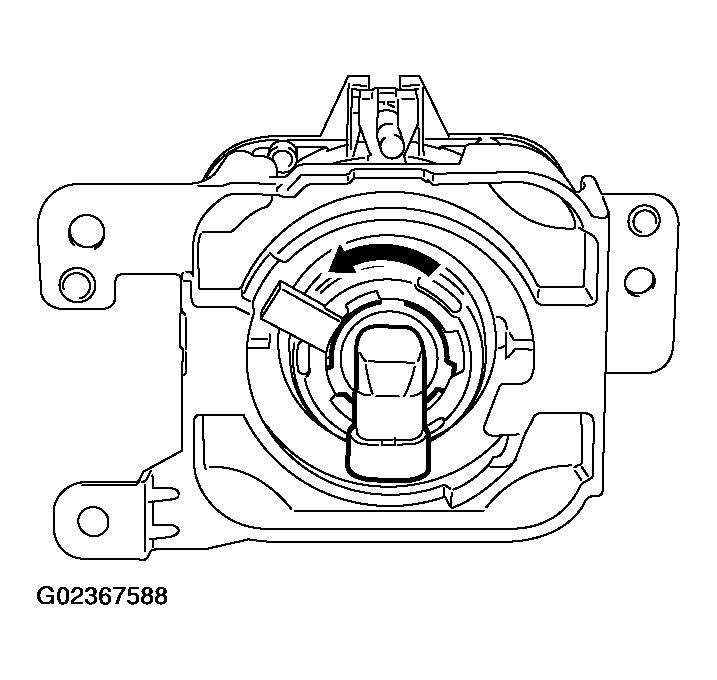

    Fig 1: Removing Socket
    G02367588Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. Replace the bulb, and then install the socket by twisting it clockwise.
