INSPECTION PROCEDURE 1: Communication with Scan Tool is not Possible.: Notes

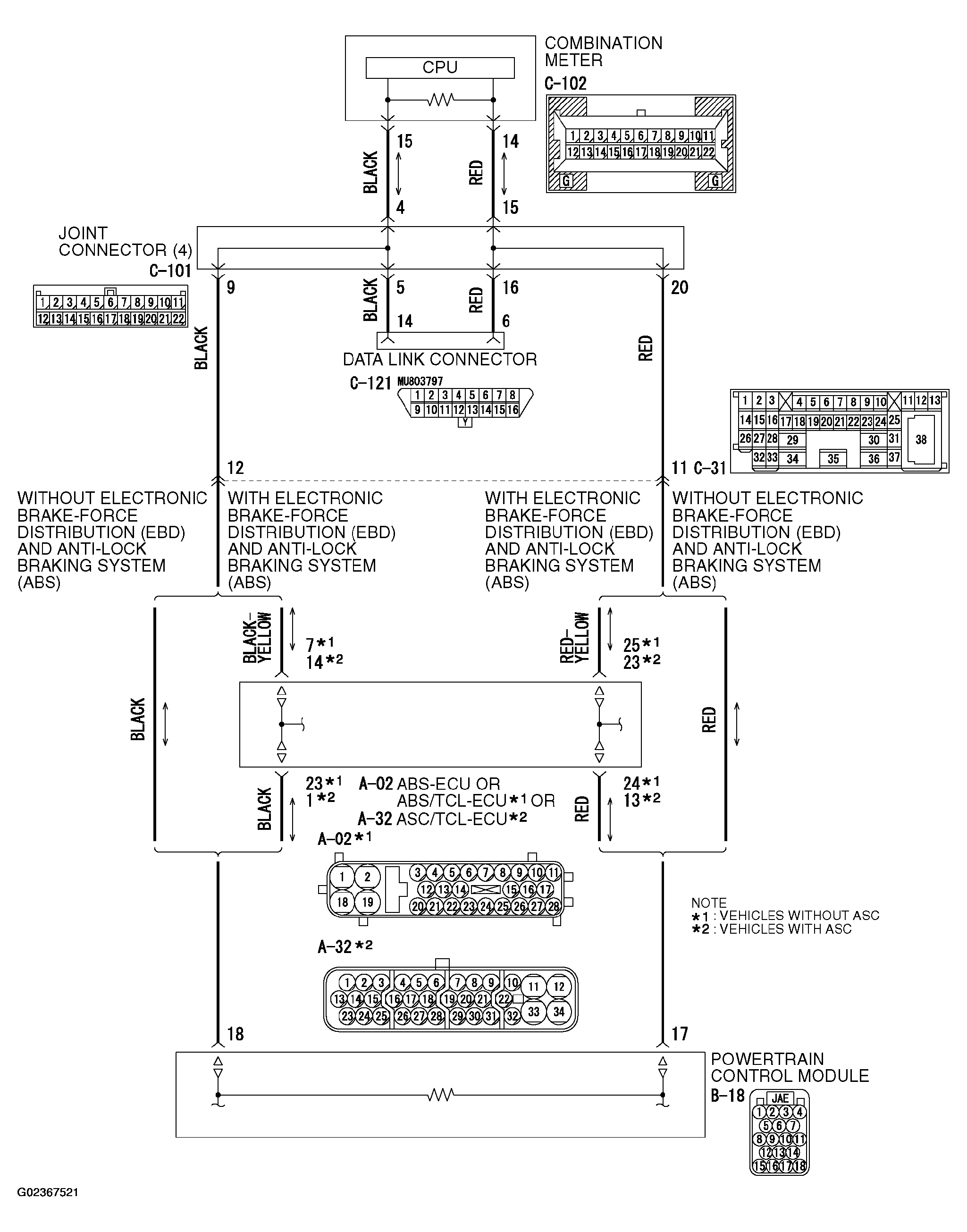

Fig 1: Data Link Connector Circuit Diagram & Connector Identification (1 Of 2)
G02367521Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

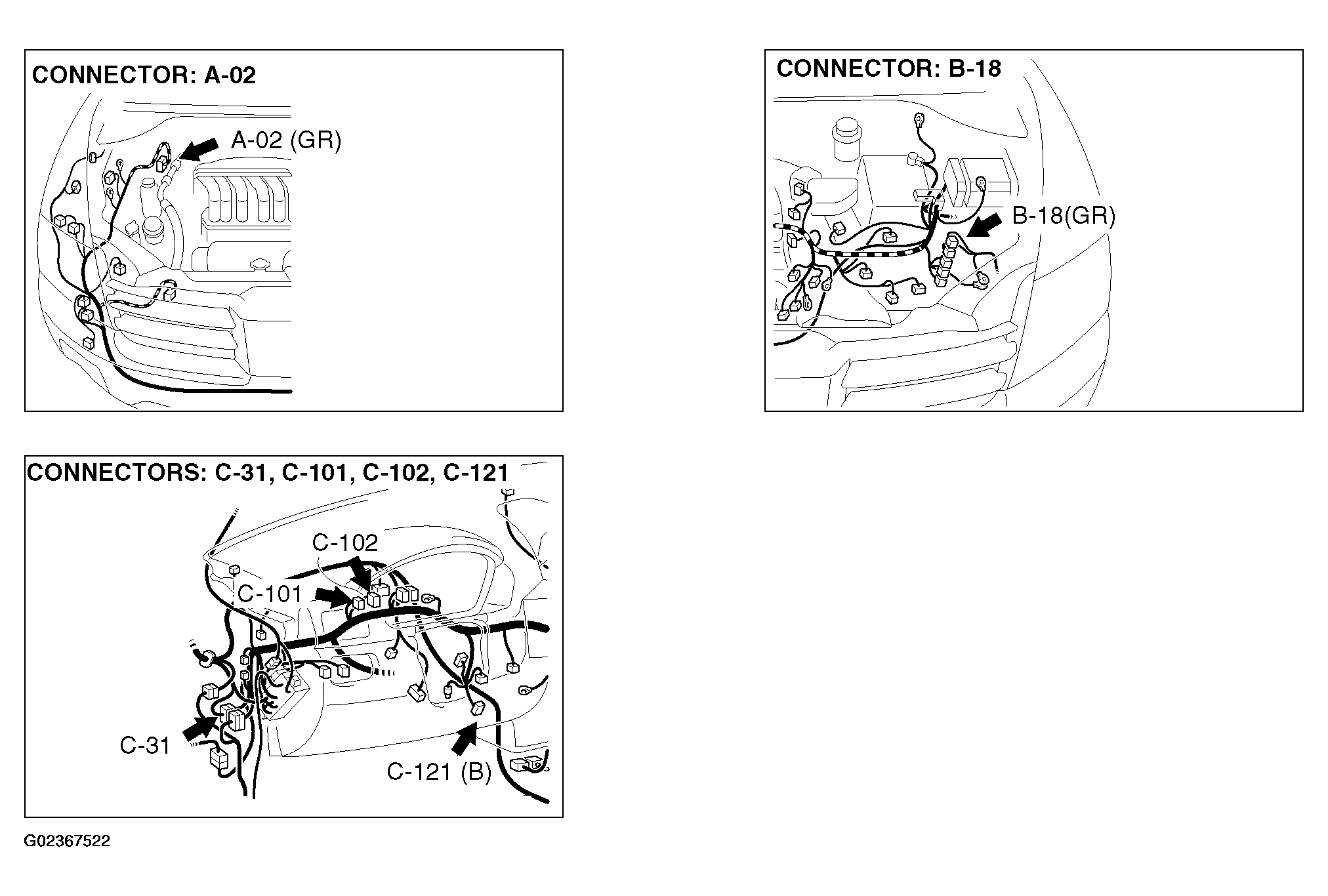

Fig 2: Data Link Connector Circuit Diagram & Connector Identification (2 Of 2)
G02367522Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
