DTC U1109: ETACS-ECU Time-out: Notes

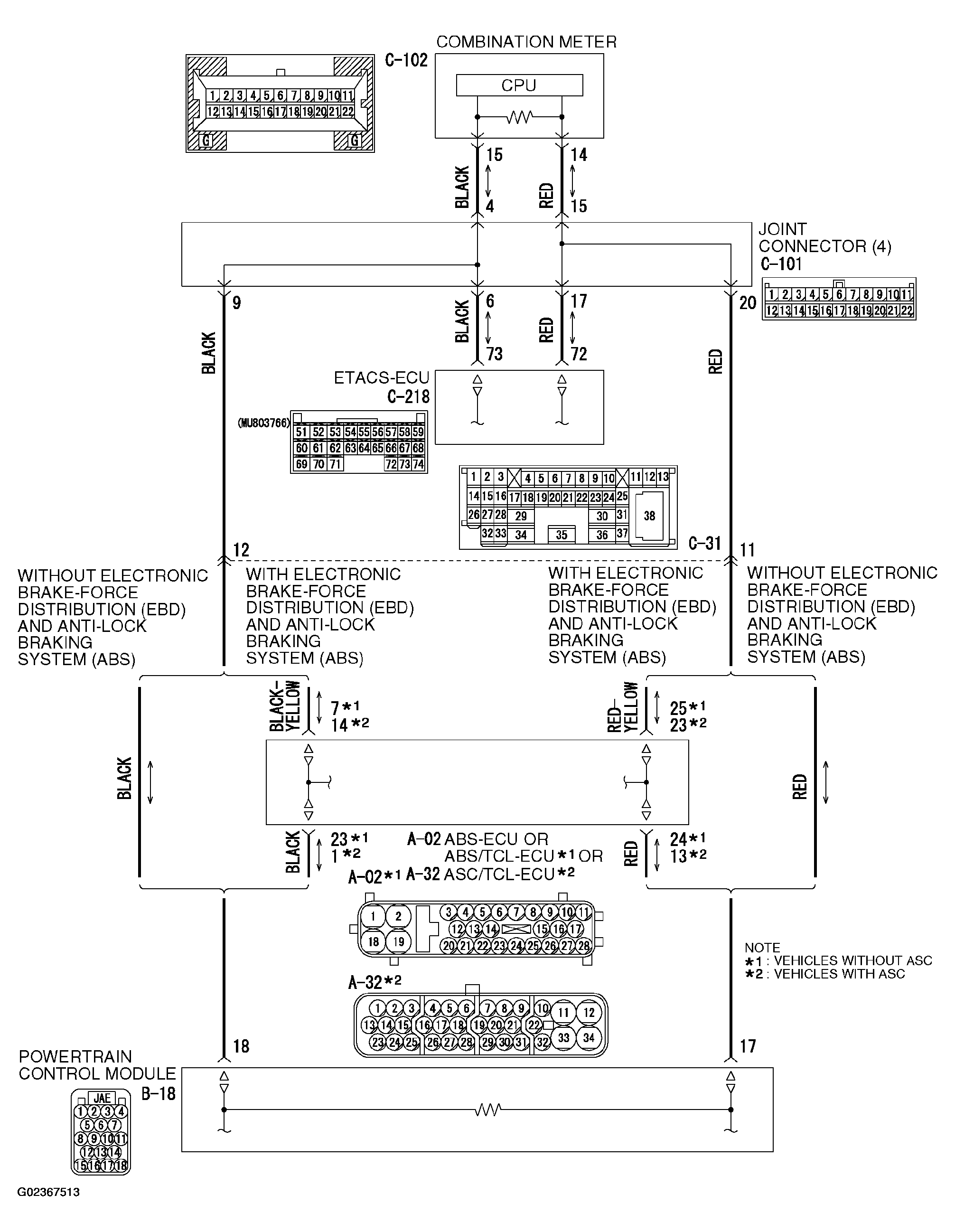

Fig 1: Time-Out During CAN Communication With ETACS-ECU Circuit Diagram & Connector Identification (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

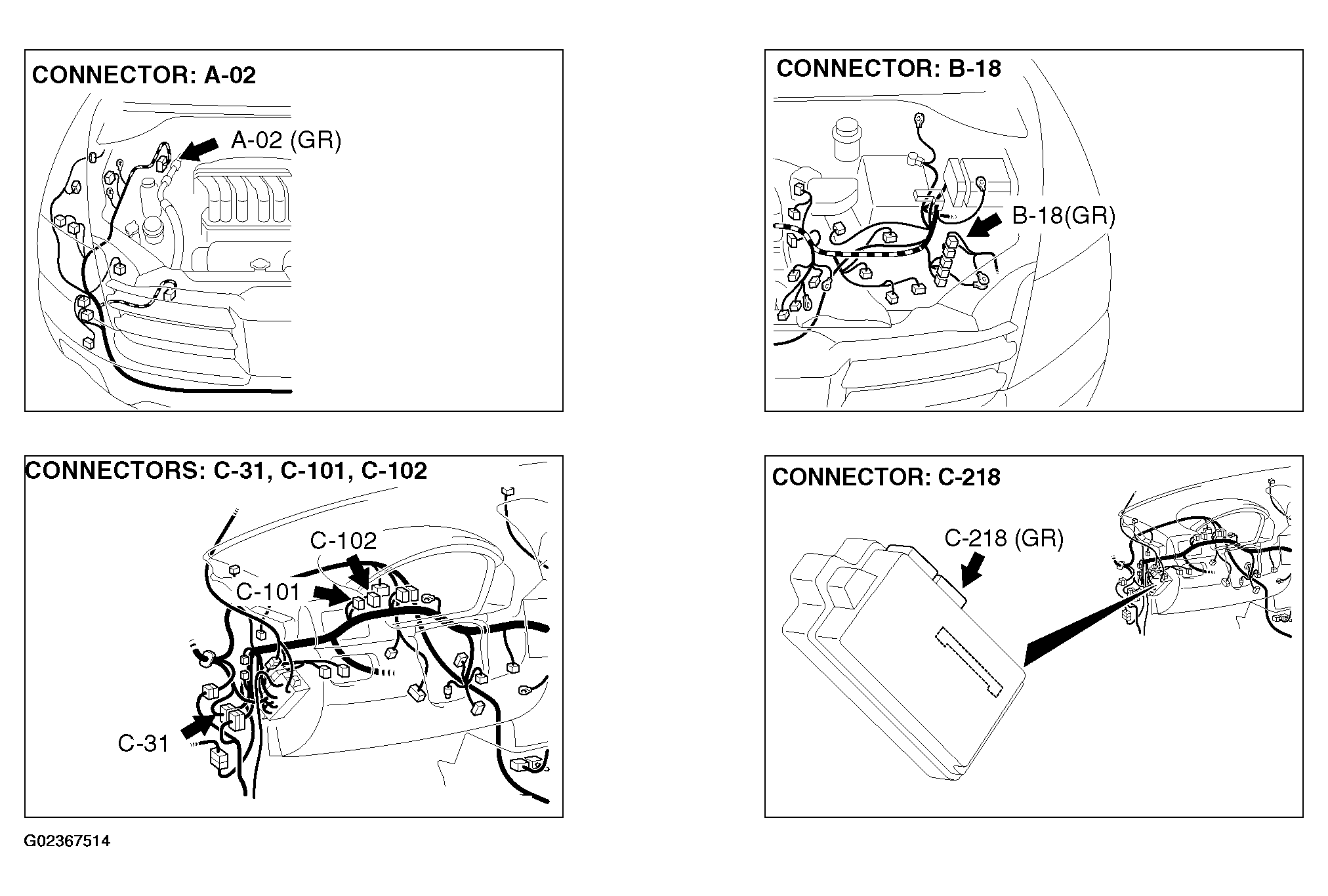

Fig 2: Time-Out During CAN Communication With ETACS-ECU Circuit Diagram & Connector Identification (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: If DTC U1109 is set in the combination meter, diagnose the CAN main bus line.

CAUTION: Whenever the ECU is replaced, ensure that the communication circuit is normal.
