DTC U1073: Bus Off: Diagnosis

Required Special Tools:

• MB991958: Scan Tool (MUT-III Sub Assembly)
  • MB991824: Vehicles Communication Interface (V.C.I.)
  • MB991827: MUT-III USB Cable
  • MB991911: MUT-III Main Harness A (Vehicles with CAN communication system)

1. STEP 1. Using scan tool MB991958, diagnose the CAN bus line.

   Use scan tool MB991958 to diagnose the CAN bus lines.

   1. Connect scan tool MB991958 to the data link connector.

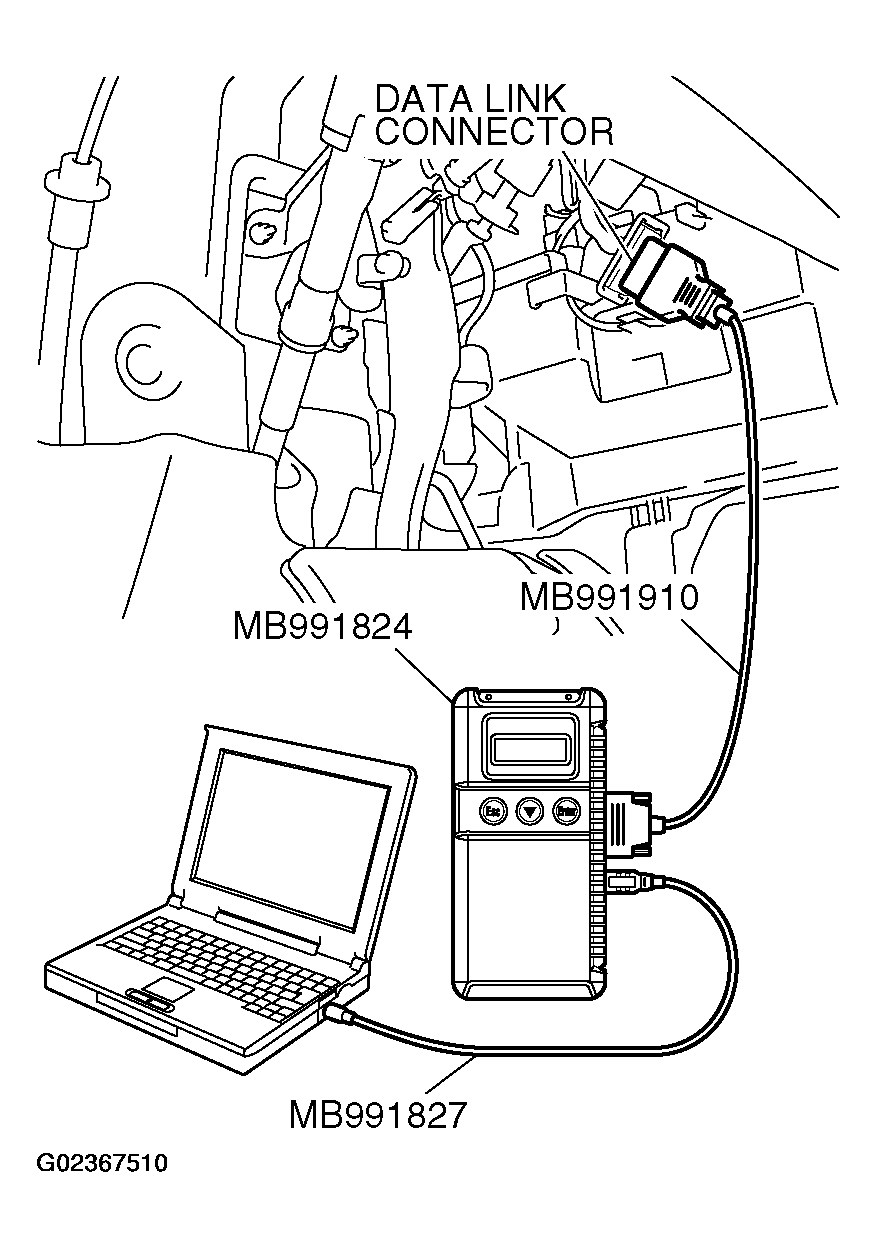

      Fig 1: Connecting Scan Tool To Data Link Connector

      Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
   2. Turn the ignition switch to "ON" position.
   3. Diagnose the CAN bus line.

   Q: Is the check result satisfactory?

   1. YES  : Go to Step 2.
   2. NO  : Repair the CAN bus lines (Refer to DIAGNOSIS-CAN BUS DIAGNOSTIC CHART < vehicles without advanced air bag > or < vehicles with advanced air bag>.)
2. STEP 2. Recheck for diagnostic trouble code.

   Recheck if the DTC is set.

   1. Erase the DTC.
   2. Turn the ignition switch to "ON" position.
   3. Check if the DTC is set.

   Q: Is the check result satisfactory?

   1. YES  : An intermittent malfunction is suspected. Refer to HOW TO USE TROUBLESHOOTING/INSPECTION SERVICE POINTS - HOW TO COPE WITH INTERMITTENT MALFUNCTION .
   2. NO  : Replace combination meter.
