Removal And Installation

CAUTION: SRS: Before removing and installing the seat belts with pretensioner, refer to SEAT BELT PRETENSIONER .

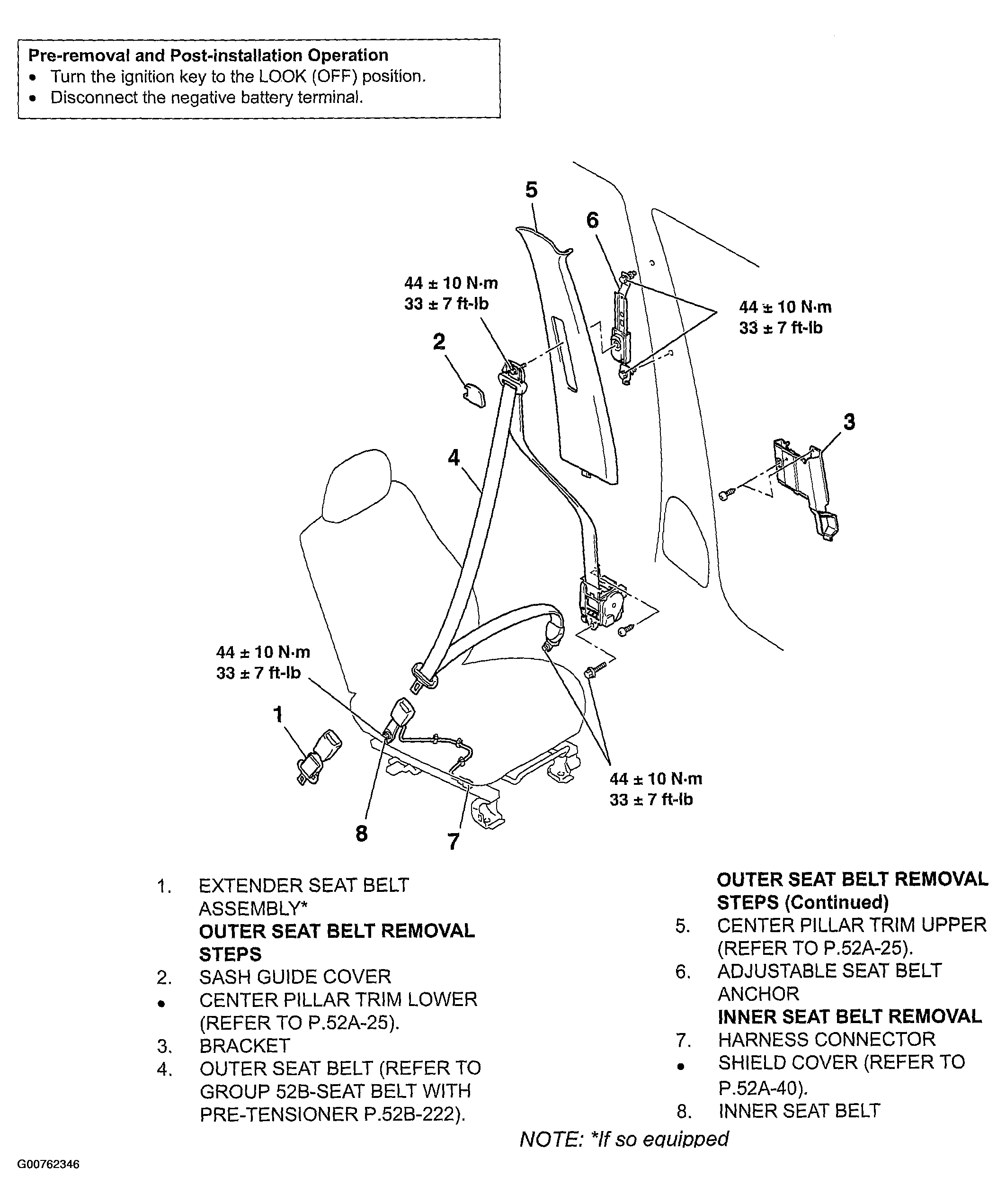

Fig 1: Identifying Front Seat Belt Components
G00762346Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
