Removal And Installation: Notes

CAUTION: Refer to AIR BAG SAFETY PRECAUTIONS before the removal and installation of front seat assembly of side-air bag modules.

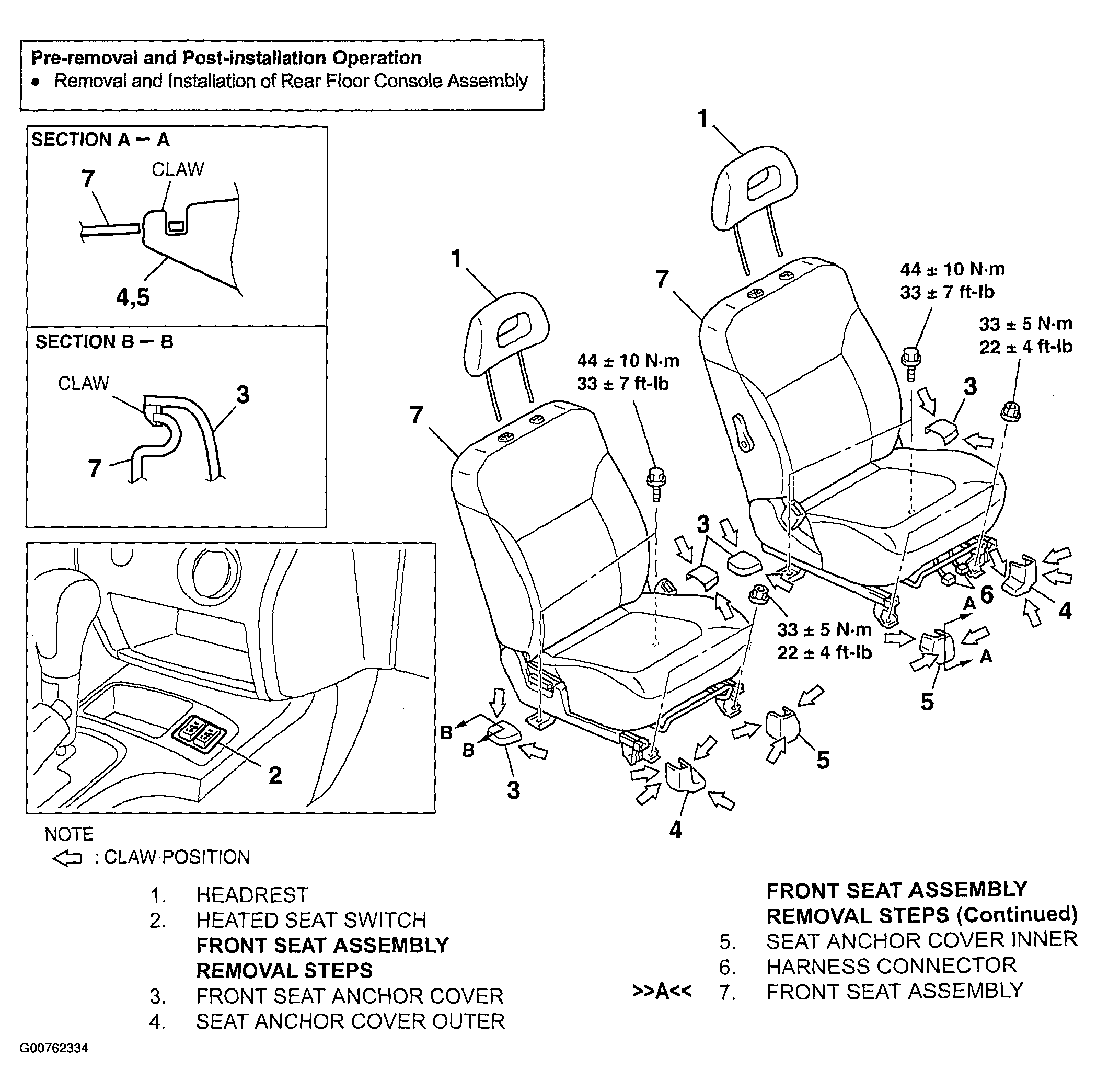

Fig 1: Identifying Front Seat Assembly Components
G00762334Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
