Continuity Test Of Heated Seat Switch

  1. Check for continuity between terminals.
    Fig 1: Identifying Heated Seat Switch Terminals
    G00762336Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Check that the indicator is lighted at HI or LO when battery voltage is supplied to terminal 5, and terminal 8 is grounded.
  3. Check that indicator is lighted when battery voltage is supplied to terminals 2 and 6.

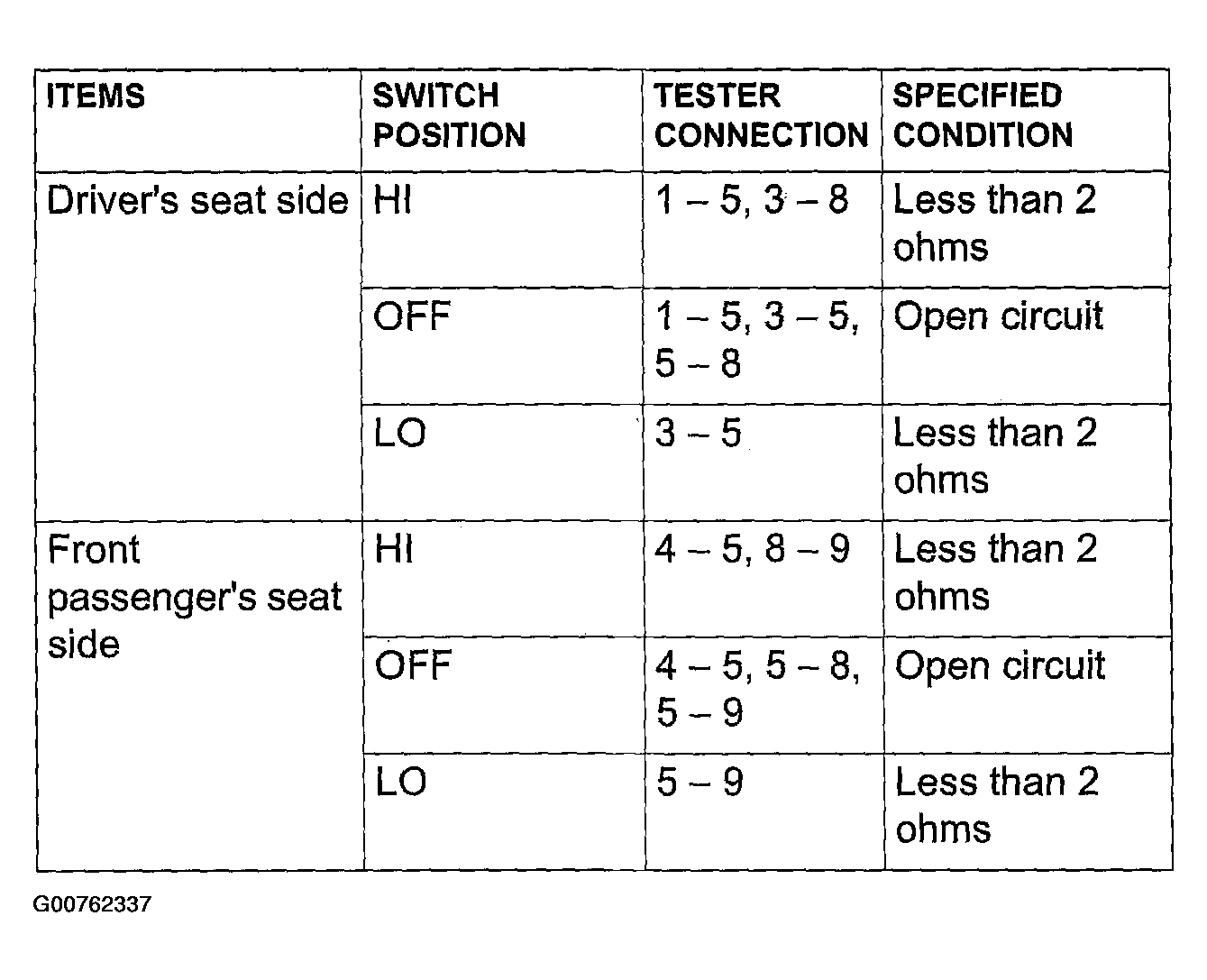

    Fig 2: Heated Seat Switch Continuity Test
    G00762337Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
