Hydraulic Brake Booster: Notes
CAUTION:
DO NOT disassemble, throw into fire, cut, weld, drop, or shock accumulator without purging high pressure nitrogen gas.
NOTE:

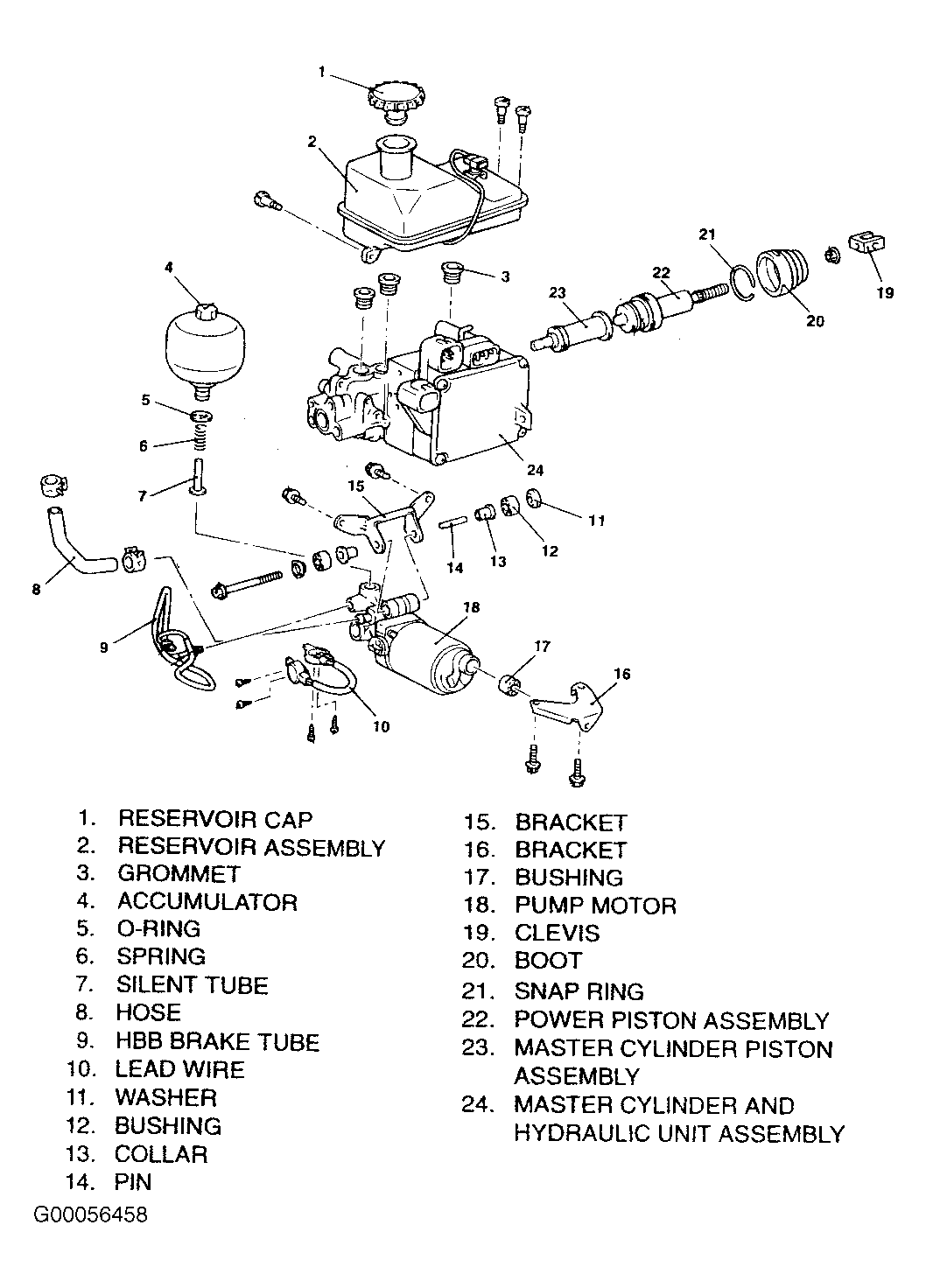

For overhaul of Hydraulic Brake Booster (HBB) refer to Fig 1
,
