Removal And Installation

WARNING: For removal and installation of the passenger's side air bag module, always observe the service procedures described in DRIVER-SIDE AIR BAG MODULE & CLOCKSPRING .

The bolts and screws described below are used for installation of the instrument panel. They are indicated by symbols in the illustration.

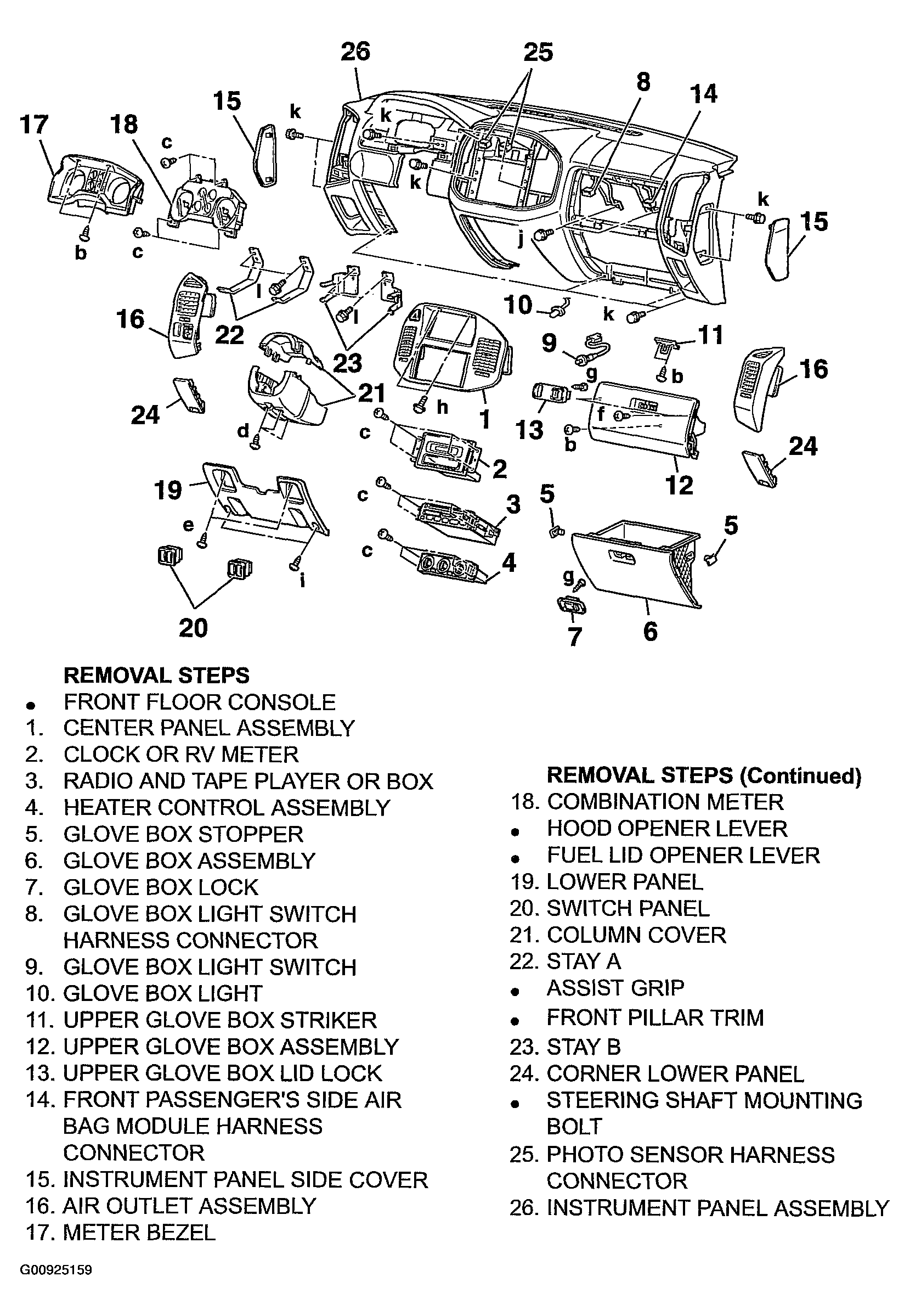

Fig 1: Identifying Instrument Panel Fasteners (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

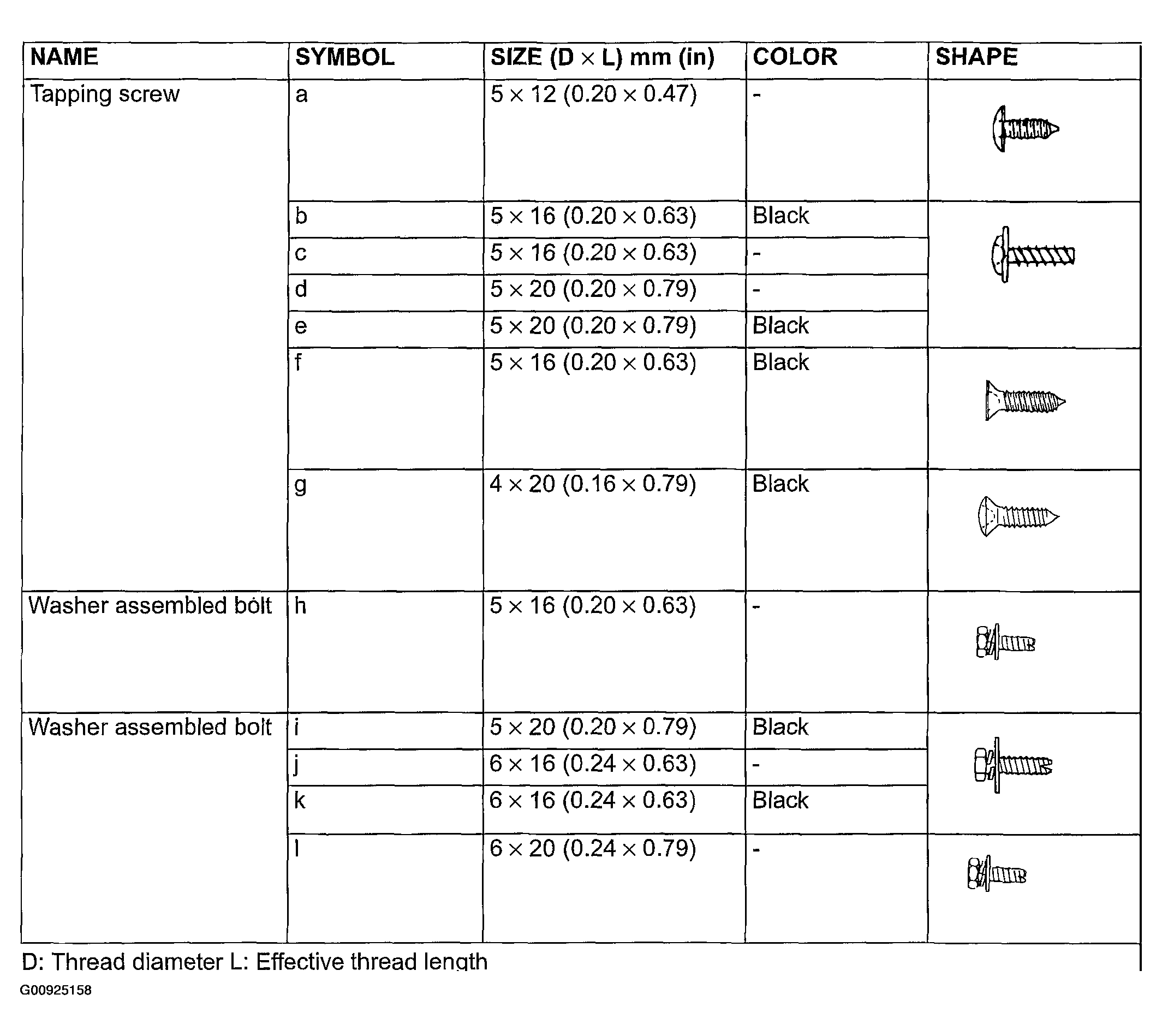

Fig 2: Identifying Instrument Panel Fasteners (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
