Combination Meter Assembly And Vehicle Speed Sensor
>>
Special Tools
Special Tools

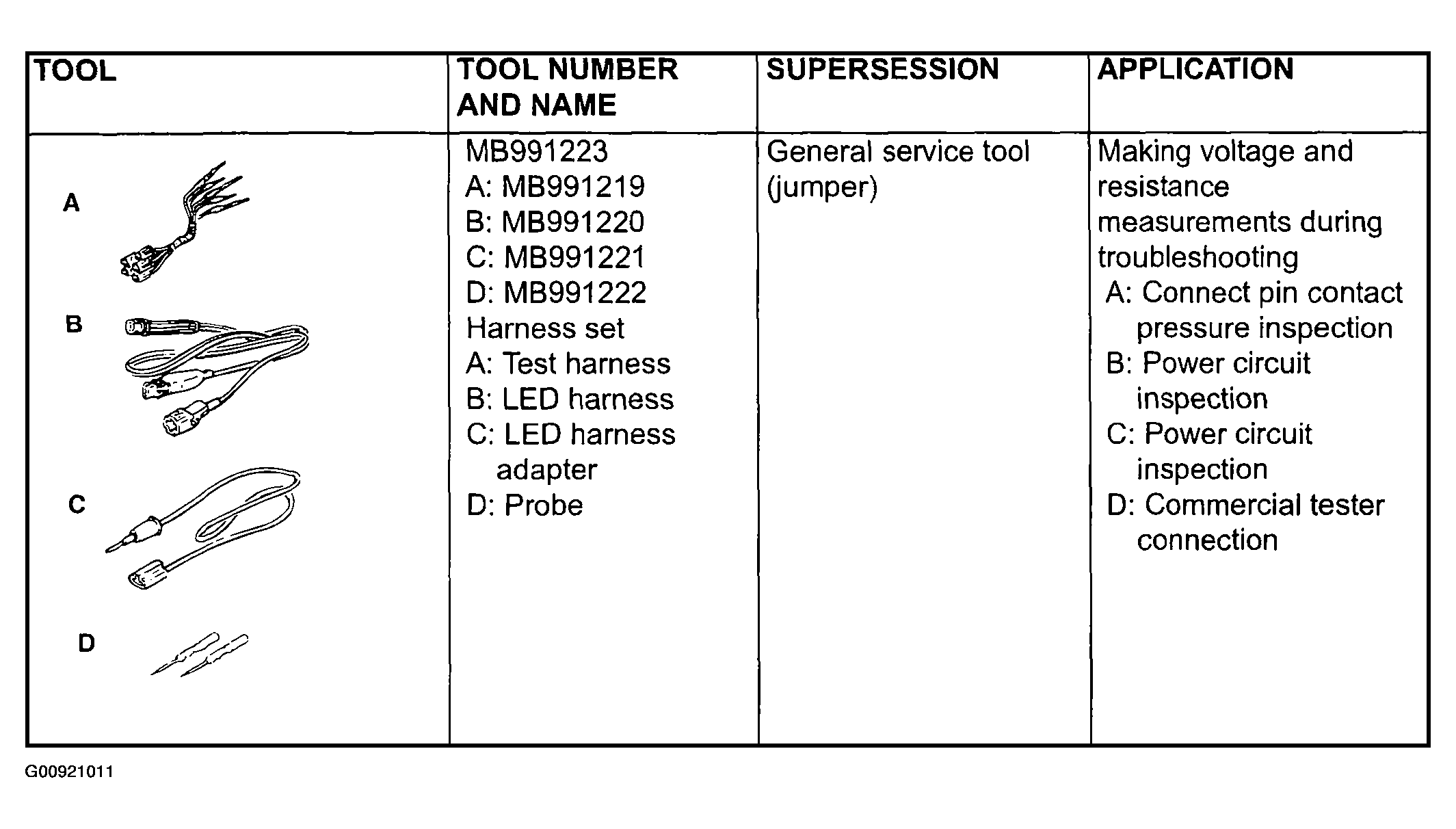

Fig 1: Special Tools Specifications (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

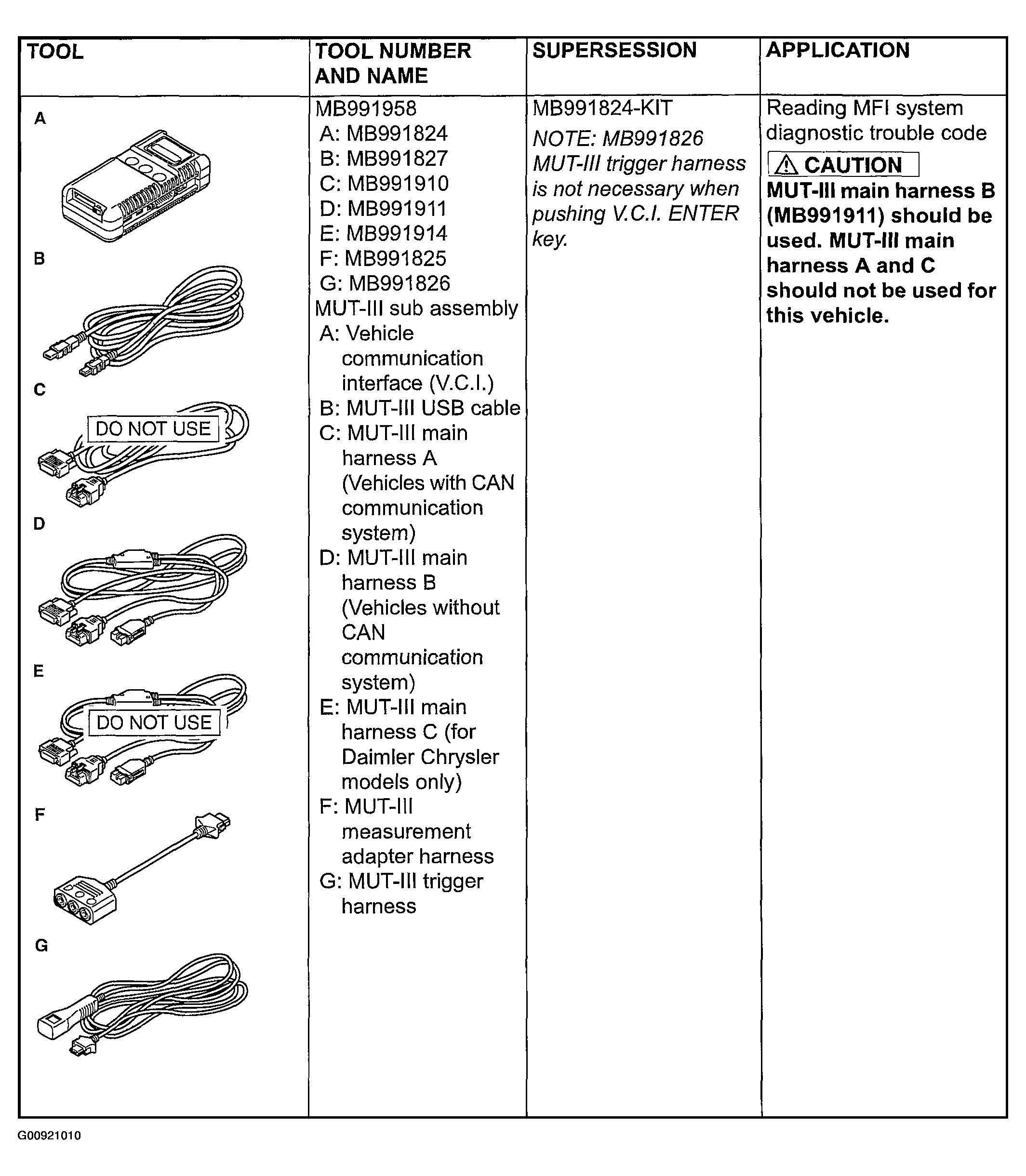

Fig 2: Special Tools Specifications (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
