INSPECTION PROCEDURE 3: Fuel Gauge does not Work: Notes

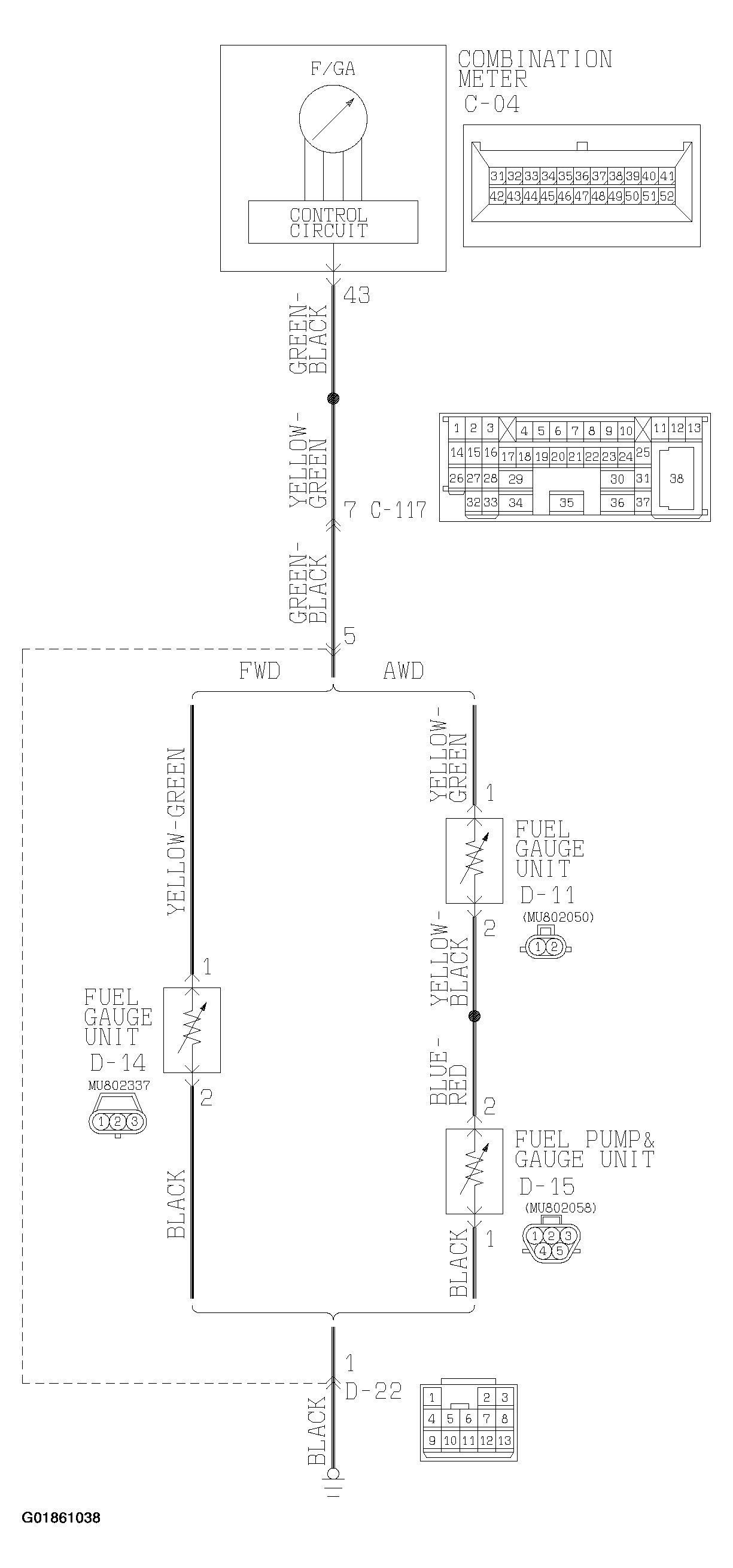

Fig 1: Fuel Gauge Circuit Diagram
G01861038Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

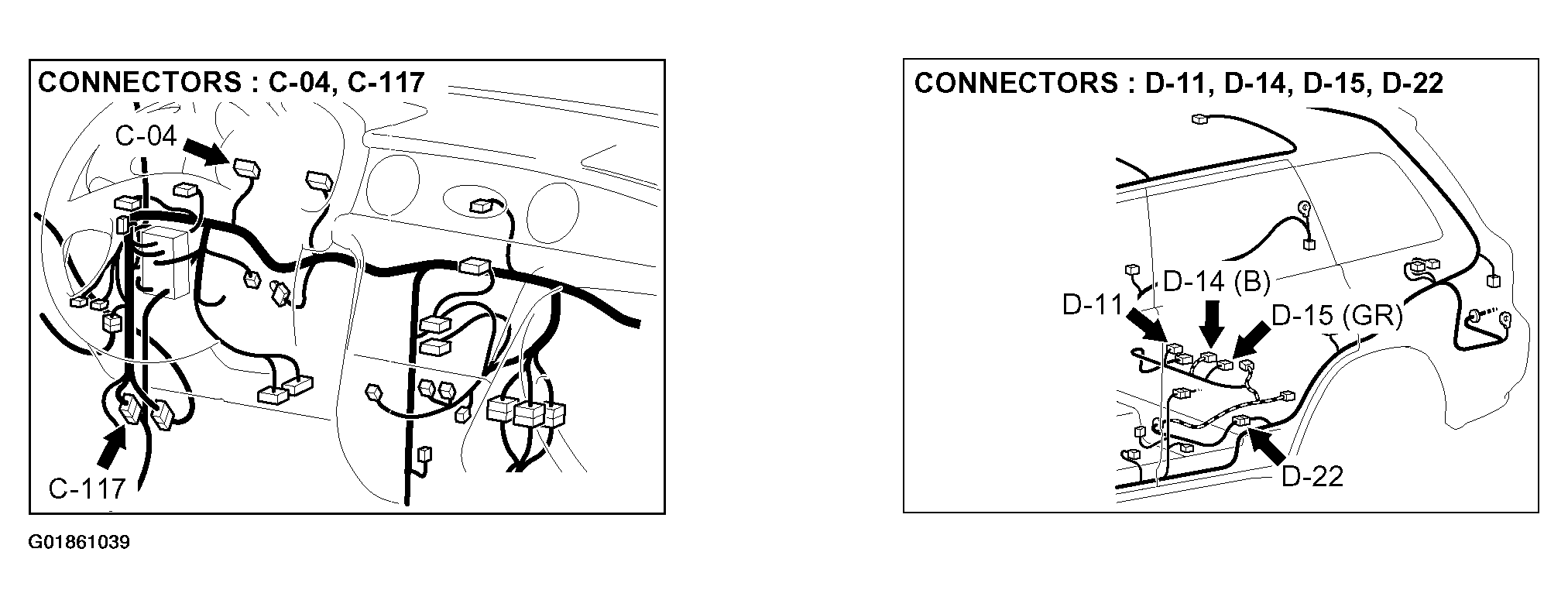

Fig 2: Fuel Gauge Circuit Harness Connector
G01861039Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
