Circuit Description

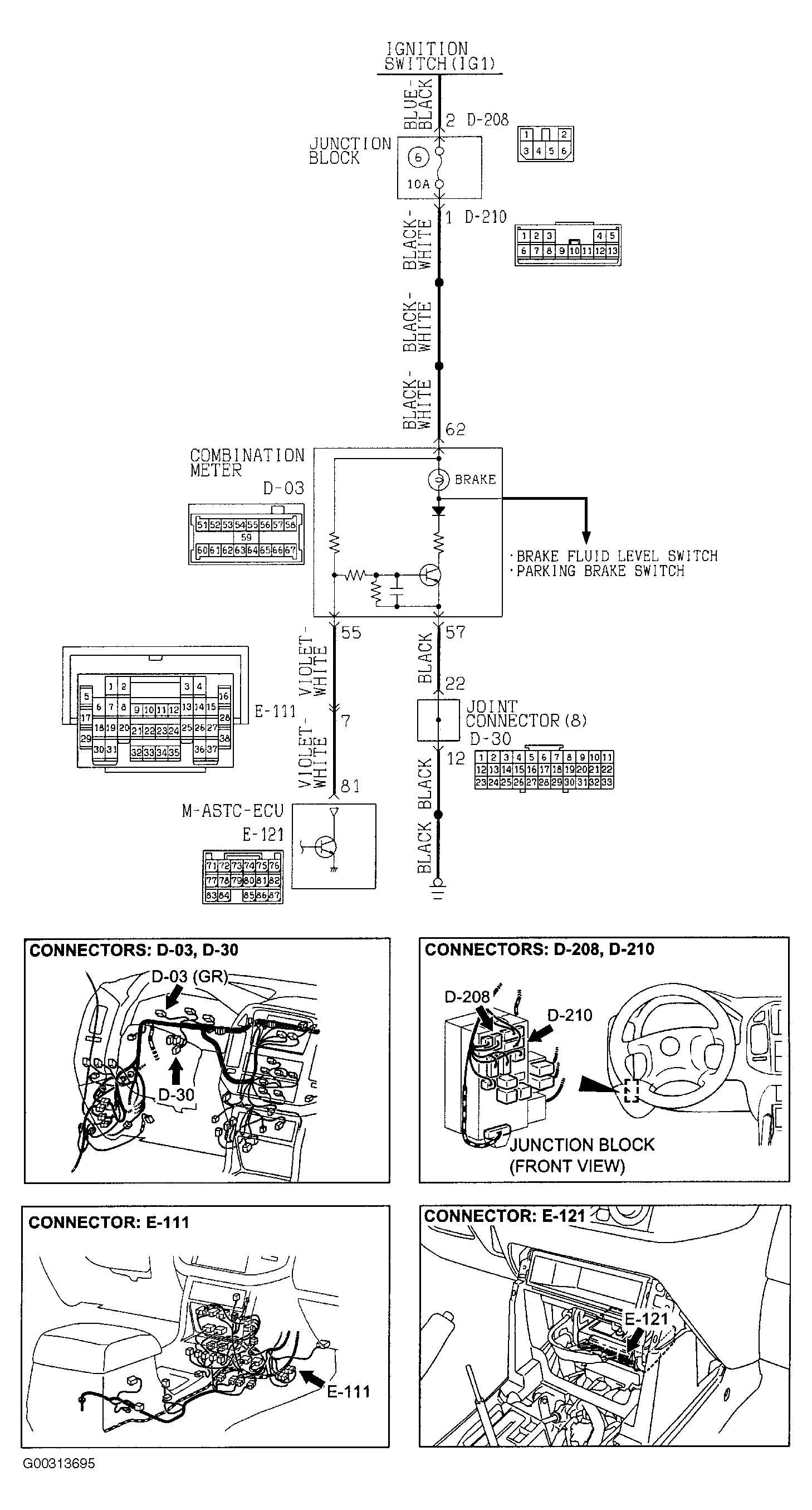

When the power transistor in the M-ASTC-ECU is off or the circuit between the M-ASTC-ECU and the combination meter is open, the power transistor in the combination meter will turn on to illuminate the brake warning light. For circuit identification and location of connectors, see Figure .
