Circuit Description

The pump motor operates if the motor relay A or motor relay B turns on. The M-ASTC-ECU monitors the pump motor (at terminal 25). See Fig 1 .

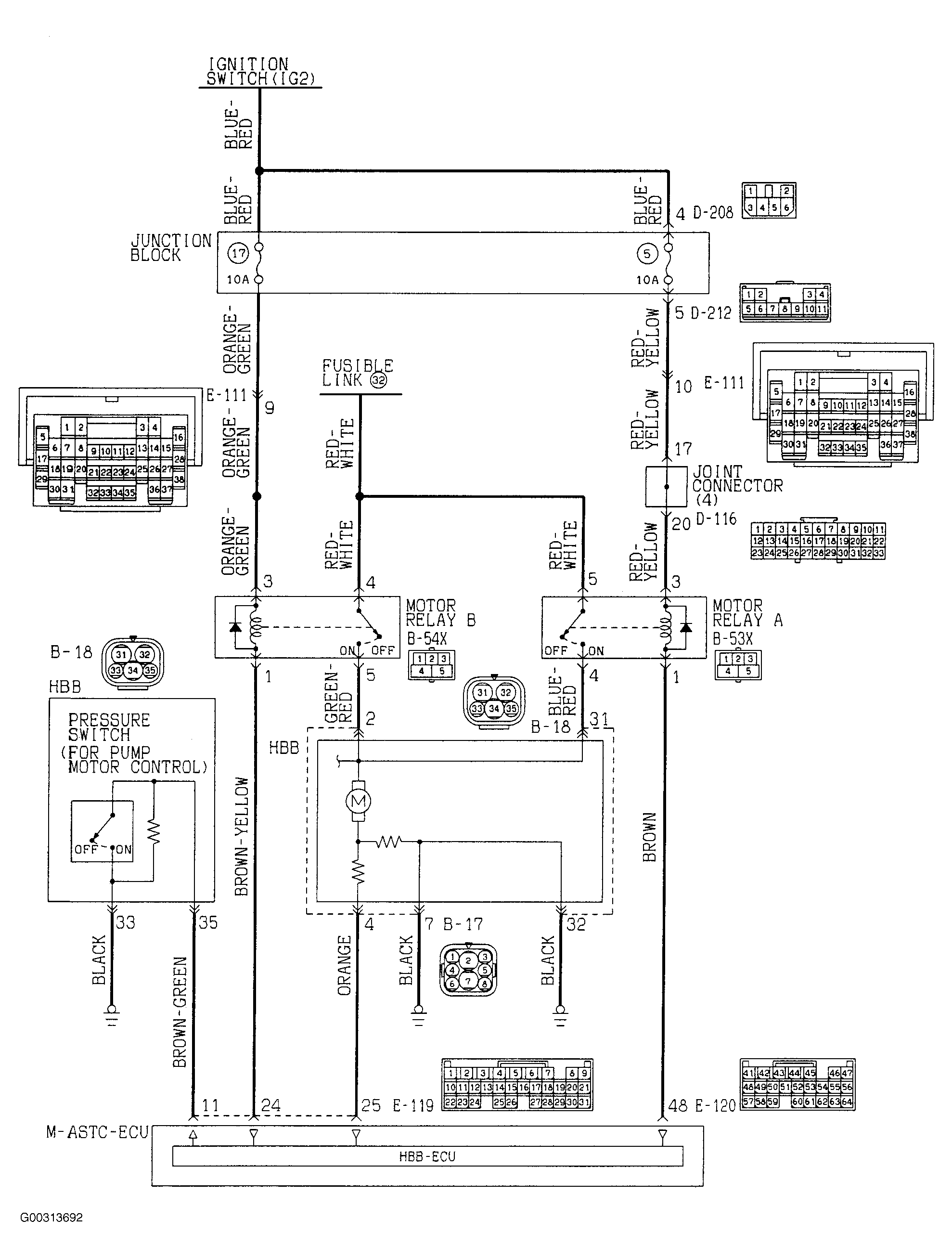

Fig 1: Identifying Pump Motor Control Circuit

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
