Circuit Description

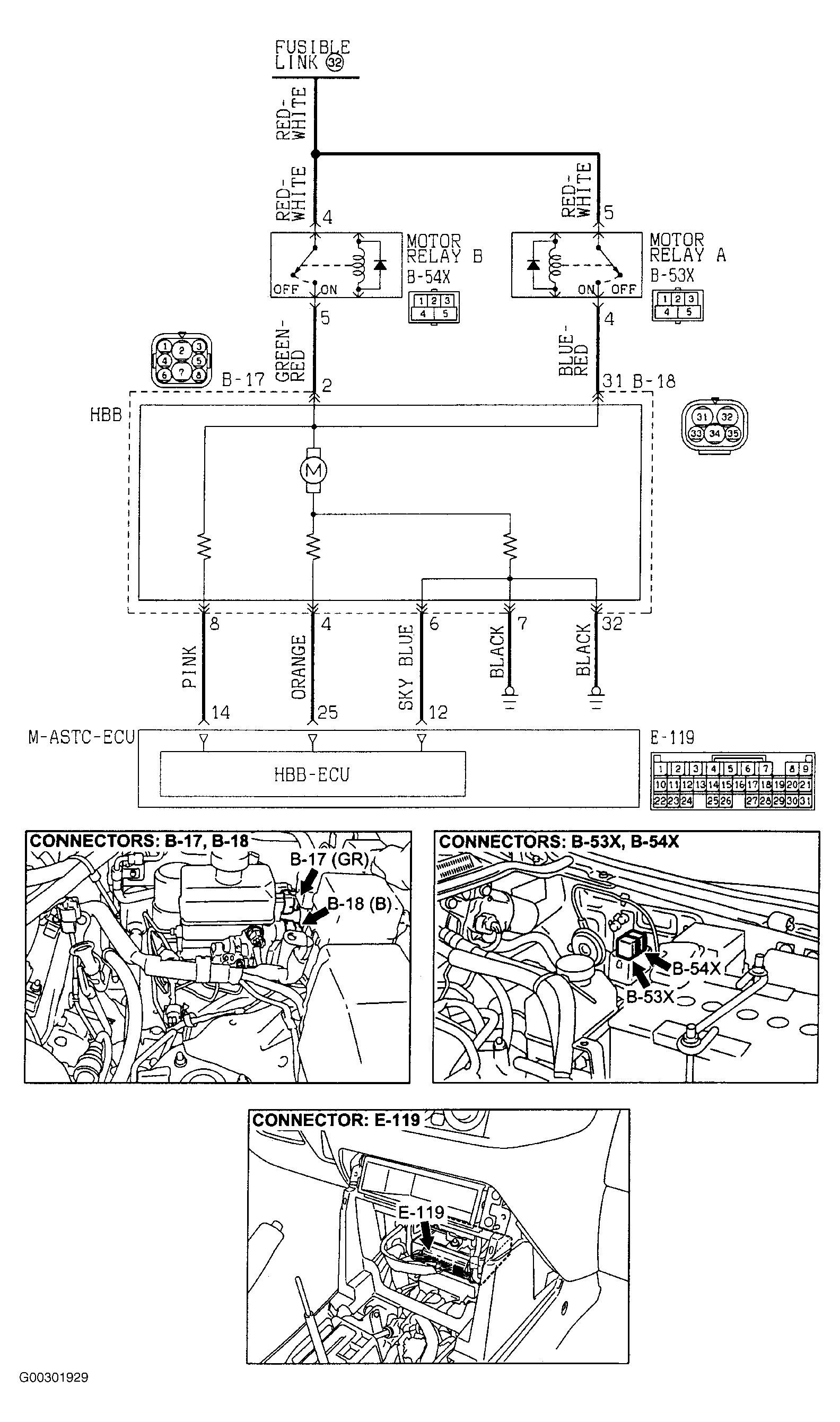

The pump motor operates if the motor relay A or motor relay B turn to ON. The M-ASTC-ECU monitors the pump motor (at 25 terminal). The M-ASTC-ECU monitors the power supply current for the pump motor at 14 terminal, and ground current at 12 terminal, respectively, to know whether the pump motor is locked or not. See Fig 1 .
