INSPECTION PROCEDURE 3: The Abnormal Drive Range is Displayed.: Notes

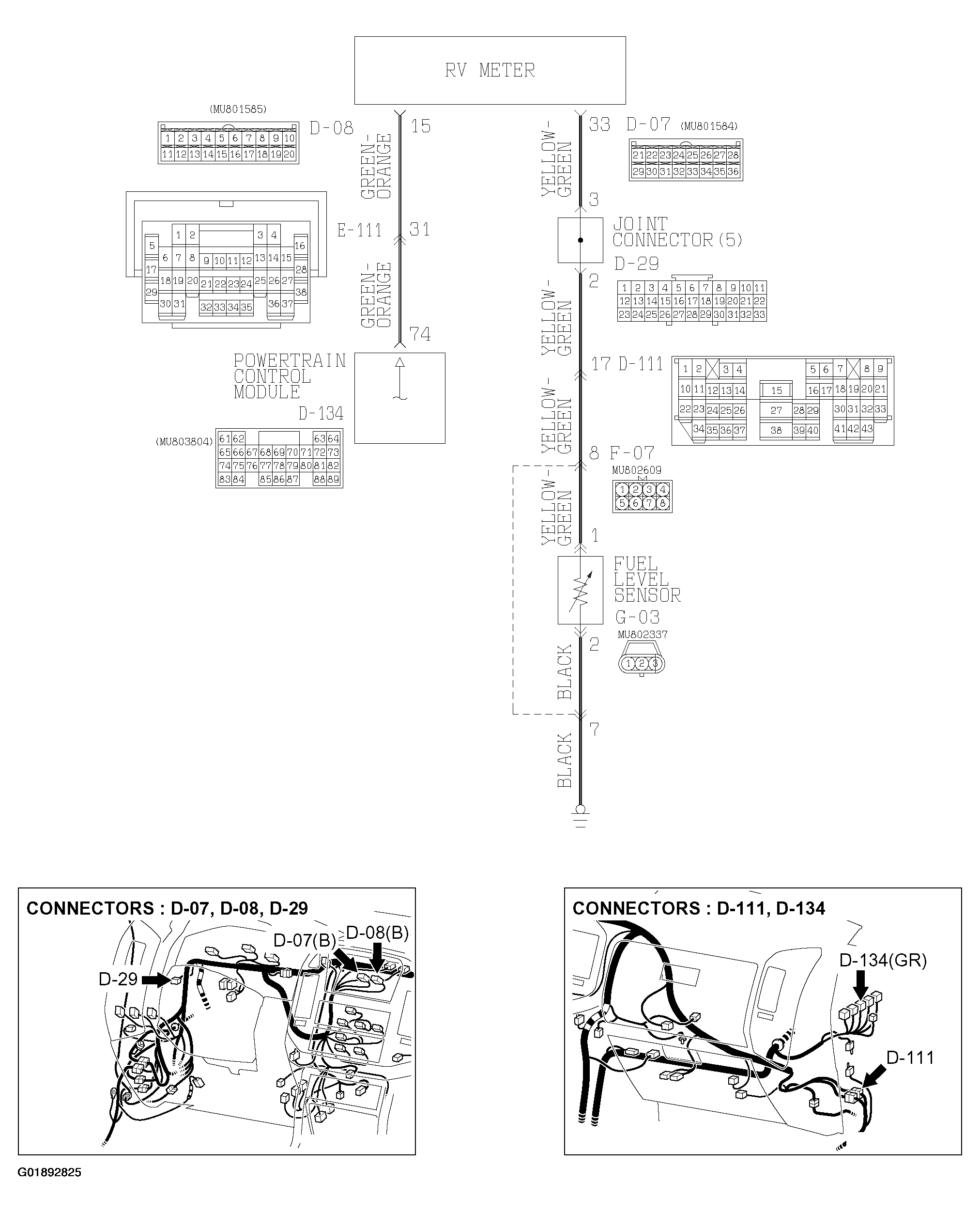

Fig 1: Range Distance Display Circuit Diagram
G01892825Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

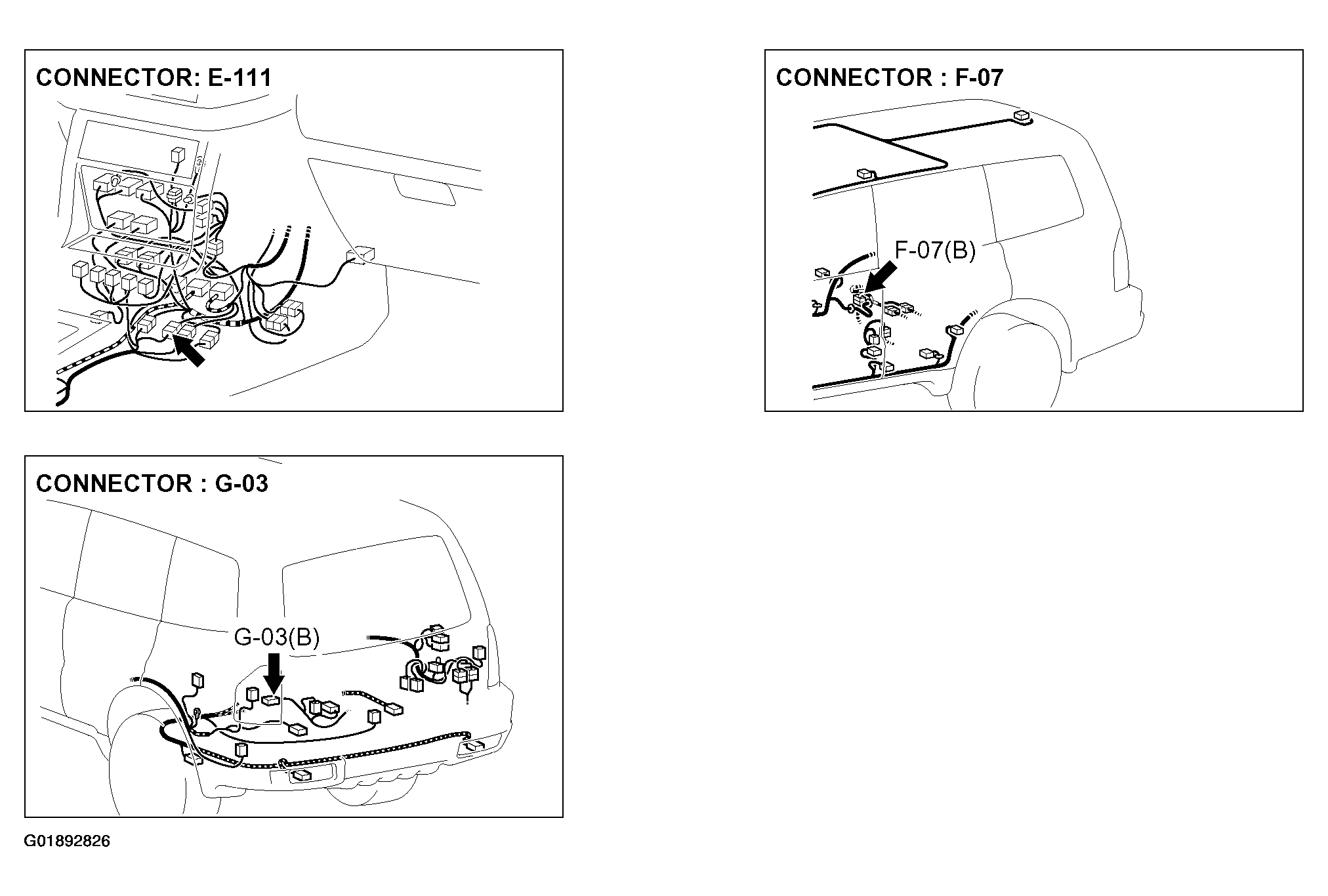

Fig 2: Range Distance Display Circuit Connectors
G01892826Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
