INSPECTION PROCEDURE 2: The Low Battery Warning Screen is Displayed.: Notes

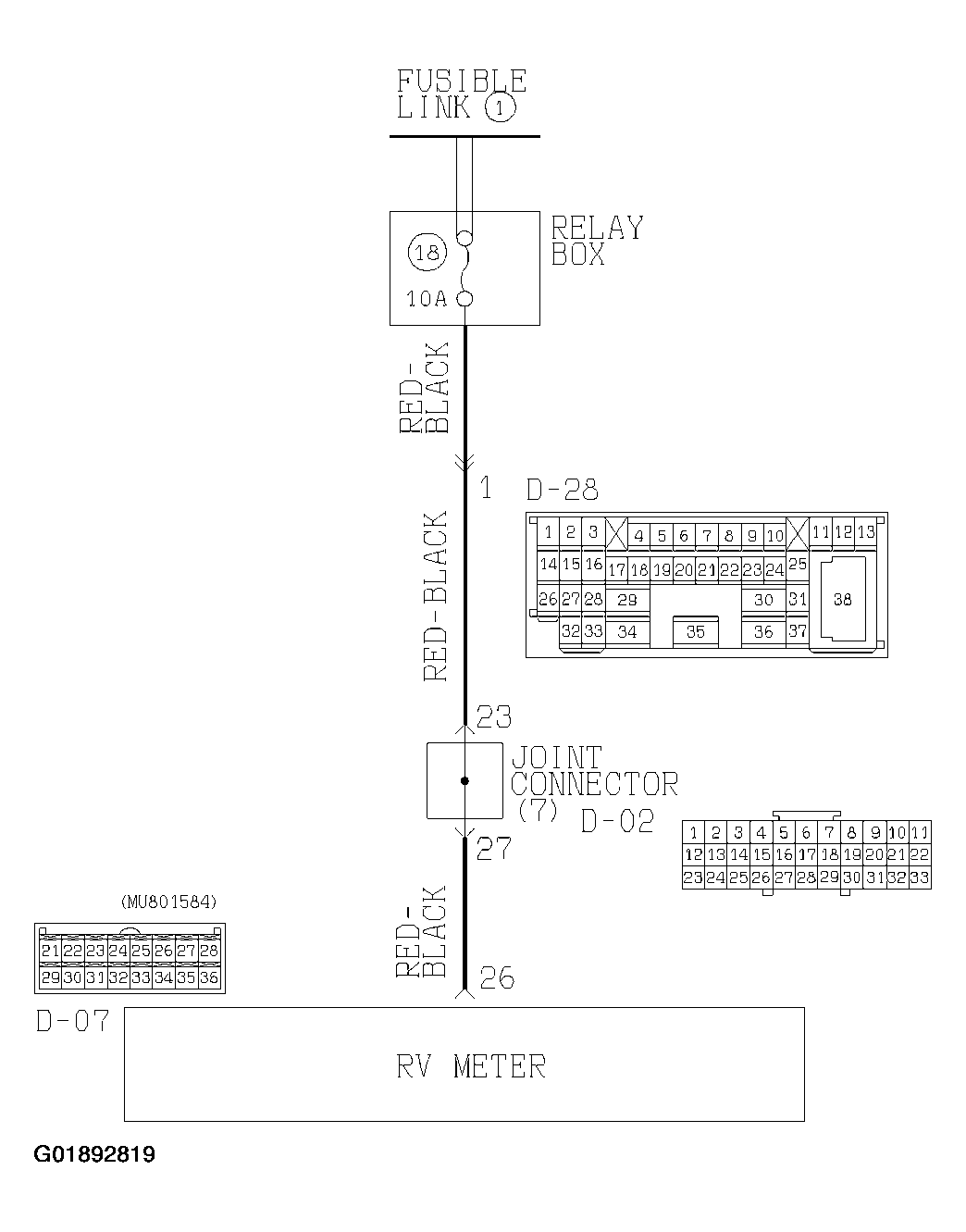

Fig 1: RV Meter Power Supply Circuit Diagram
G01892819Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

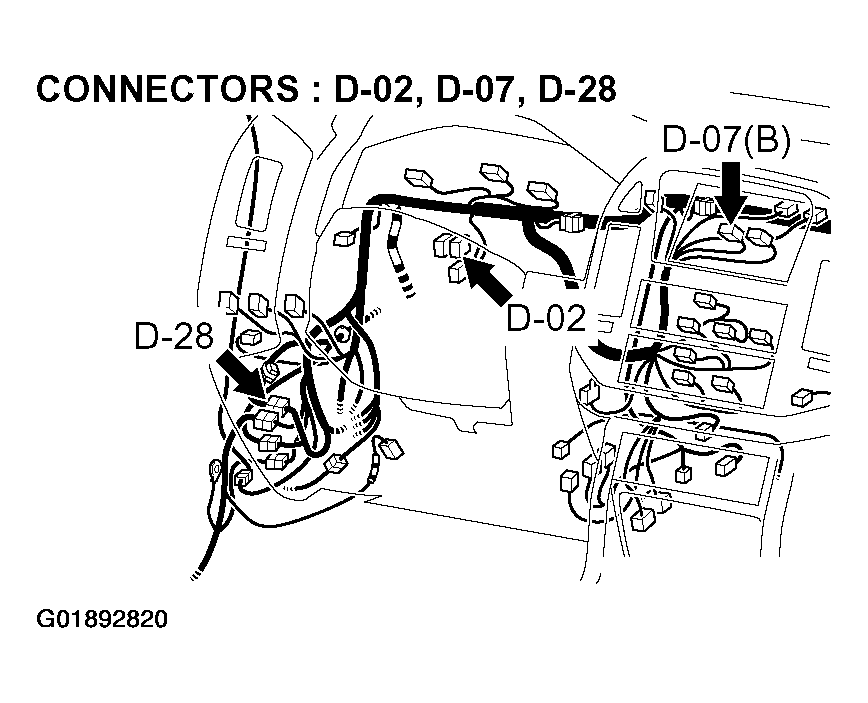

Fig 2: RV Meter Power Supply Circuit Connectors
G01892820Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
