Clip & Claw Positions

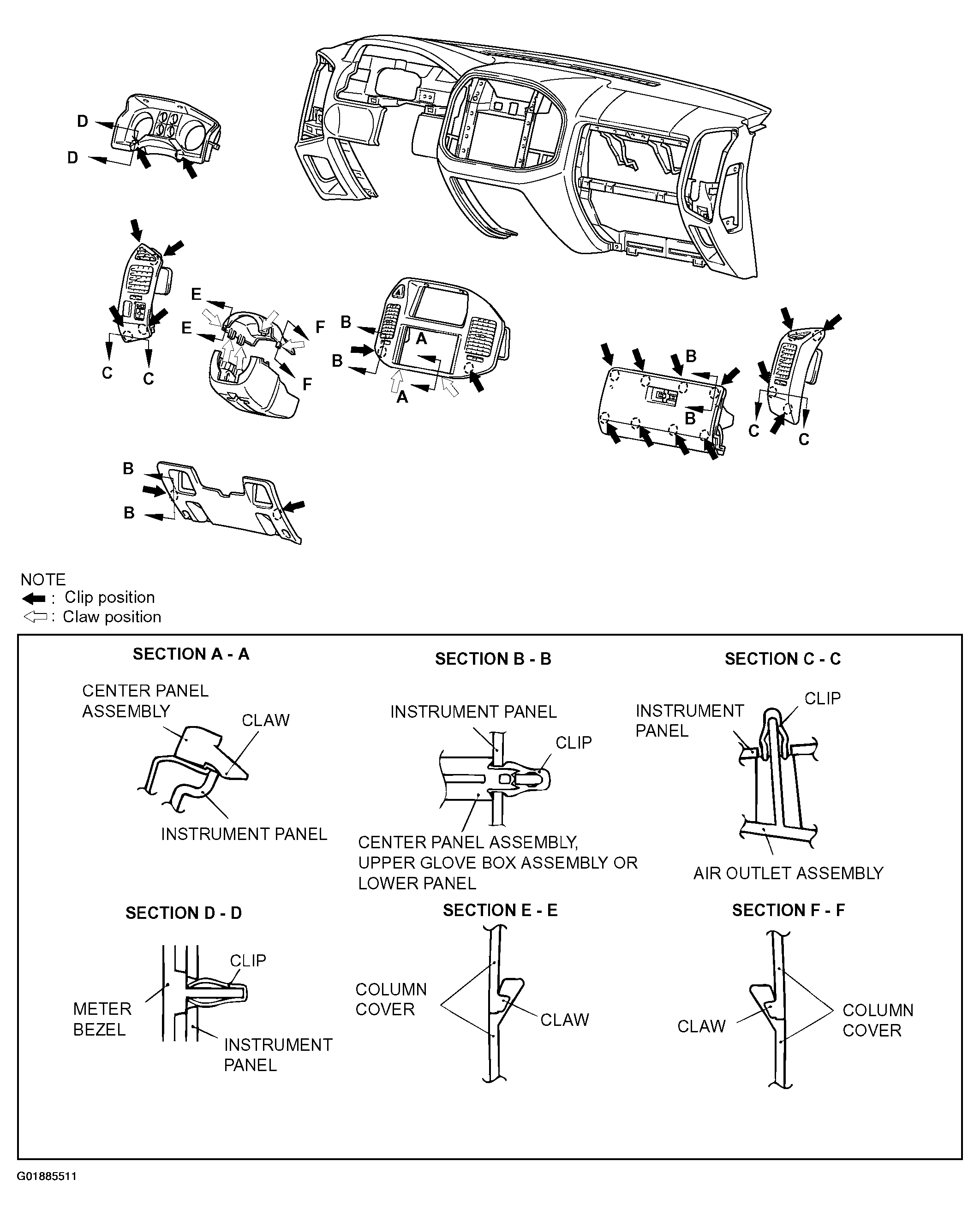

Fig 1: Locating Instrument Panel Assembly Clip & Claw Installed Position & Types

G01885511

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
