Disassembly & Assembly

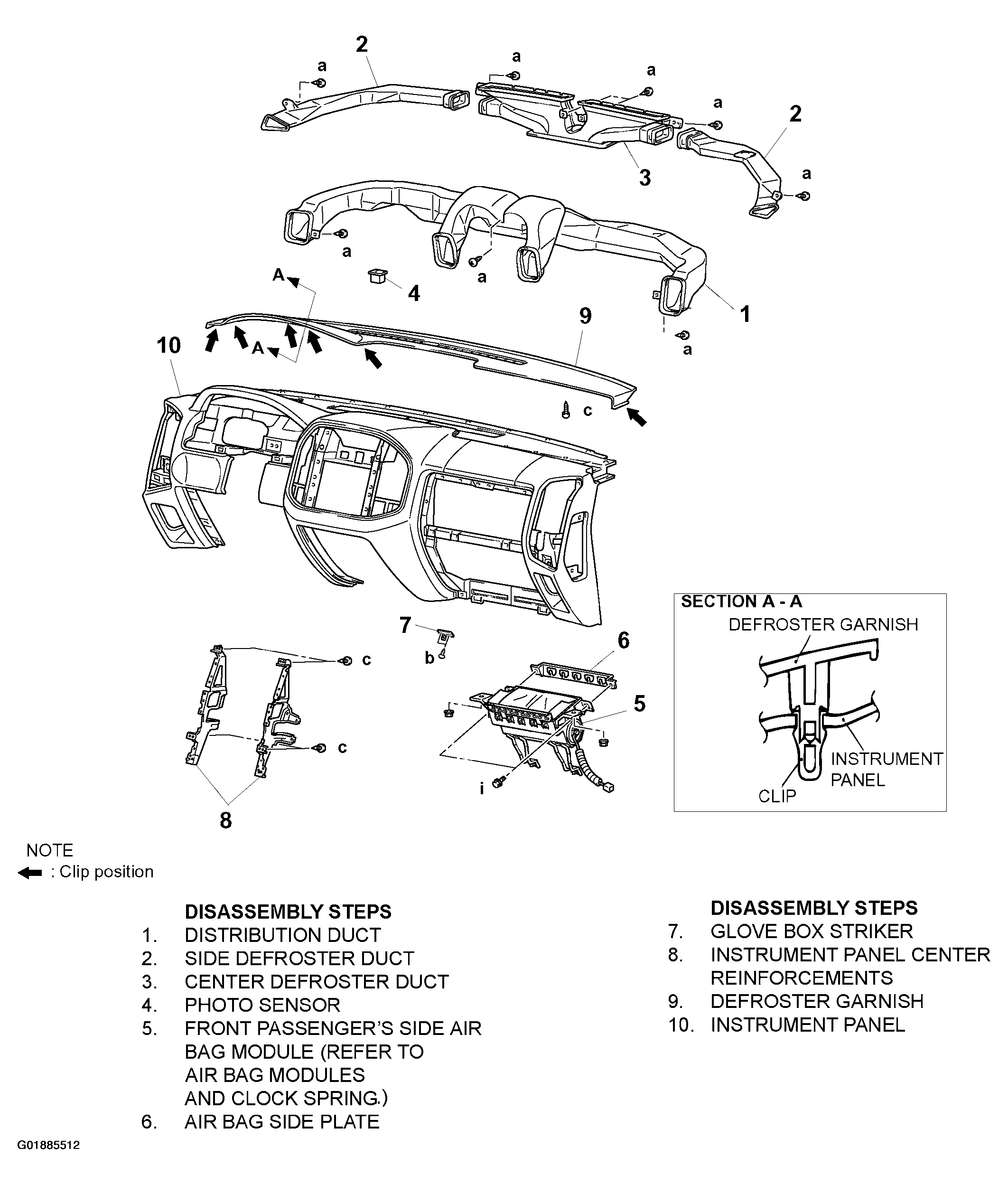

Fig 1: Exploded View Of Instrument Panel Assembly

G01885512

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
