Combination Meter Internal Resistance Check

Measure the resistance between terminals using an ohmmeter.

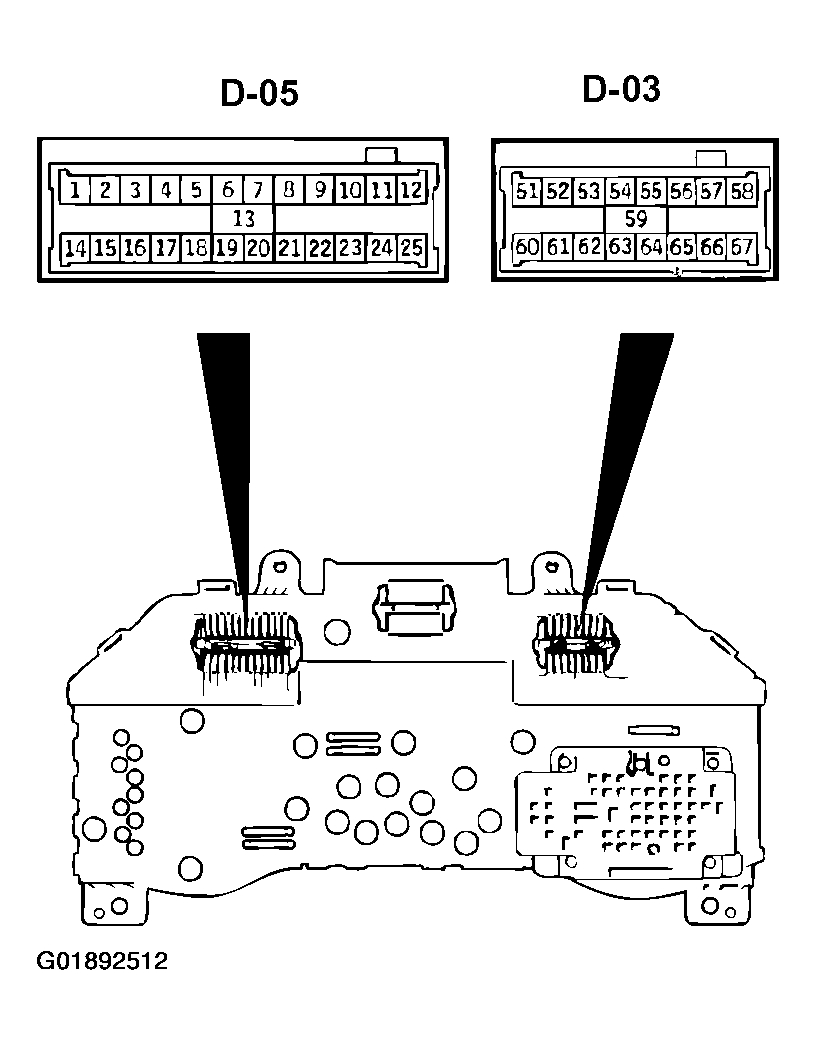

Fig 1: Identifying Combination Meter Internal Resistance Terminal

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

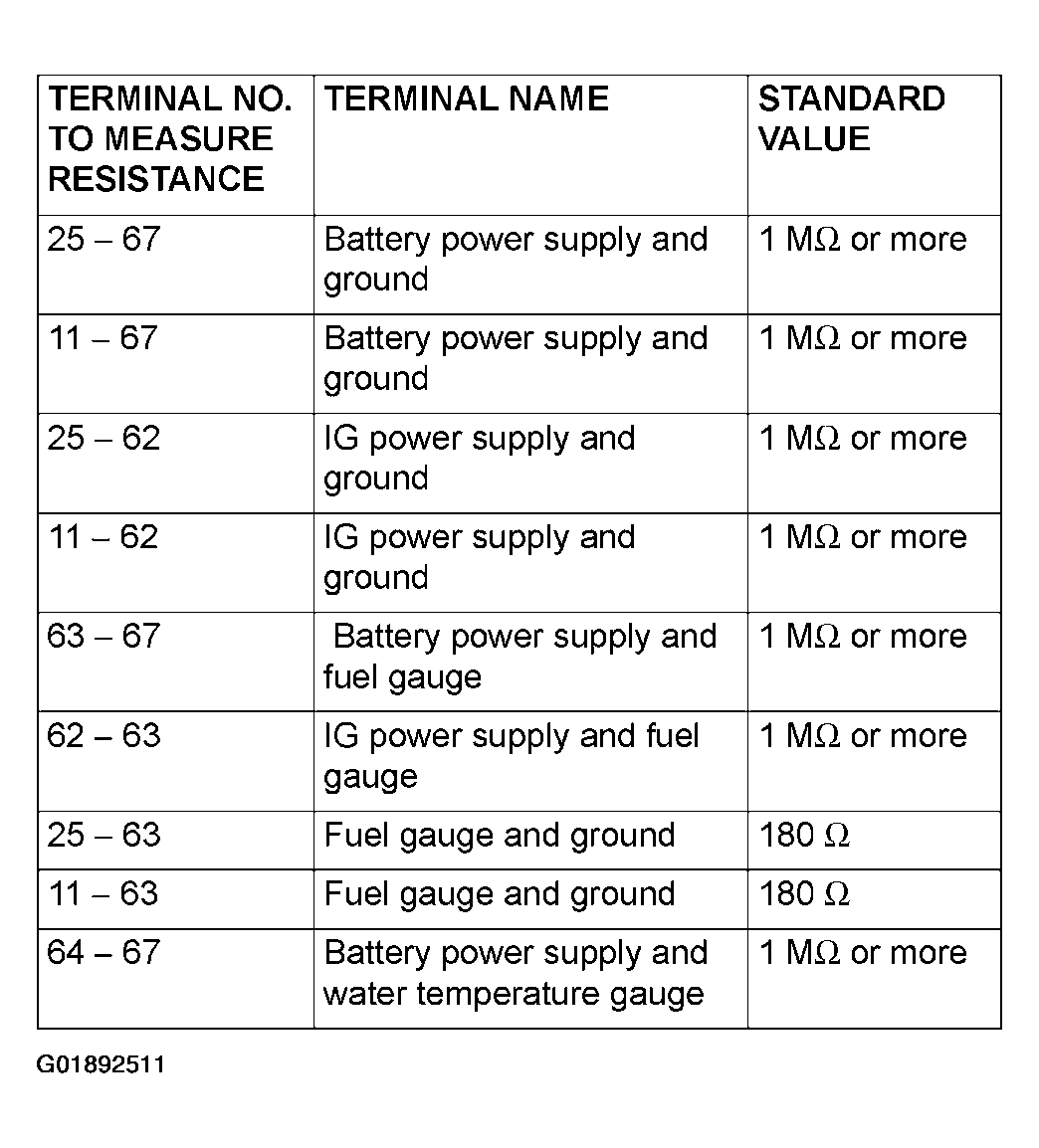

Fig 2: Resistance And Terminals Standard Value (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

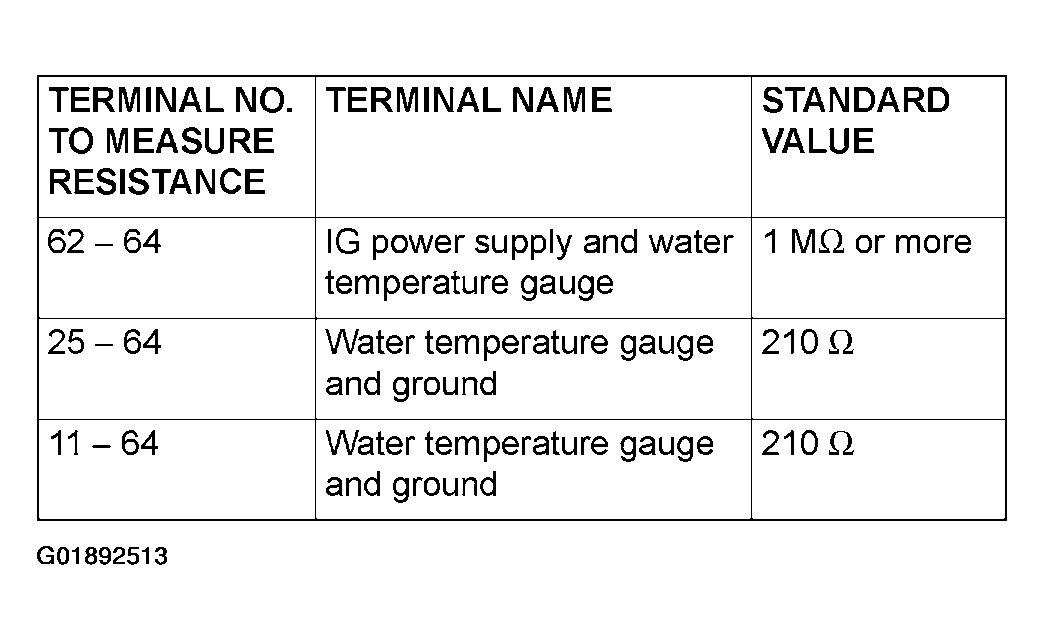

Fig 3: Resistance And Terminals Standard Value (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
