Step 3: Measure At Fuel Gauge Unit Connector D-10 In Order To The Ground Circuit To The Fuel Gauge Unit

1. Disconnect fuel gauge unit connector D-10, and measure at the wiring harness side.
2. Measure the resistance value between terminal No. 2 and ground. See Fig 1 . The measured value should be 2 ohms or less.

Does the measured resistance value correspond with this range?

• YES

  Go to step 6  .
• NO

  Go to step 4  .

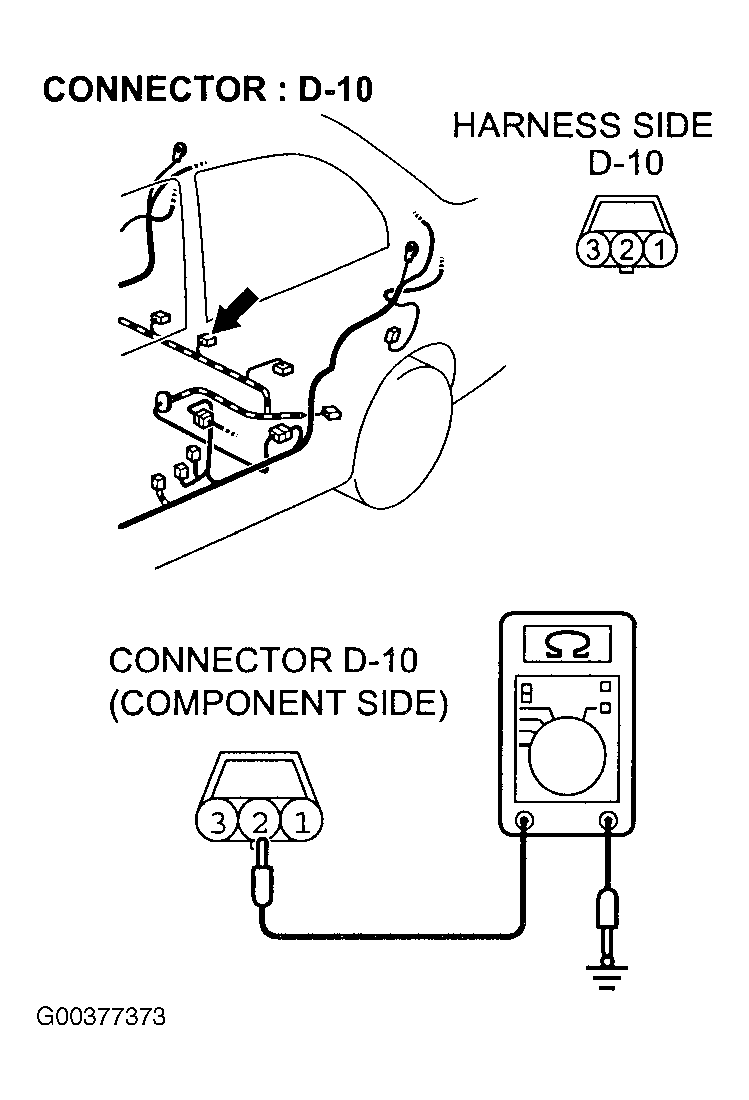

Fig 1: Measuring Resistance Between Connector D-10 Terminal No. 2 & Ground

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
