Circuit Diagram & Connector Identification

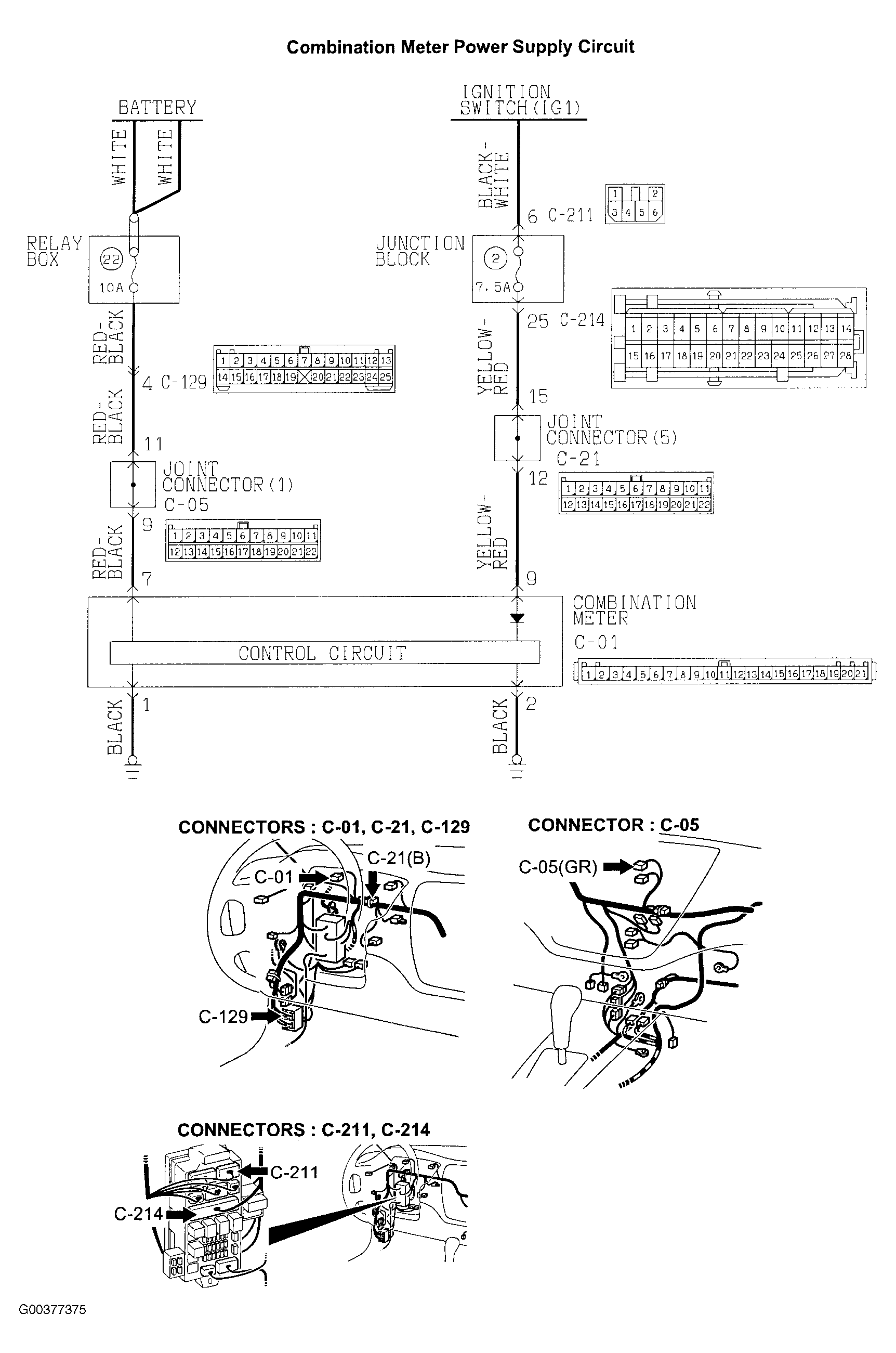

Fig 1: Combination Meter Power Supply Circuit Diagram & Connector Identification

G00377375

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
