Circuit Diagram & Connector Identification

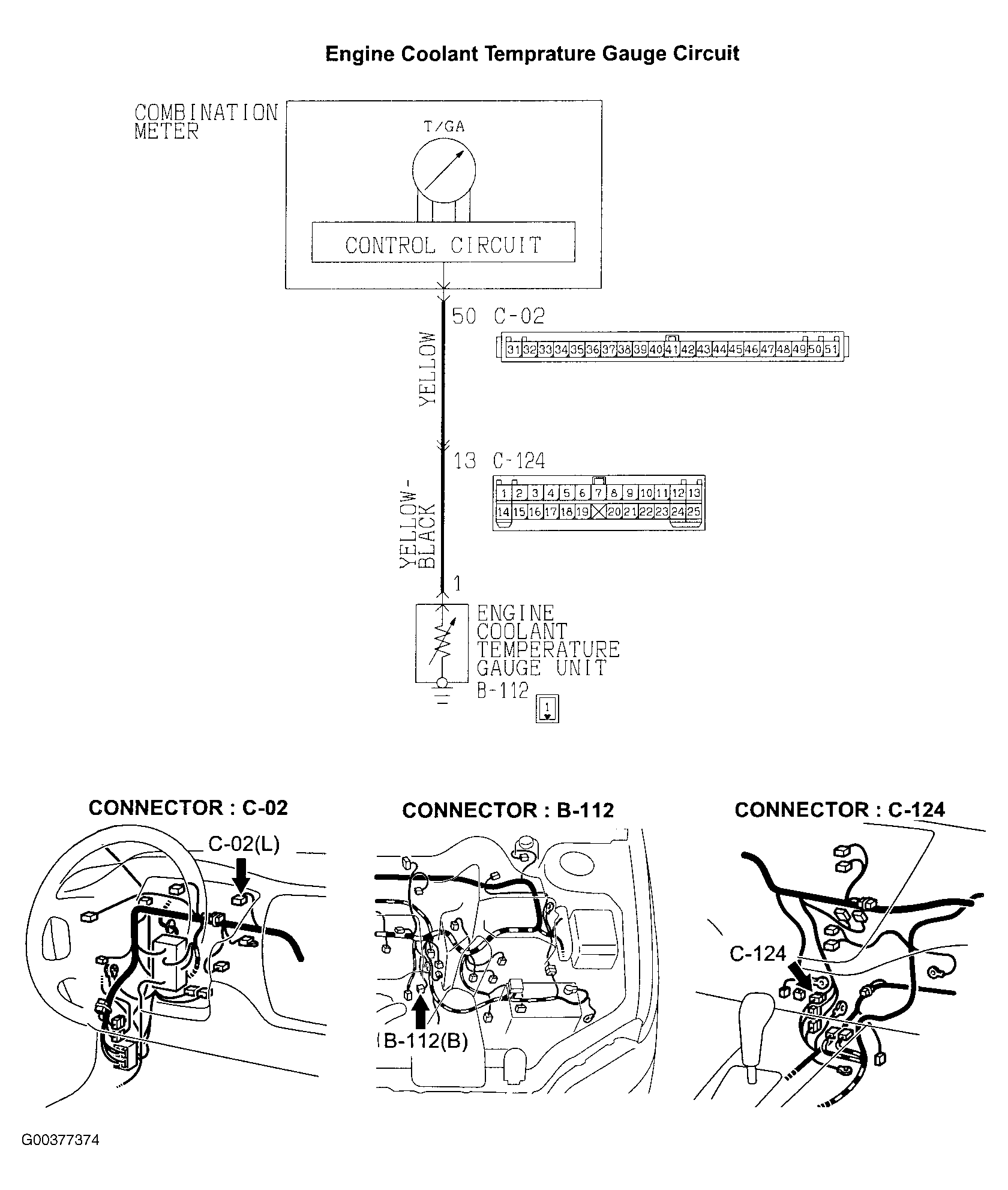

Fig 1: Engine Coolant Temperature Gauge Circuit Diagram & Connector Identification

G00377374

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
