Circuit Diagram & Connector Identification

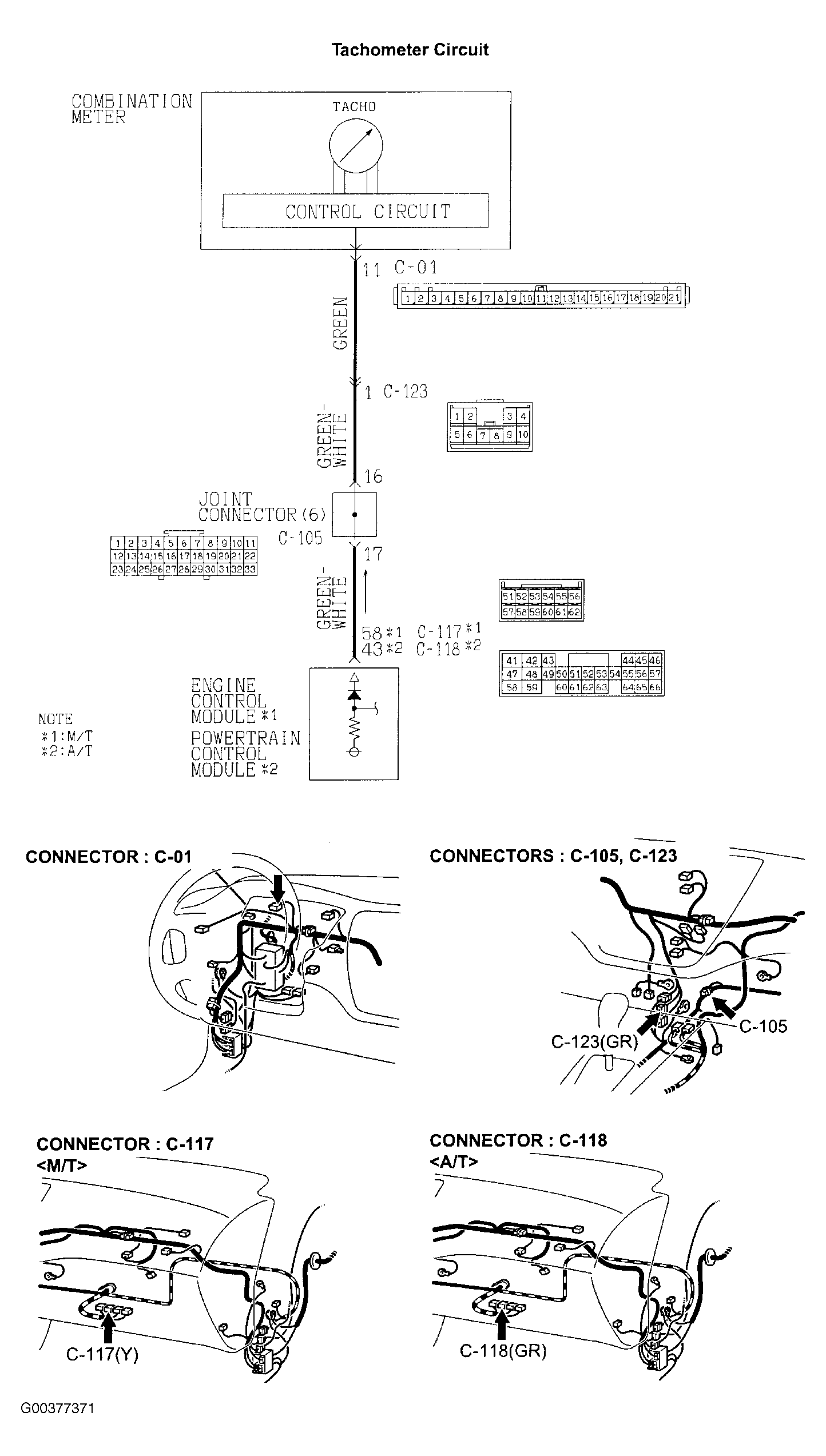

Fig 1: Tachometer Circuit Diagram & Connector Identification

G00377371

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
