Inspection Procedure 2: Speedometer Does Not Work
>>
Circuit Diagram
Circuit Diagram

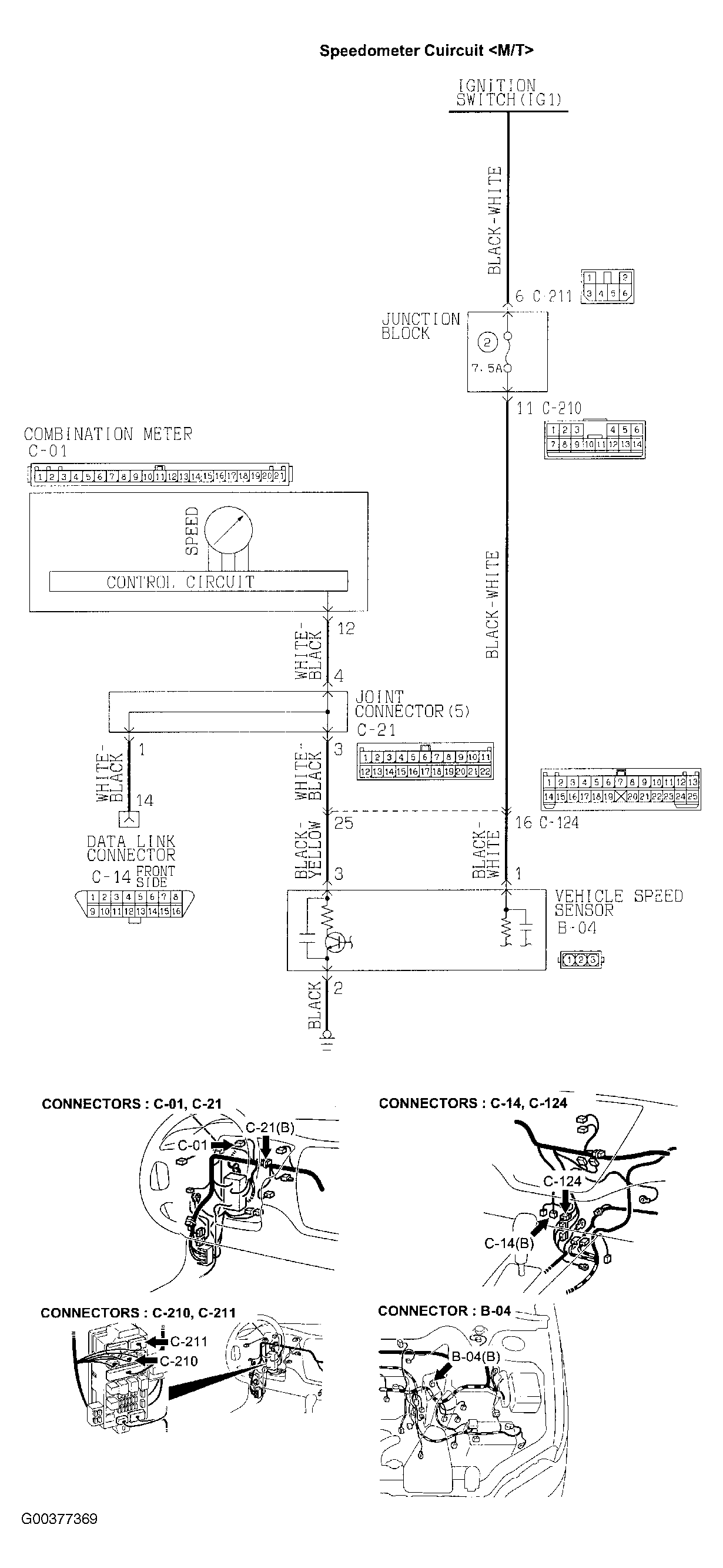

Fig 1: Speedometer Circuit Diagram (M/T) & Connector Identification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
