Circuit Diagram & Connector Identification

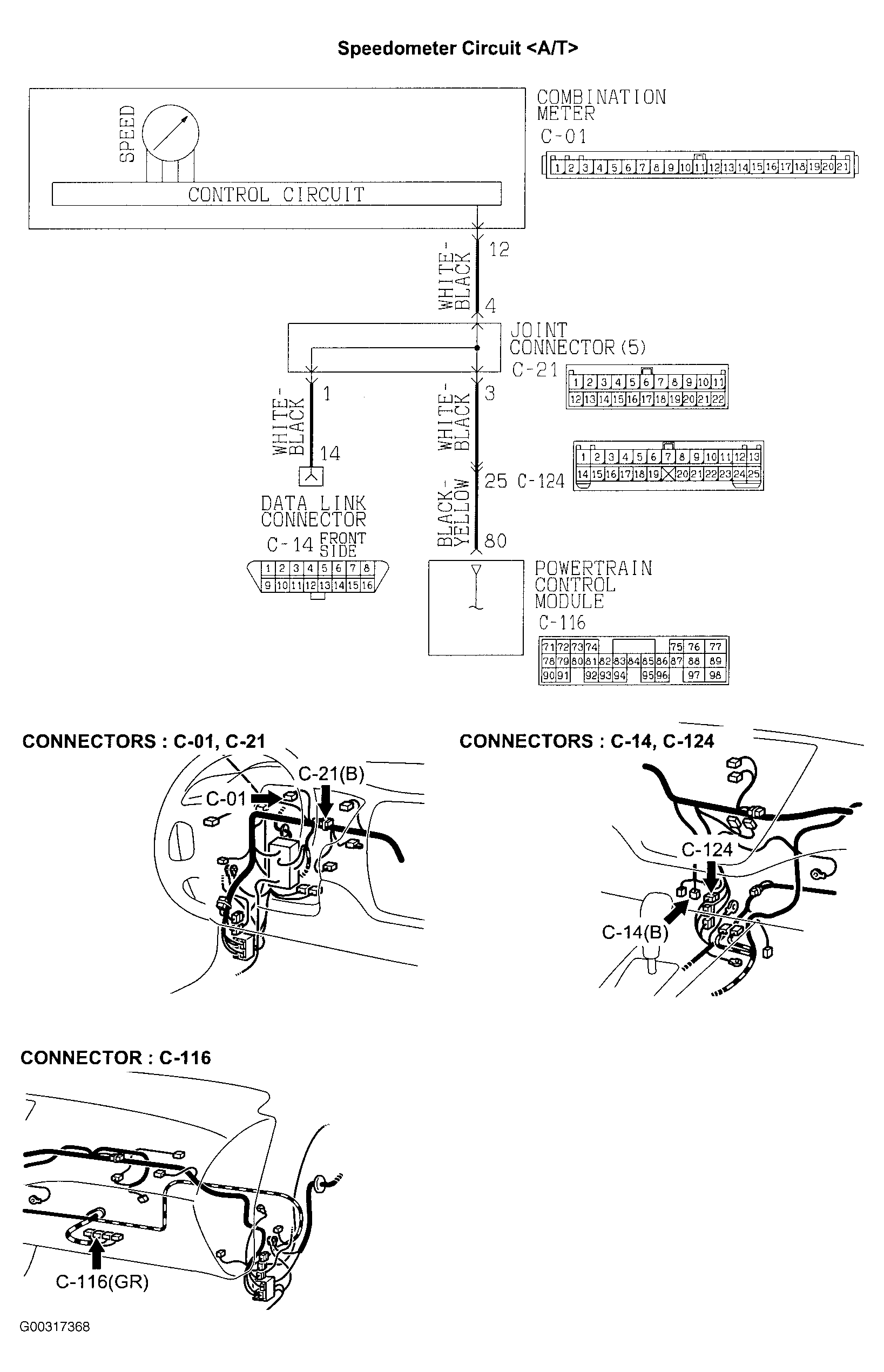

Fig 1: Speedometer Circuit Diagram (A/T) & Connector Identification

G00377368

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
