Combination Meters Assembly & Vehicle Speed Sensor

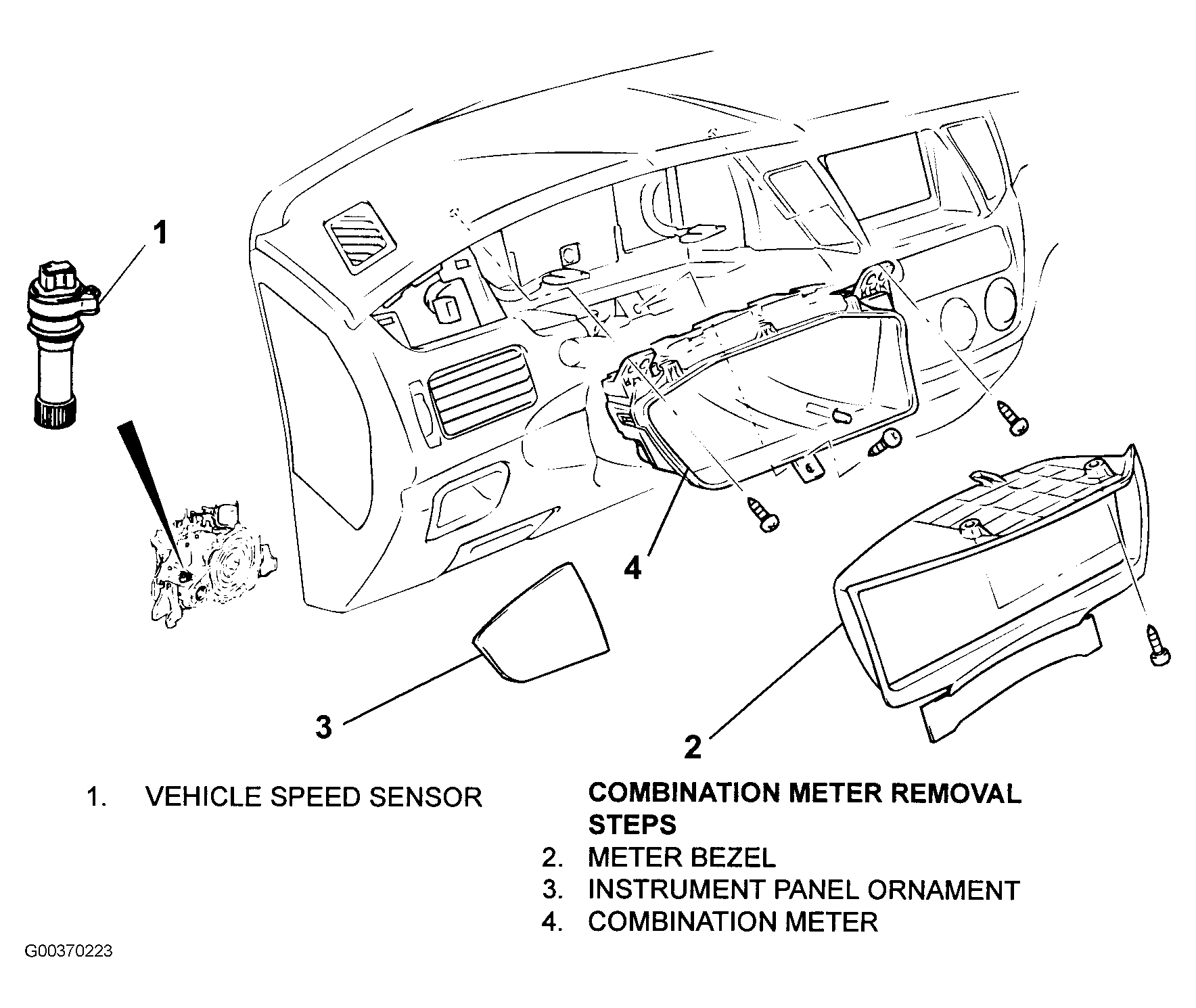

Fig 1: Removing & Installing Combination Meter Assembly
G00370223Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
