Combination Meter Internal Resistance Check

Use circuit tester to measure combination meter internal resistance. See Fig 1 .

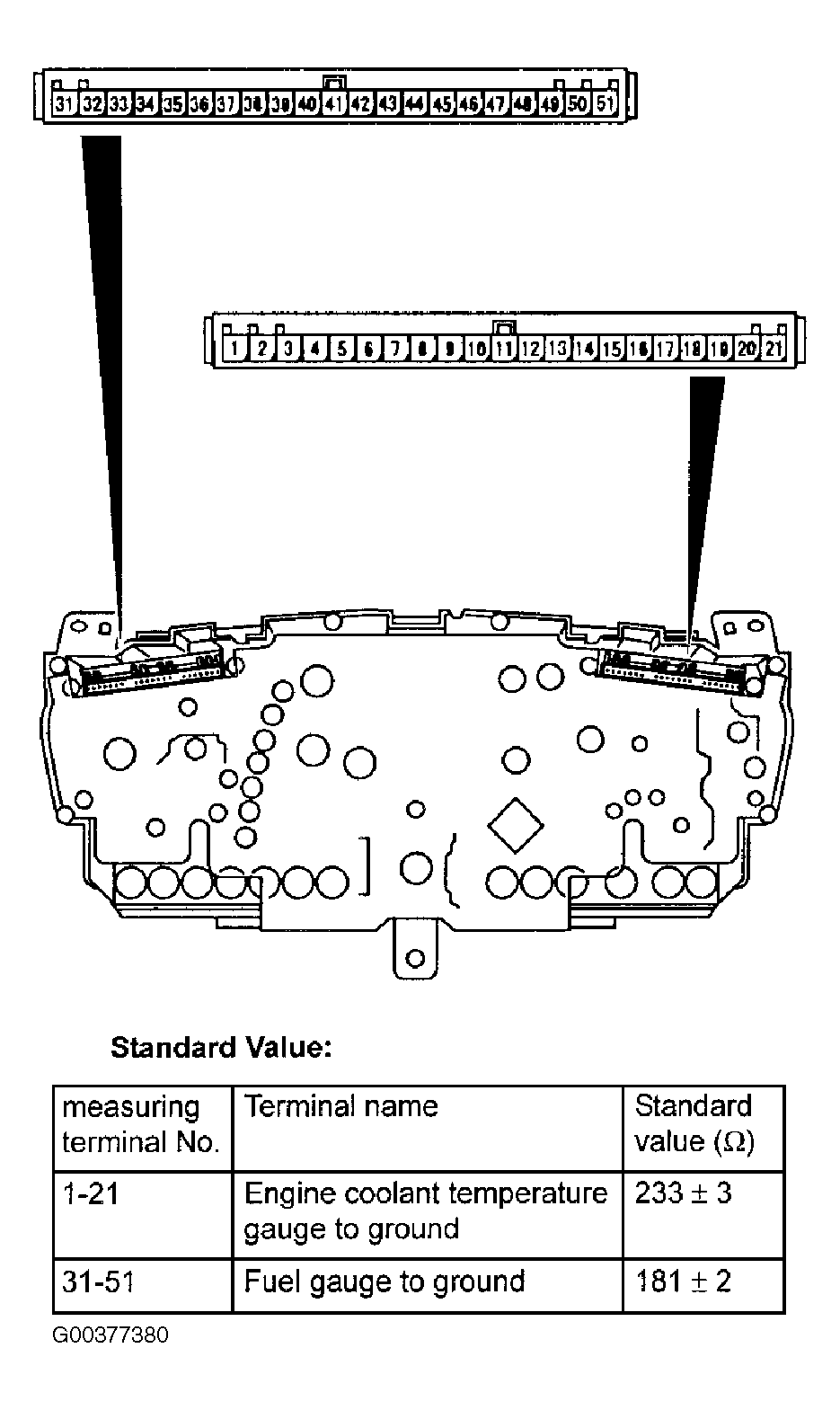

Fig 1: Checking Combination Meter Internal Resistance
G00377380Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
