Fuel Gauge Unit Resistance

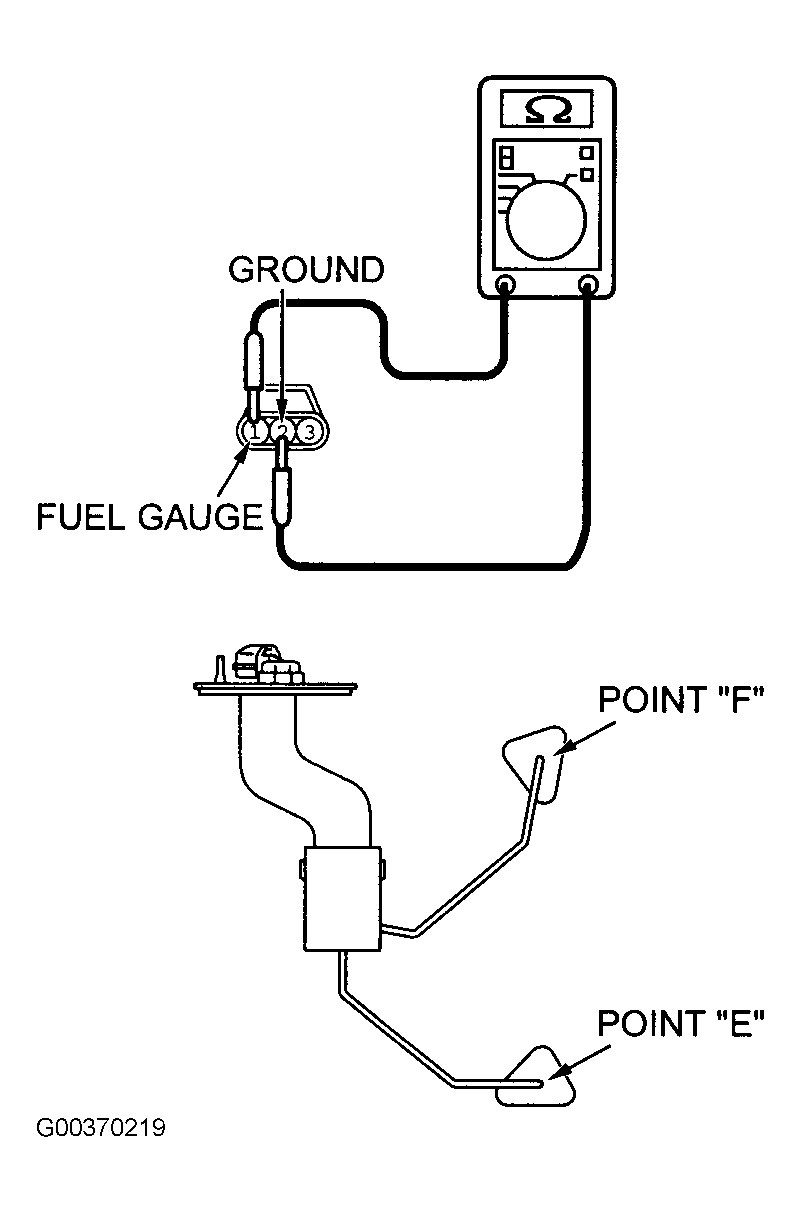

- Check that resistance valve between terminals No. 2 and 1 is at the standard value when the fuel gauge unit float is between point "F" (highest) and point "E" (lowest). See Fig 1
. Standard value at point "F" is 2.2-3.8 ohm. Standard value at point "E" is 107.5-112.5 ohm.
- Check that resistance value changes smoothly when the float moves slowly between point "F" (highest) and point "E" (lowest).
- If all checks are correct, go to fuel gauge unit float height check. If any check is not correct, replace the fuel gauge unit.
