Scan Tool Data

Connect scan tool to Data Link Connector (DLC) and monitor PCM data. Select data list items to monitor operating parameters. See Fig 1 -Fig 6 . Compare actual parameters on scan tool with specifications. If parameters do not match specifications, diagnose system or circuit and repair as necessary.

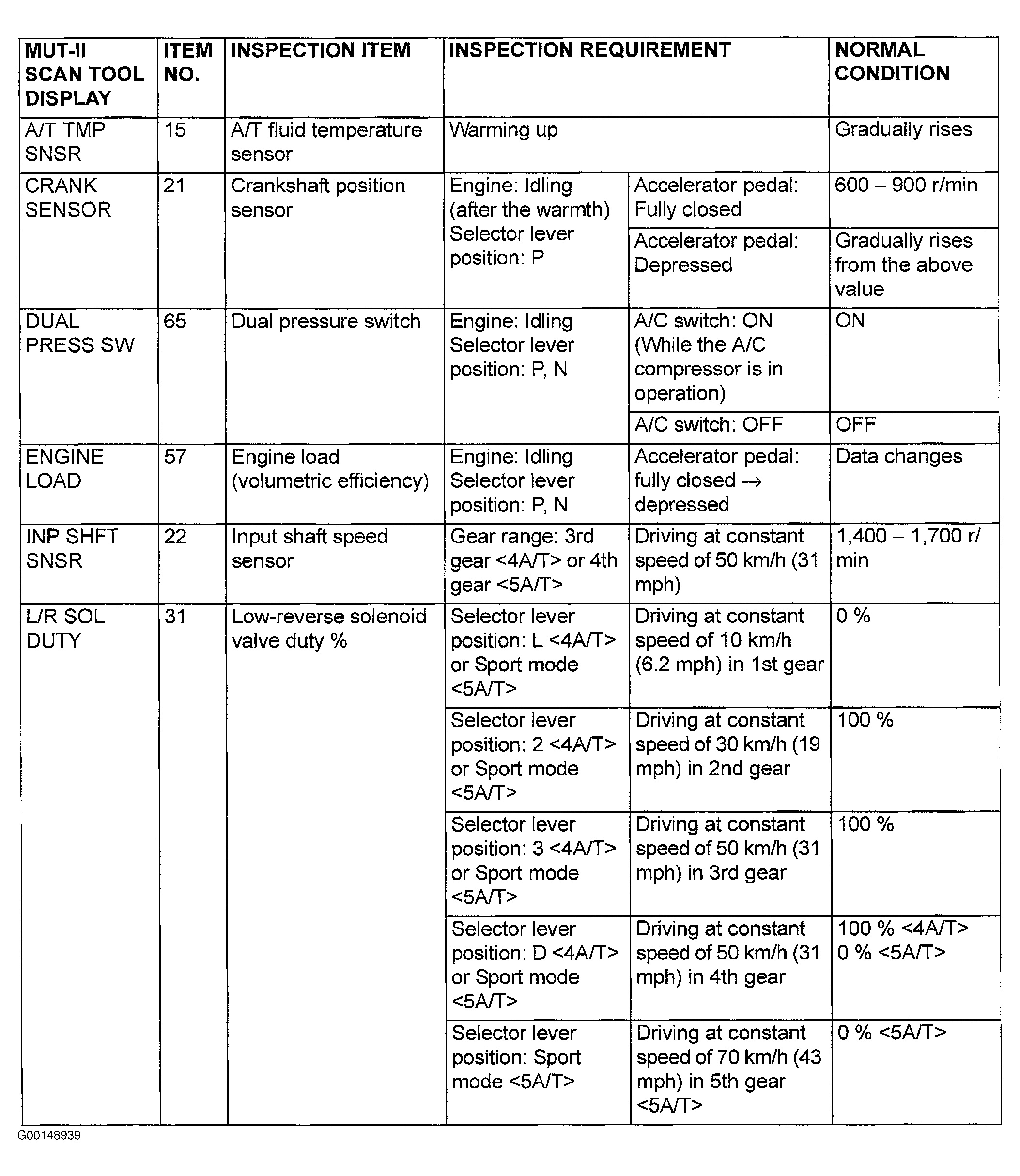

Fig 1: Scan Tool Data List (1 Of 6)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

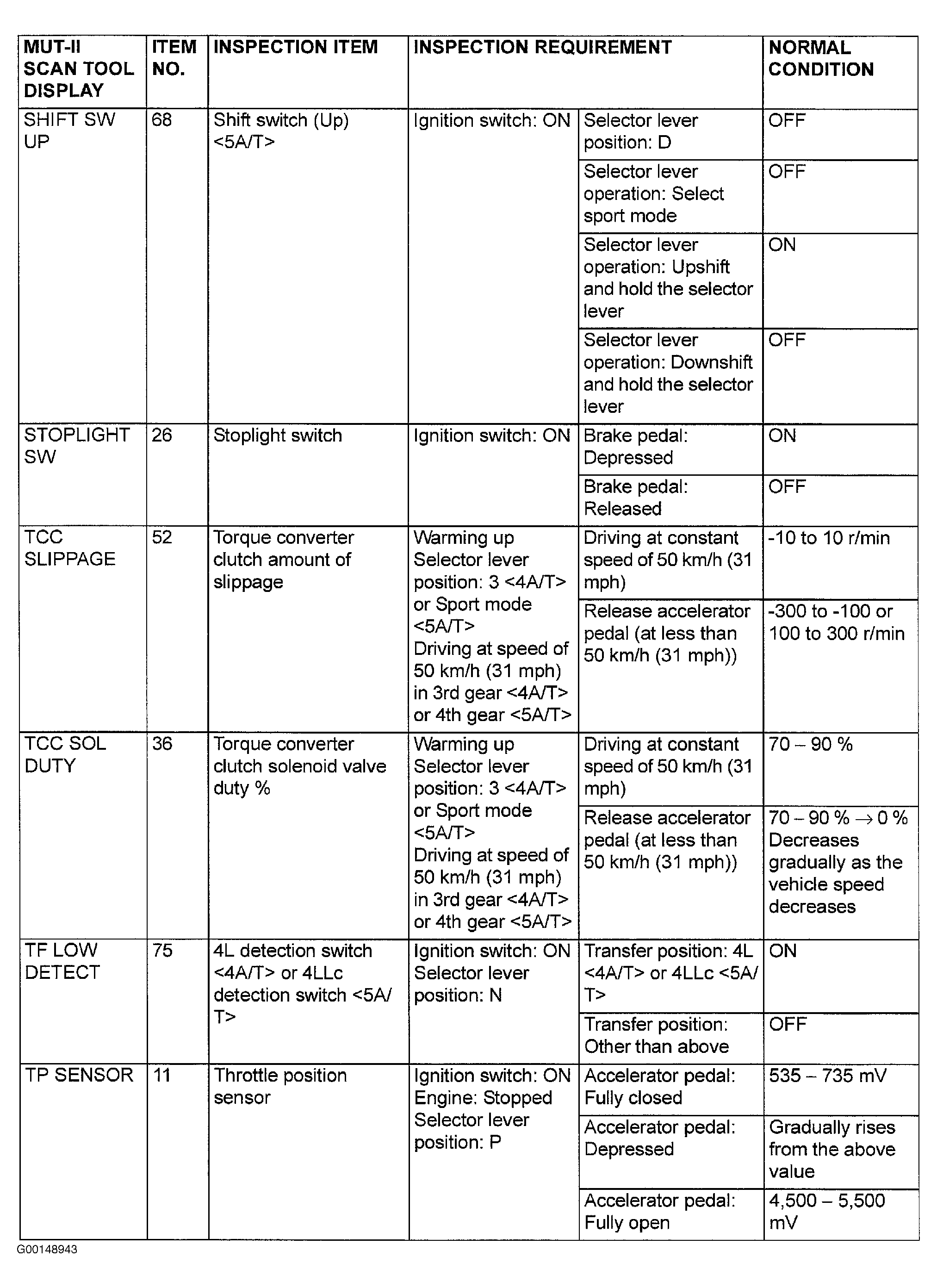

Fig 2: Scan Tool Data List (2 Of 6)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

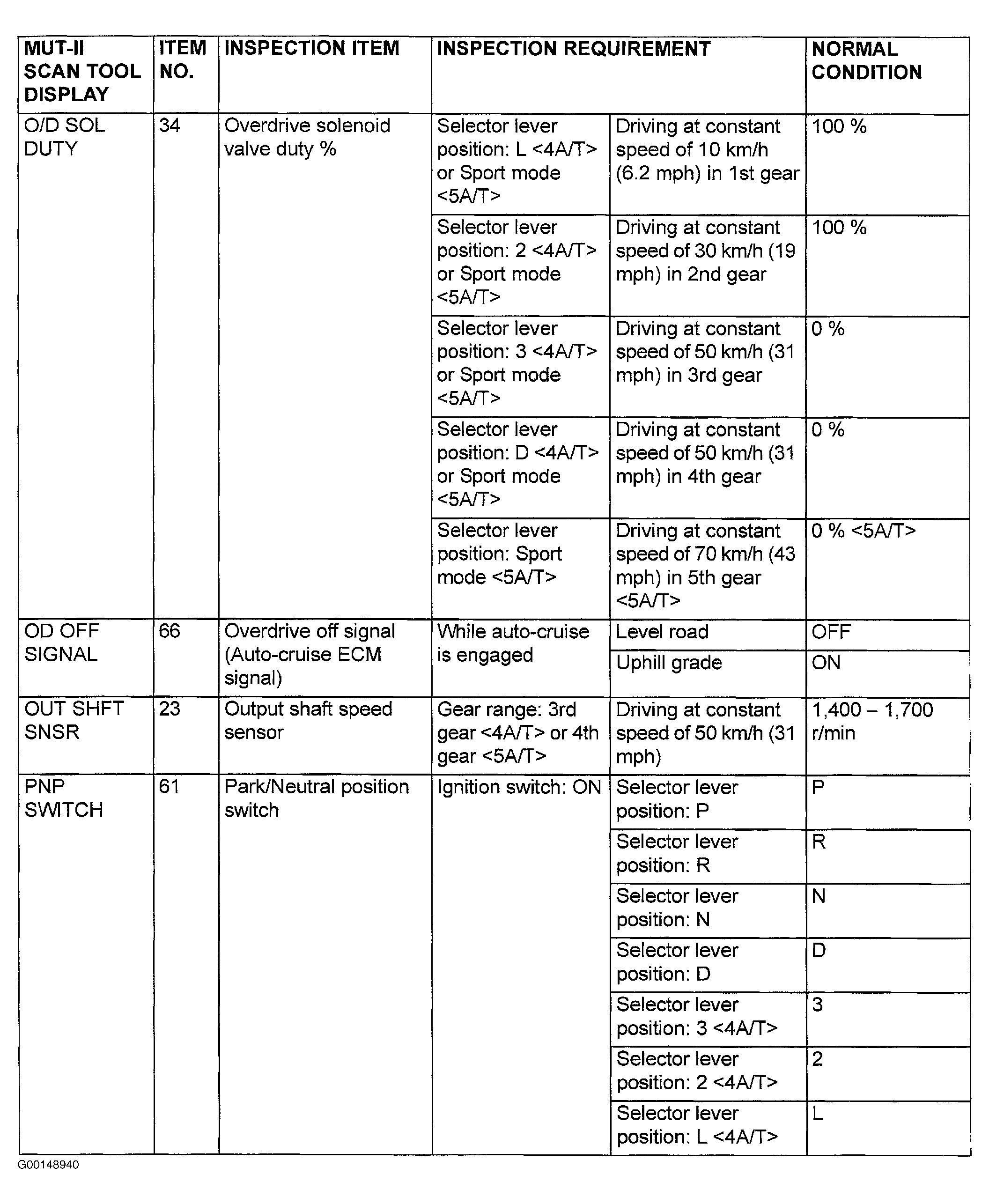

Fig 3: Scan Tool Data List (3 Of 6)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

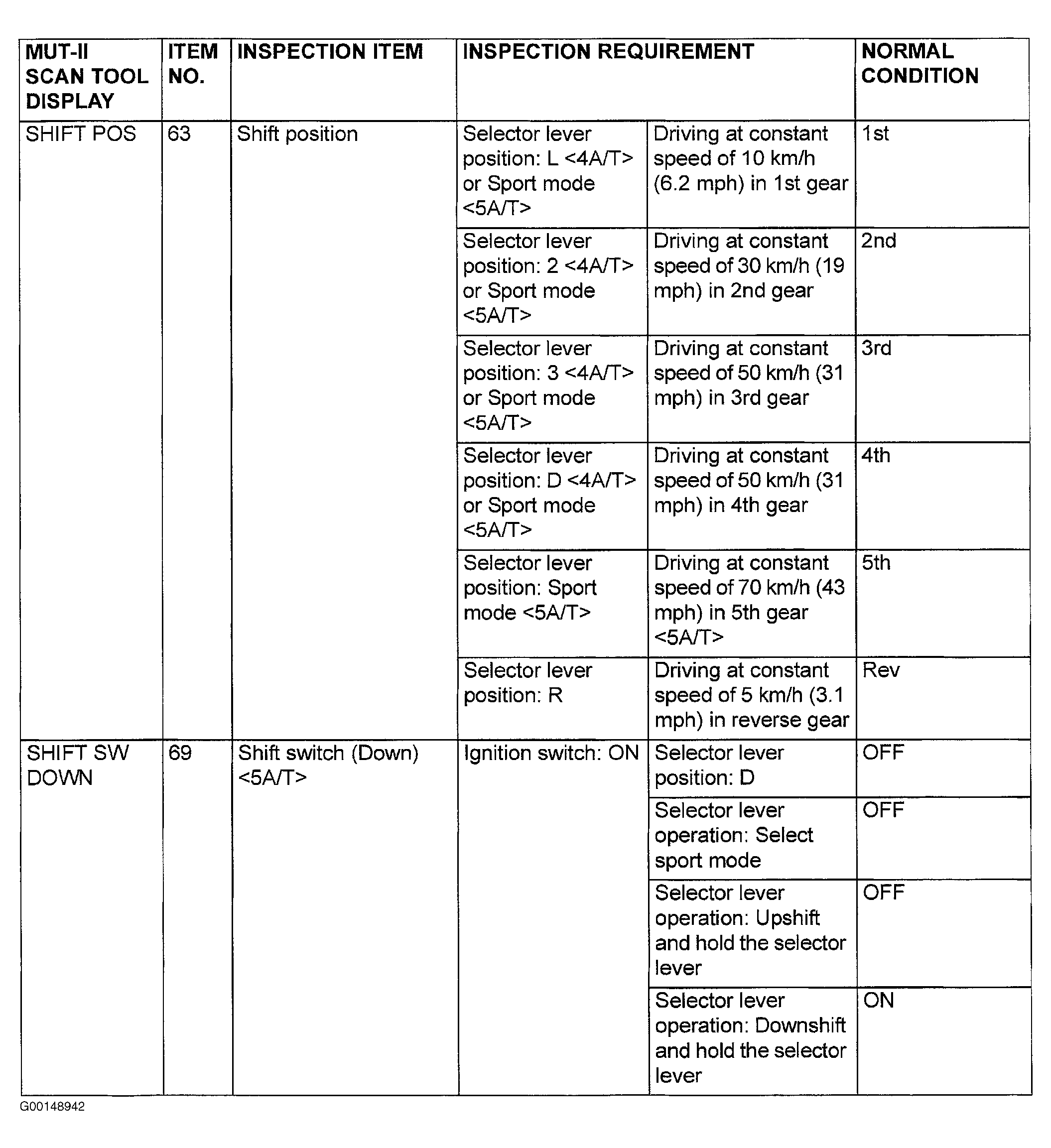

Fig 4: Scan Tool Data List (4 Of 6)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

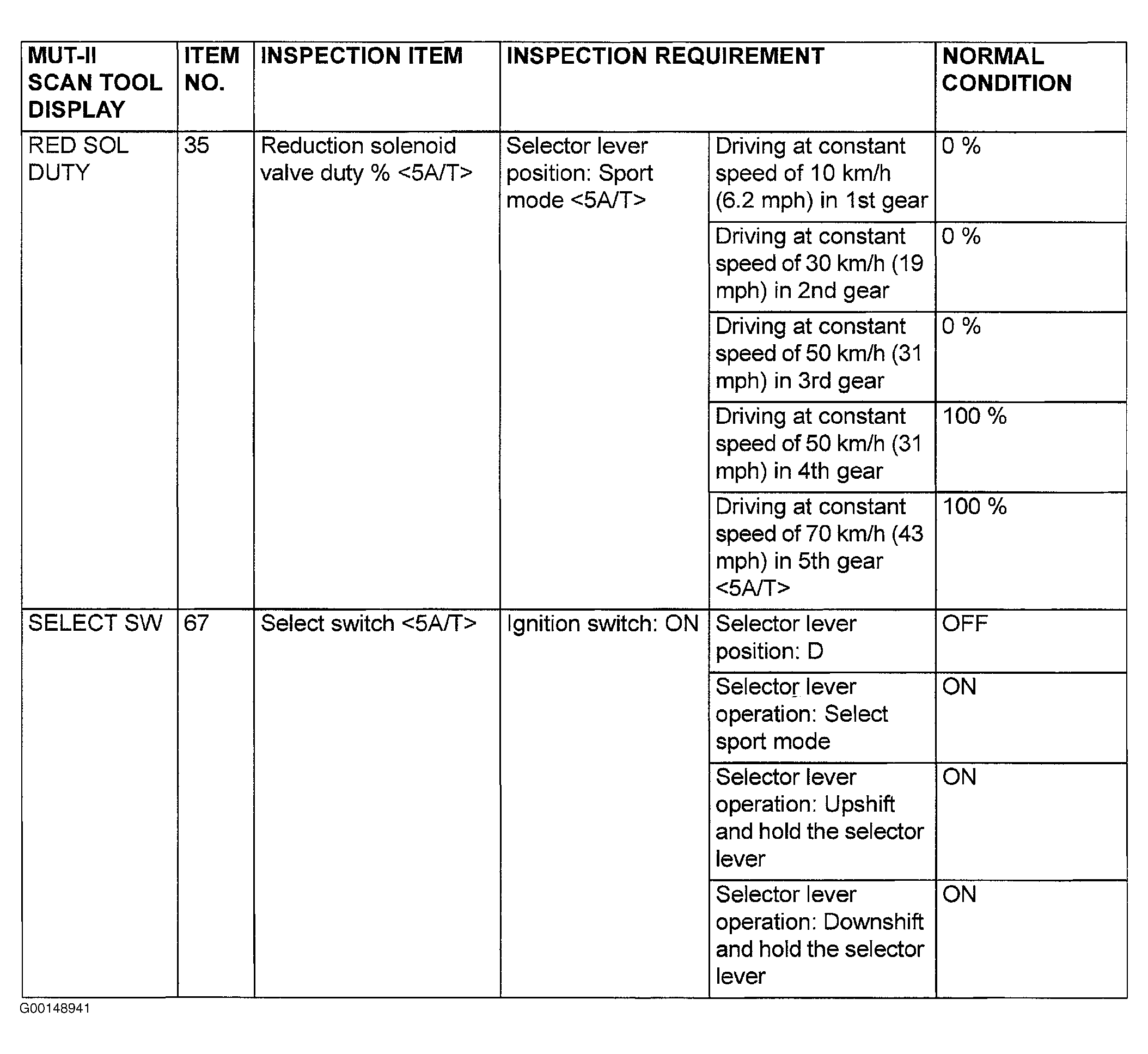

Fig 5: Scan Tool Data List (5 Of 6)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

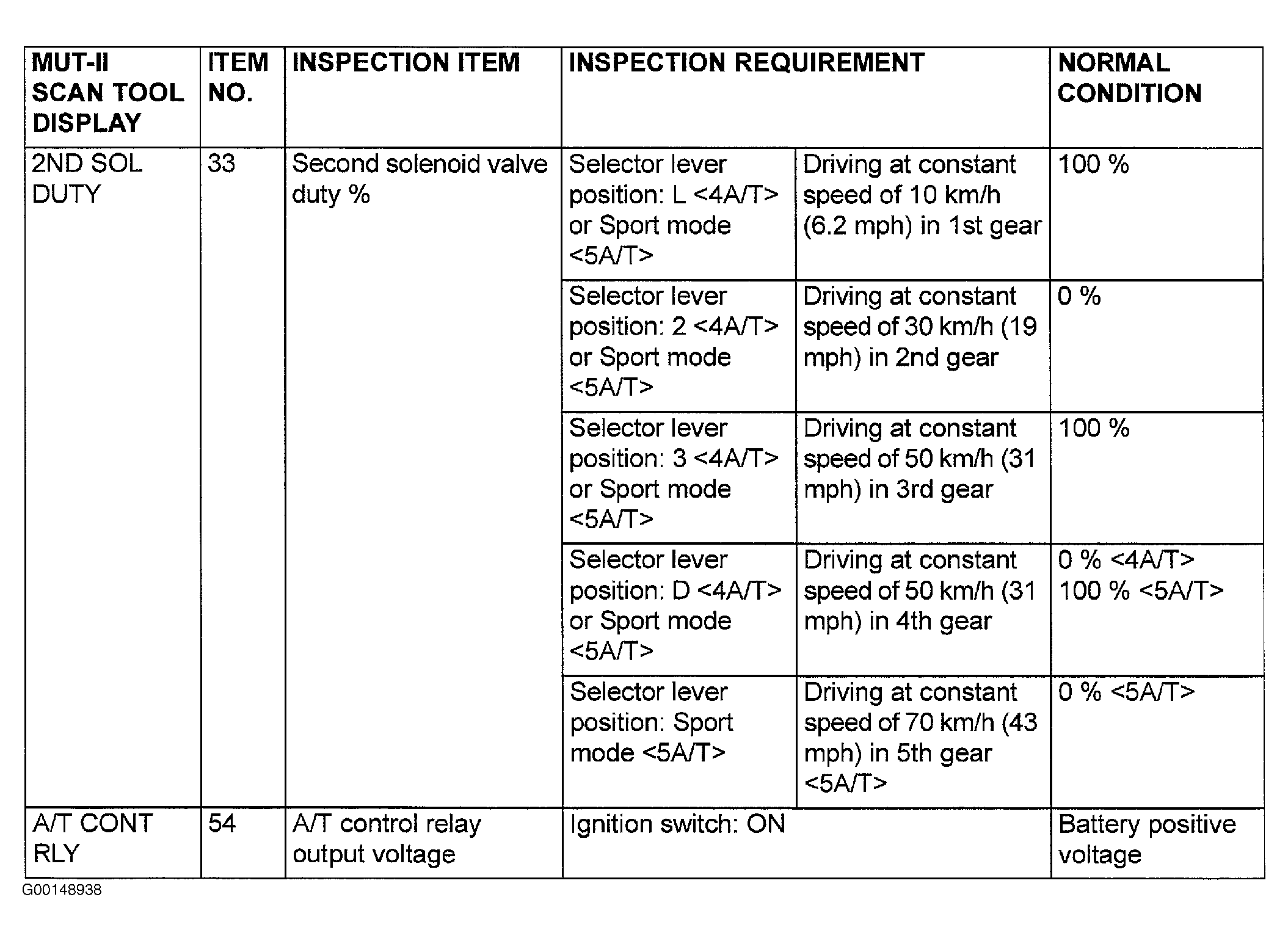

Fig 6: Scan Tool Data List (6 Of 6)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
