Pin Voltage Tests

NOTE: Using a DVOM, check PCM circuit operation by backprobing PCM harness connector terminals under specified conditions. See Fig 1 -Fig 4 .

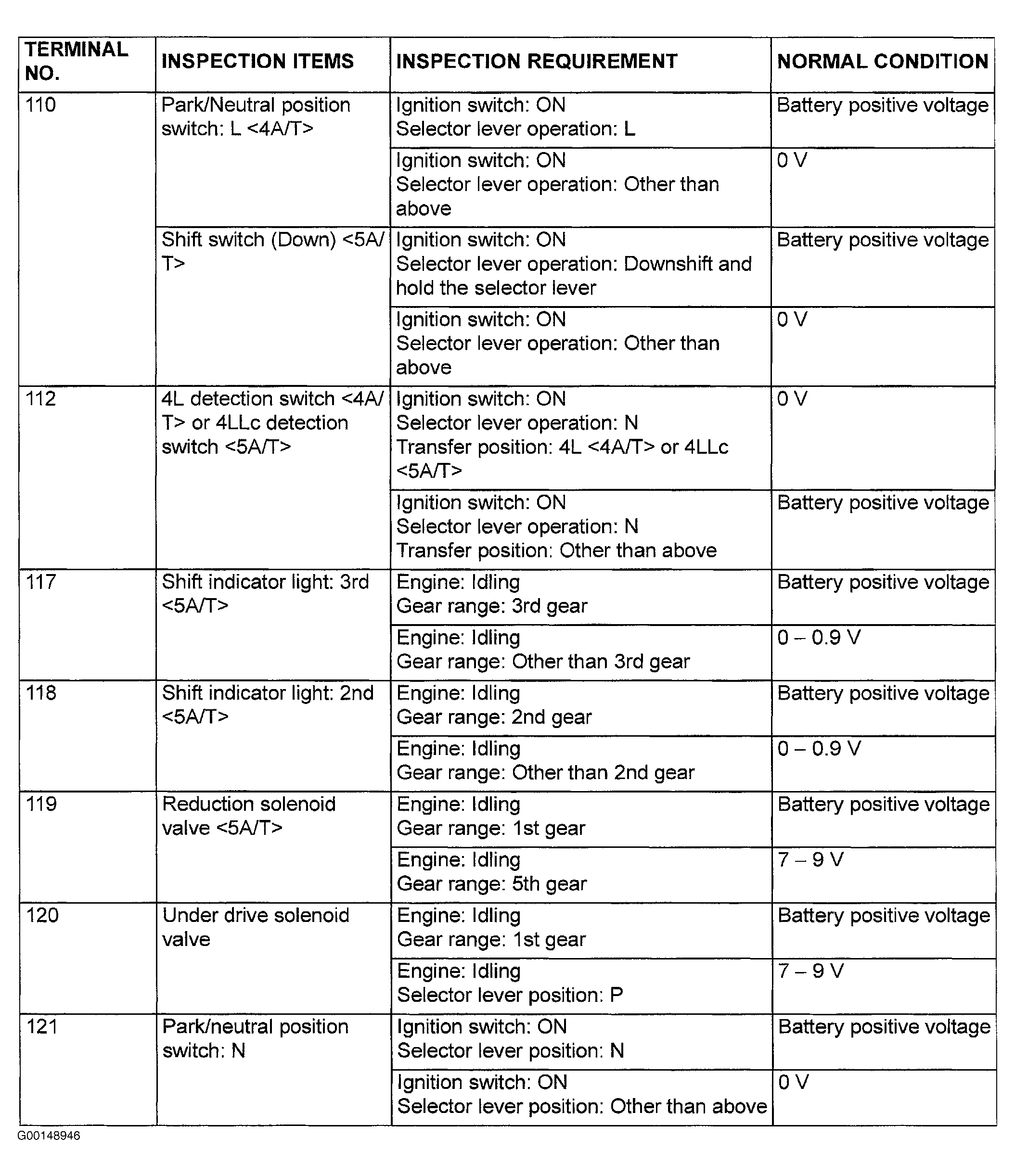

Fig 1: PCM Pin Voltage Tests (1 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: PCM Pin Voltage Tests (2 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

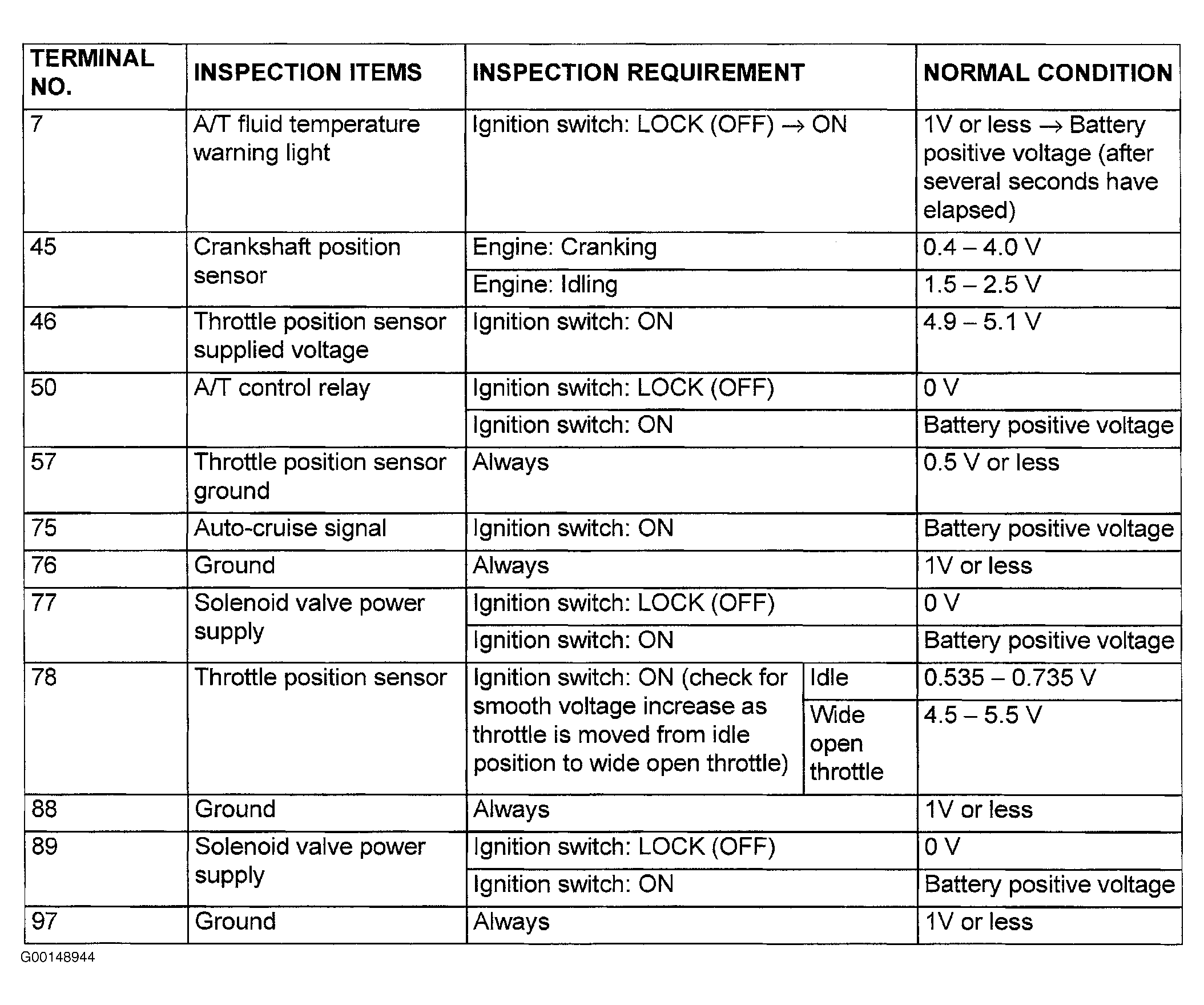

Fig 3: PCM Pin Voltage Tests (3 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

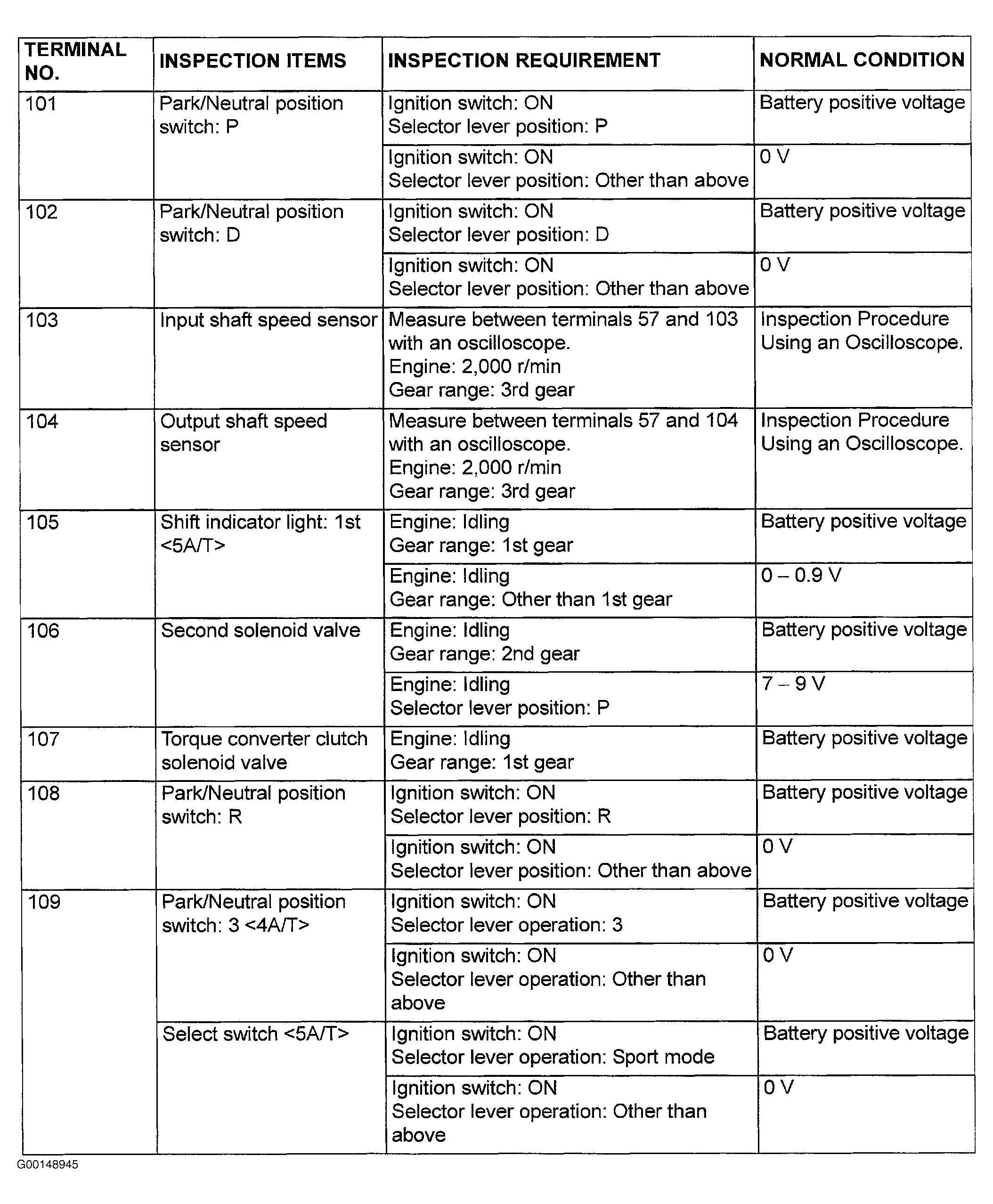

Fig 4: PCM Pin Voltage Tests (4 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
