Shift Speed Specifications

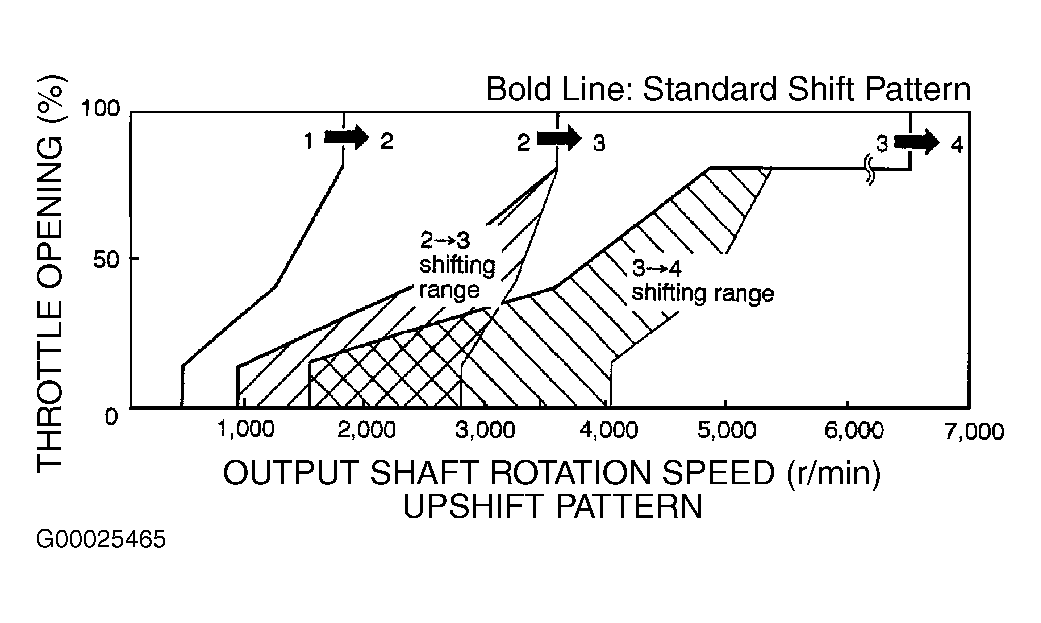

Fig 1: Identifying Transmission Upshift Points (3.0L - R4A51/V4A51)
G00025465Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: Identifying Transmission Downshift Points (3.0L - R4A51/V4A51)
G00025466Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 3: Identifying Transmission Upshift Points (3.5L - R4A51/V4A51)
G00025468Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 4: Identifying Transmission Downshift Points (3.5L - R4A51/V4A51)
G00025469Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 5: Identifying Transmission Upshift Points (3.5L - V5A51)
G00164222Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 6: Identifying Transmission Downshift Points (3.5L - V5A51)
G00164223Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
