Fail-Safe Mode

When malfunctions of the main sensors or actuators are detected by the PCM, the transmission is controlled by pre-set control logic to maintain safe conditions for driving. See Fig 1 .

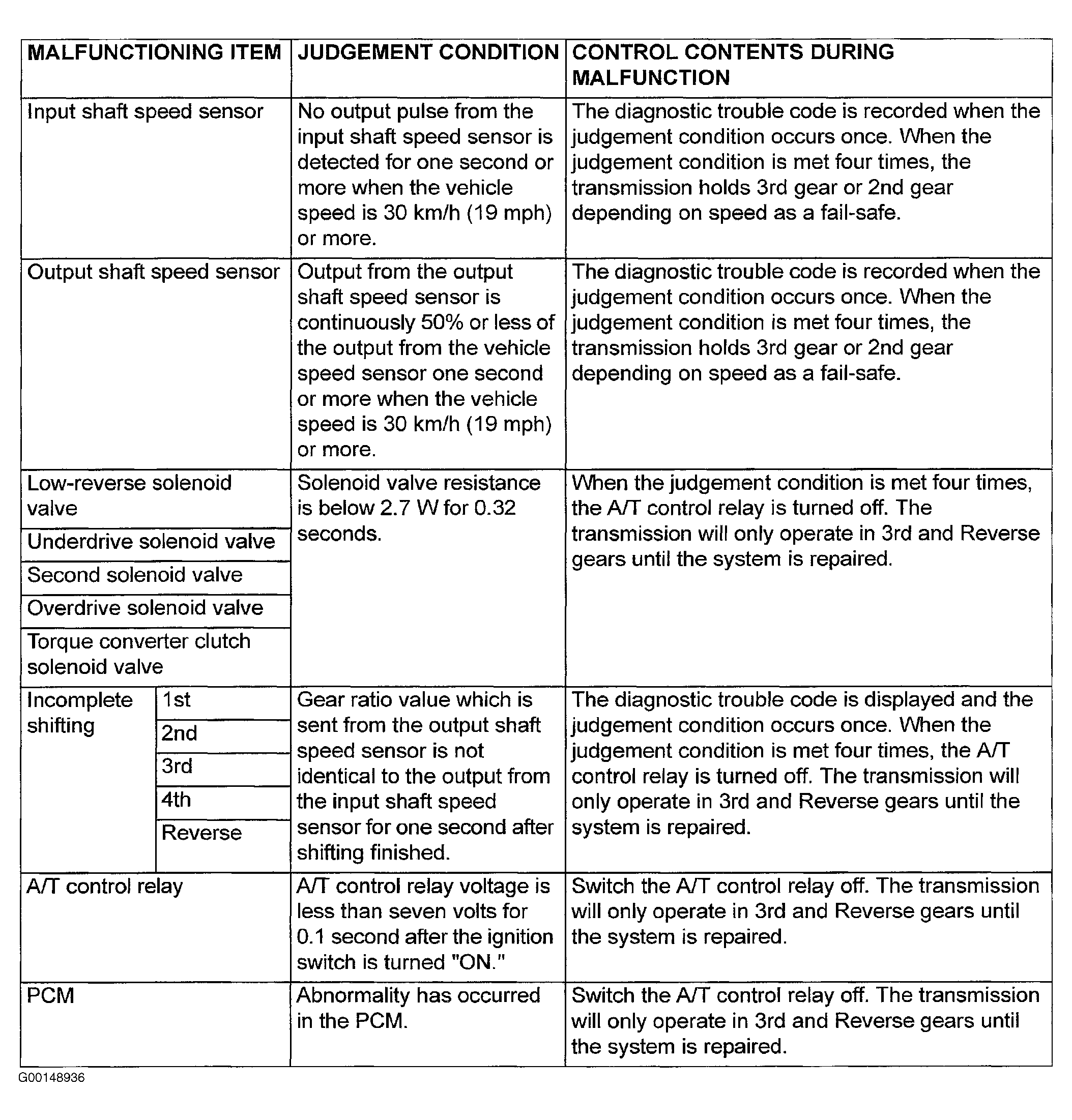

Fig 1: Fail-Safe & Backup Functions

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
