Shift Switch Assembly

NOTE: Shift switch assembly is on vehicles equipped with sport mode.

Disconnect shift switch assembly harness connector. Check for continuity between shift switch terminals in specified gear range. See SHIFT SWITCH ASSEMBLY CONTINUITY SPECIFICATIONS table. Replace shift switch assembly if continuity is not as specified.

SHIFT SWITCH ASSEMBLY CONTINUITY SPECIFICATIONS

Switch Position

⁽¹⁾ Continuity Between Terminals No.

Upshift

3 & 7

Off

None

Downshift

3 & 8

Off

None

Select Switch

1 & 4

Off

1 & 5

⁽¹⁾	See Fig 1 .

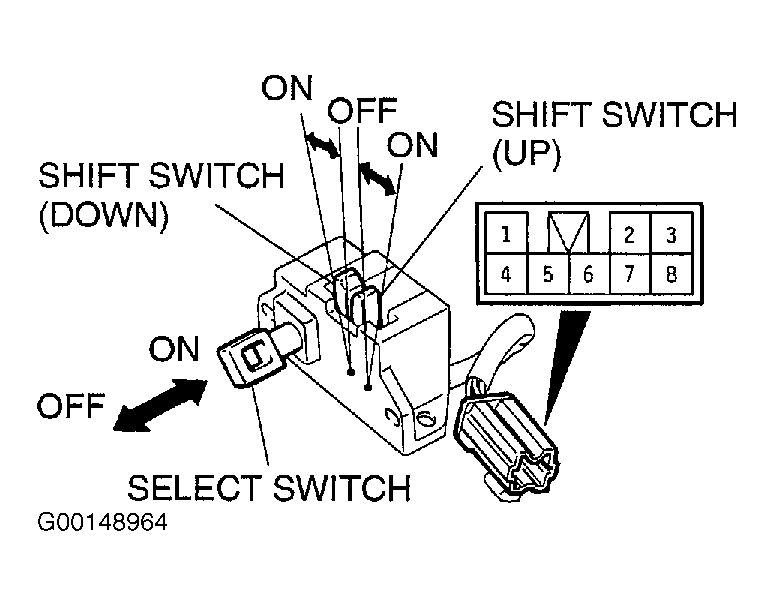

Fig 1: Testing Shift Switch Assembly (Vehicles Equipped With Sport Mode)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
